GEAR DRIVE SYSTEM
5-9GT Series Tractors Service Manual
5

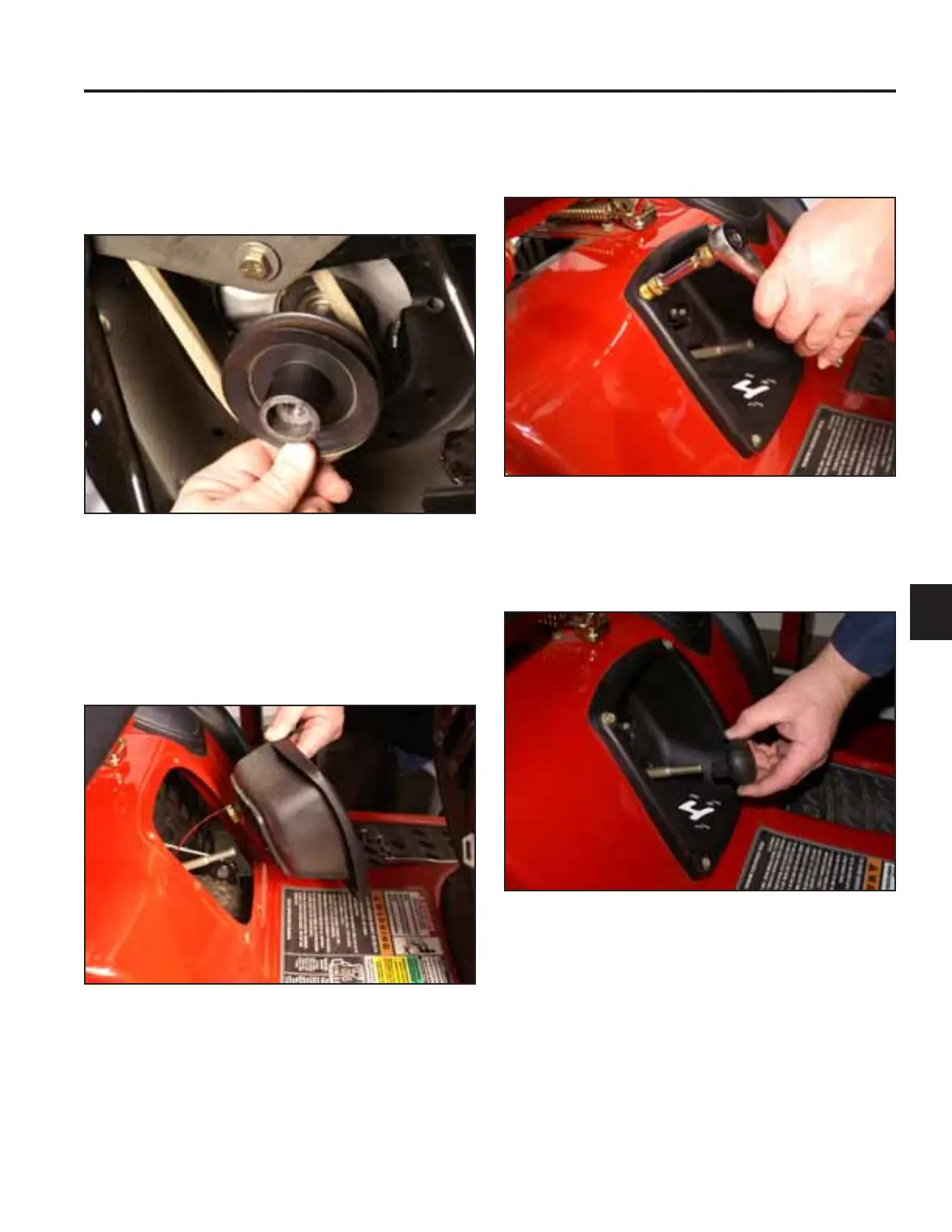

7. Apply anti-seize compound to the crankshaft. Slide
the engine pulley onto the crankshaft and route the
transmission drive belt around the engine pulley
(Fig. 456).
10. Install 4 screws securing the shift cover to the frame
(Fig. 458).
Fig 456 PICT-7497
Fig 458 PICT-7635
11. Slide the shift knob onto the shift lever (Fig. 459).
8. Install the Electric PTO clutch. Refer to “Electric PTO
Clutch Installation” on page 3-30.
9. Slide the shift cover plate into the frame (Fig. 457).
Fig 459 PICT-7632
Fig 457 PICT-7636
12. Install the transmission drive belt. Refer to “Trans-
mission Drive Belt Installation” on page X-XX.
