MOWER DECK
7-38 GT Series Tractors Service Manual
7
54” Mower Deck Roller Adjustment

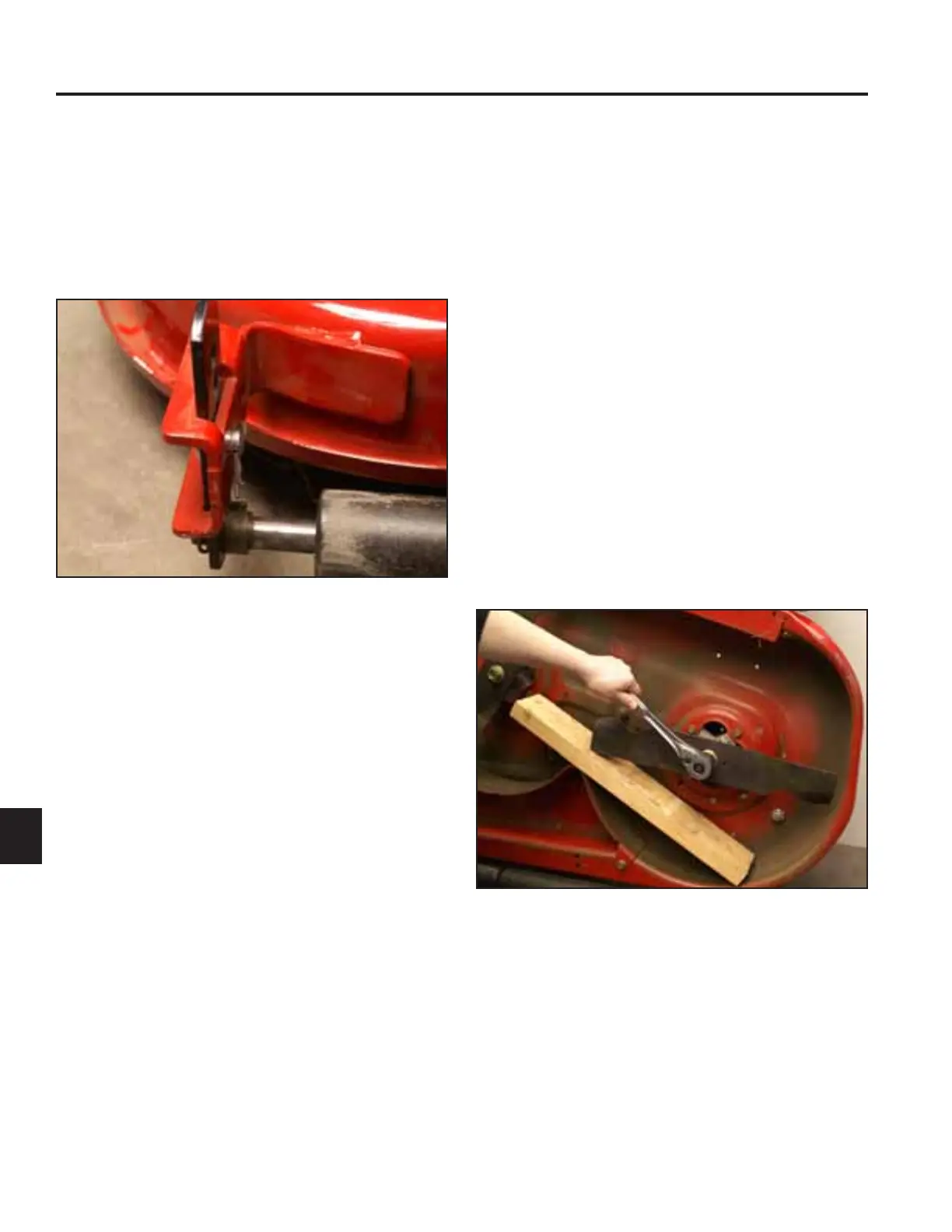

Fig 874 PICT-7929
3. Position the deck roller brackets up or down through
the slots on the rear of the deck until desired position
is reached, then re-attach with the clevis pins and
hairpin cotters just removed.
IMPORTANT: Be certain that the left roller bracket
and the right roller bracket are set in the same
position.
1. Place the deck lift lever in the lowest position.
2. Remove the clevis pin and hairpin cotter from the
deck roller brackets on the left and right sides of the
cutting deck (Fig. 874).
The following procedure was performed on the left hand
spindle assembly. The process is the same for all three
spindle assemblies.
1. Remove the mower deck from the tractor. Refer to
“54” Mower Deck Removal” on page 7-29.
2. Remove the deck belt from the mower deck. Refer to
“54” Mower Deck Belt Removal” on page 7-23.
3. Turn the mower deck over to access the underside
of the mower deck.
4. Block the mower deck blade and remove the nut
securing the mower deck blade to the spindle shaft
(Fig. 875).
Fig 875 PICT-7882
54” Mower Deck Spindle
Replacement
54” Mower Deck Spindle Removal
To Next Page
