MOWER DECK
7-39GT Series Tractors Service Manual
7

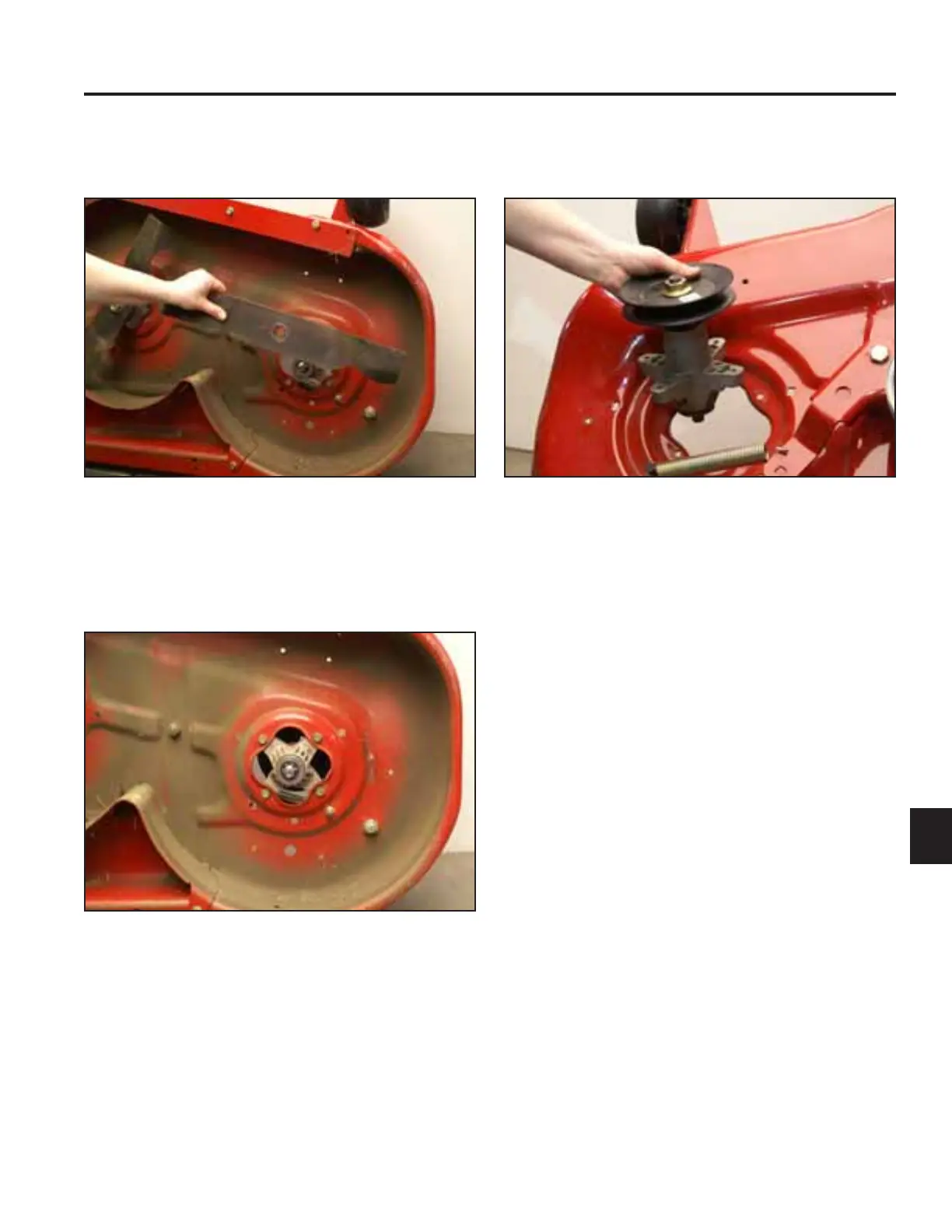

5. Remove the mower deck blade from the spindle
shaft (Fig. 876).
7. Remove the spindle assembly from the mower deck
(Fig. 878).
Fig 876 PICT-7883 Fig 878 PICT-7889
6. Remove the 4 screws securing the spindle assembly
to the mower deck (Fig 877).
Fig 877 PICT-7884
