MOWER DECK
7-35GT Series Tractors Service Manual
7

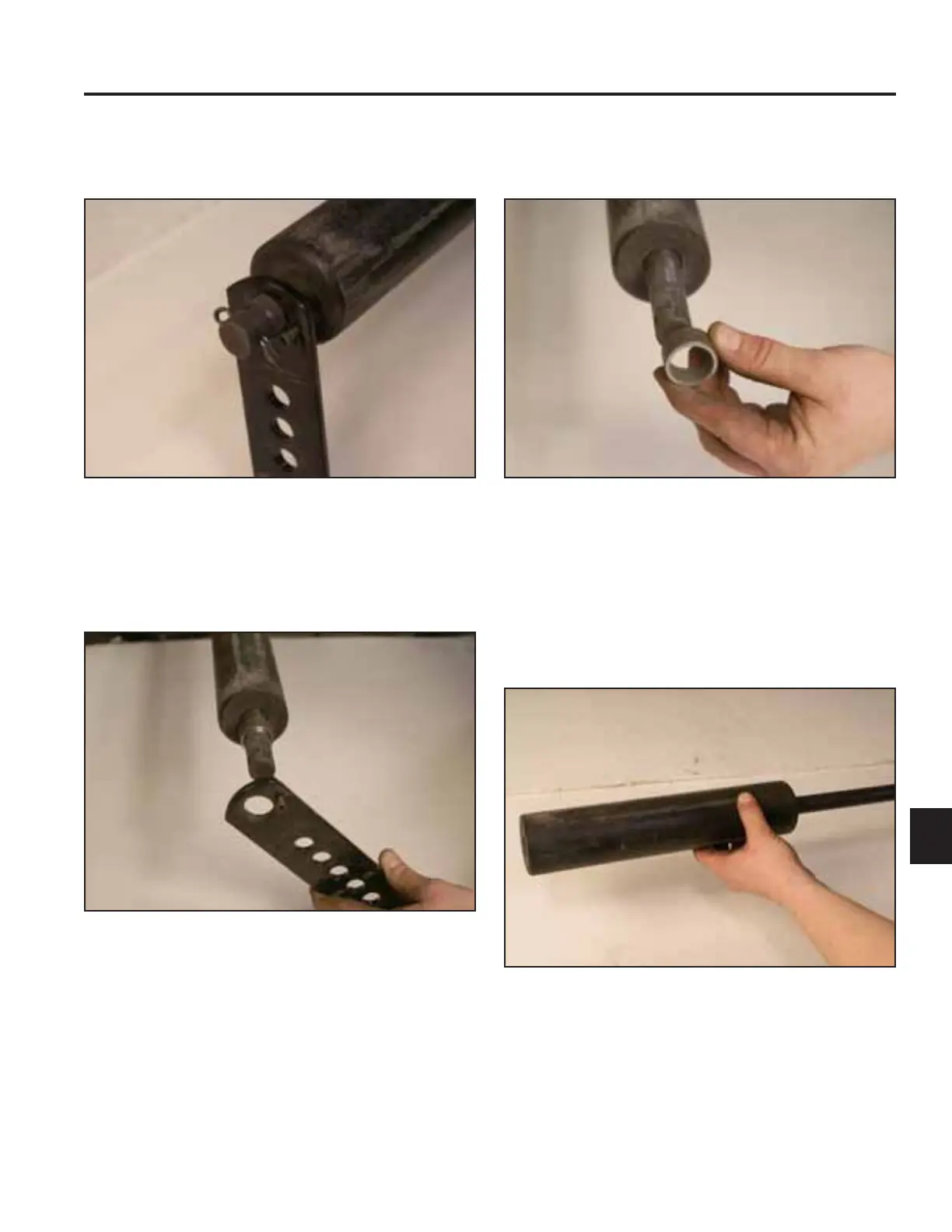

6. Remove the height adjuster from the end of the roller
shaft (Fig. 863).
8. Repeat steps 5 – 7 to remove the height adjuster
from the other end of the roller shaft.
9. Remove the 4 deck rollers from the roller shaft (Fig.
865).
Fig 863 PICT-7943a
Fig 865 PICT-7945
7. Remove the spacer from the end of the roller shaft
(Fig. 864).
Fig 864 PICT-7944a
5. Remove the cotter pin from end of the roller shaft
(Fig. 862).
Fig 862 PICT-7940
