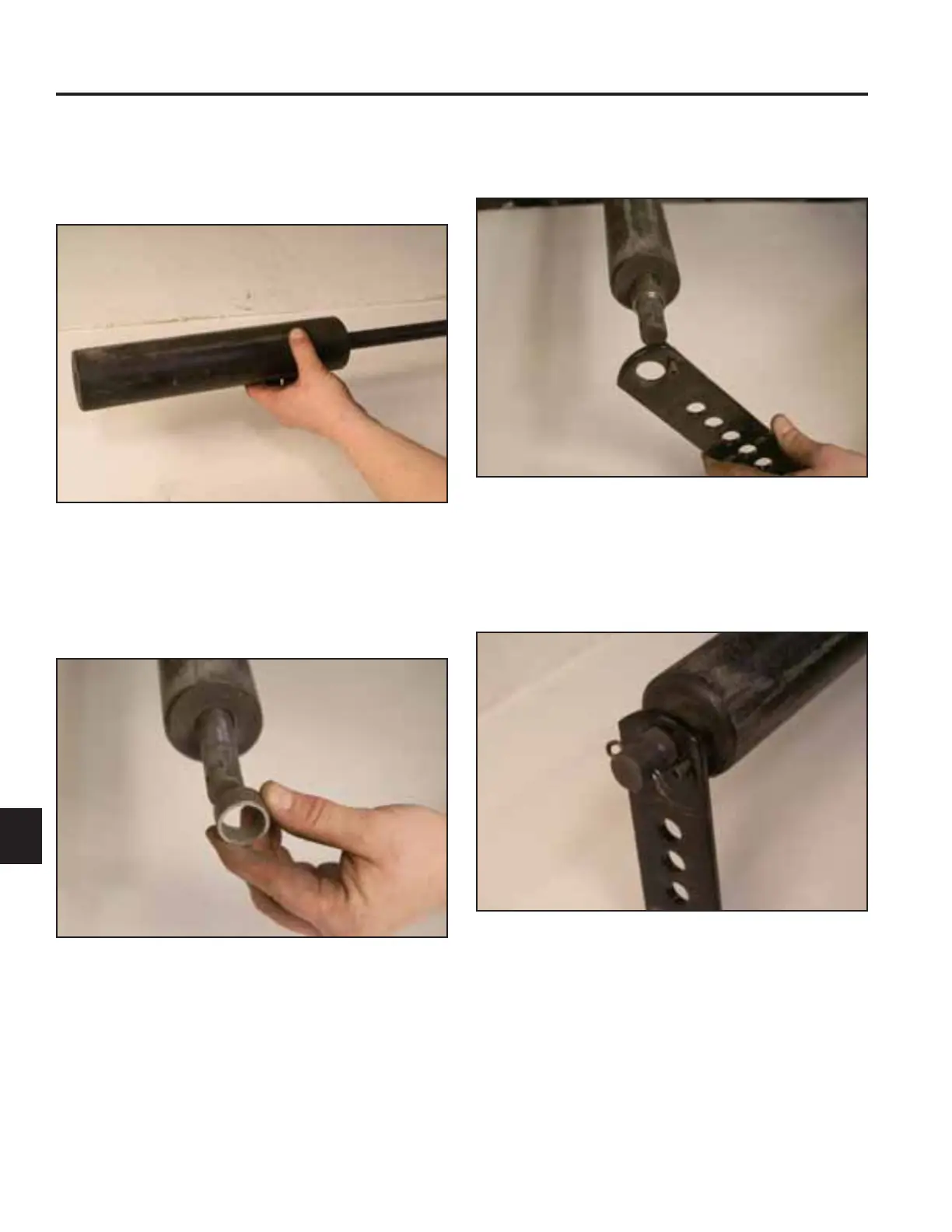

54” Mower Deck Roller Installation
1. Slide 4 deck rollers onto the roller shaft (Fig. 866).
Fig 866 PICT-7945
2. Slide a spacer onto the end of the roller shaft (Fig.
867).
Fig 867 PICT-7944a
3. Slide the height adjuster onto the end of the roller
shaft (Fig. 868).
Fig 868 PICT-7943
4. Install a cotter pin into end of the roller shaft (Fig.
869).
Fig 869 PICT-7940
