GEAR DRIVE SYSTEM
5-3GT Series Tractors Service Manual
5

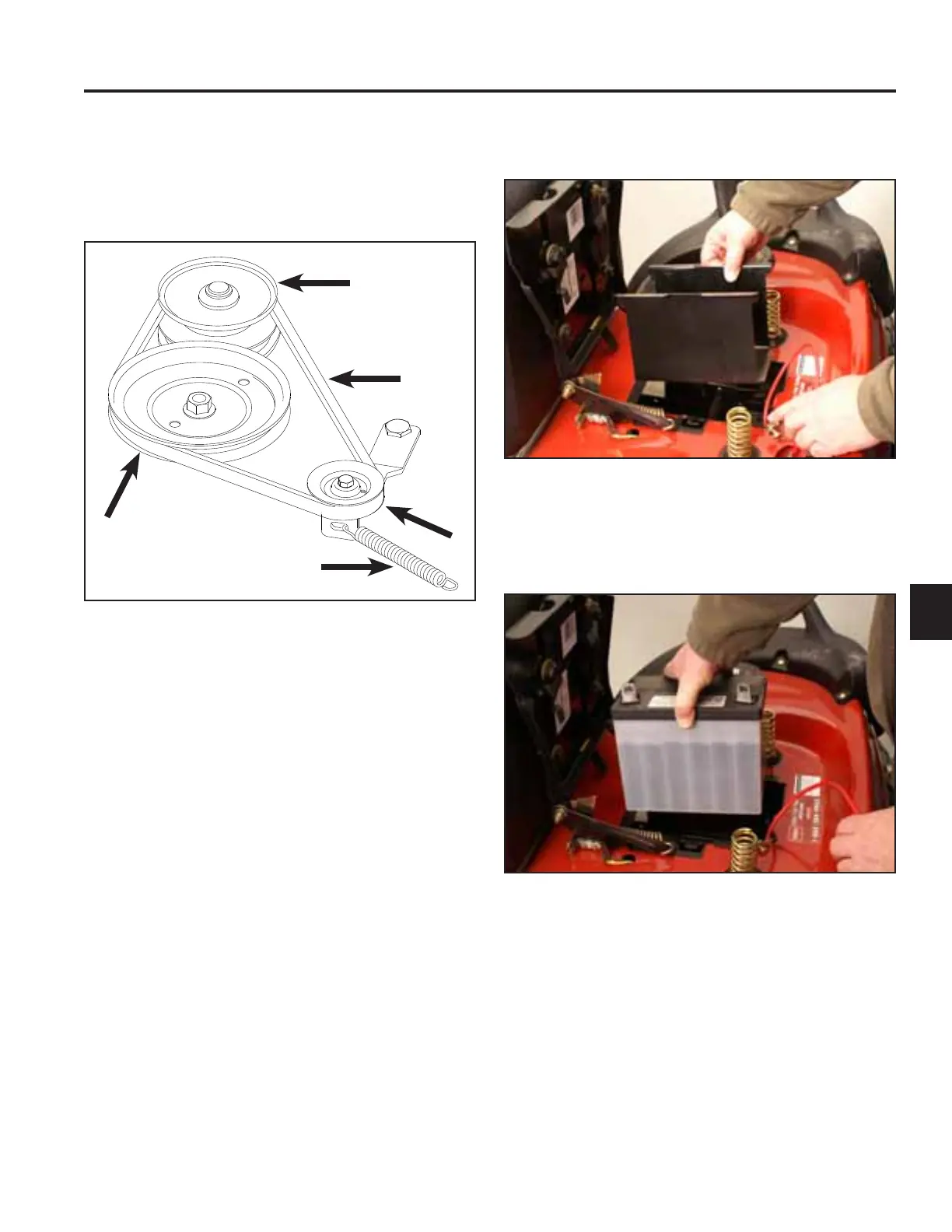

2. Position the battery tray (Fig. 435).
Fig 435 PICT-7354
3. Place the battery into the battery tray (Fig. 436).
A. Variable speed pulley D. Transmission drive belt
B. Transmission pulley E. Idler spring
C. Idler pulley
Fig 436 PICT-7353
Transmission Drive Belt Installation
1. Route the transmission drive belt around the pulleys
(Fig. 434).
Fig 434 belt routing iso
A
B
C
D
E
