HYDROSTATIC DRIVE SYSTEM
6-2 GT Series Tractors Service Manual
6

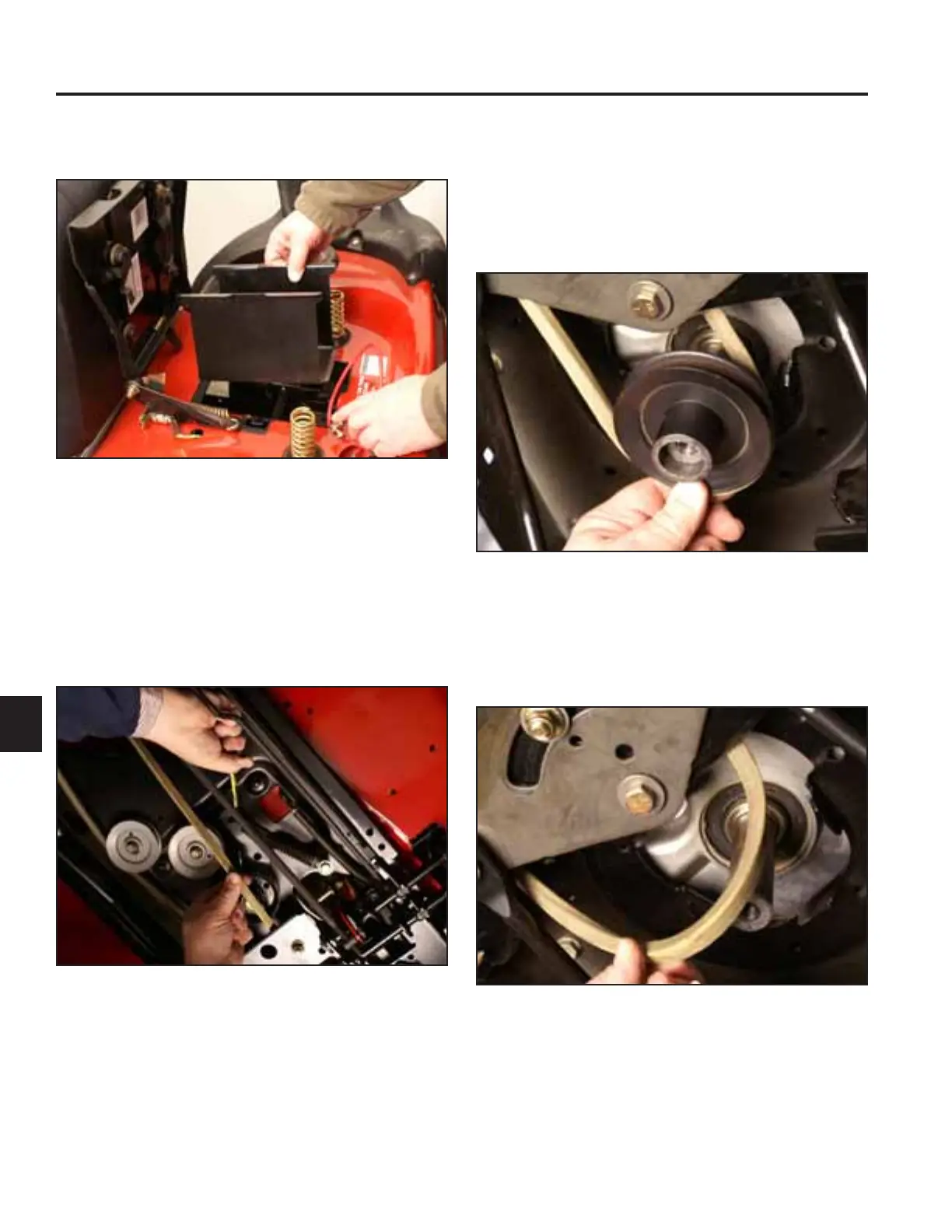

6. Remove the battery tray (Fig. 644). 9. Remove the Electric PTO clutch. Refer to Electric
PTO Clutch Removal on page 3-29.
10. Slide the engine pulley off the crankshaft and
remove the transmission drive belt from the engine
pulley (Fig. 646).
Fig 644 PICT-7354
Fig 646 PICT-7497
11. Remove the transmission drive belt from around the
crankshaft (Fig. 647).
7. Raise the machine so the transmission drive belt can
be accessed.
8. With a small pry bar, release tension from the idler
VSULQJ5HPRYHWKHEHOWIURPWKH¿[HG9LGOHUSXOOH\
and the idler pulley (Fig. 645).
Fig 647 PICT-7498
Fig 645 PICT-7496
