Toro GT series User Manual

HYDROSTATIC DRIVE SYSTEM
6-4 GT Series Tractors Service Manual
6
$ )L[HGLGOHU & 5+EHOWUXQ
% )ODWLGOHU ' /+EHOWUXQ

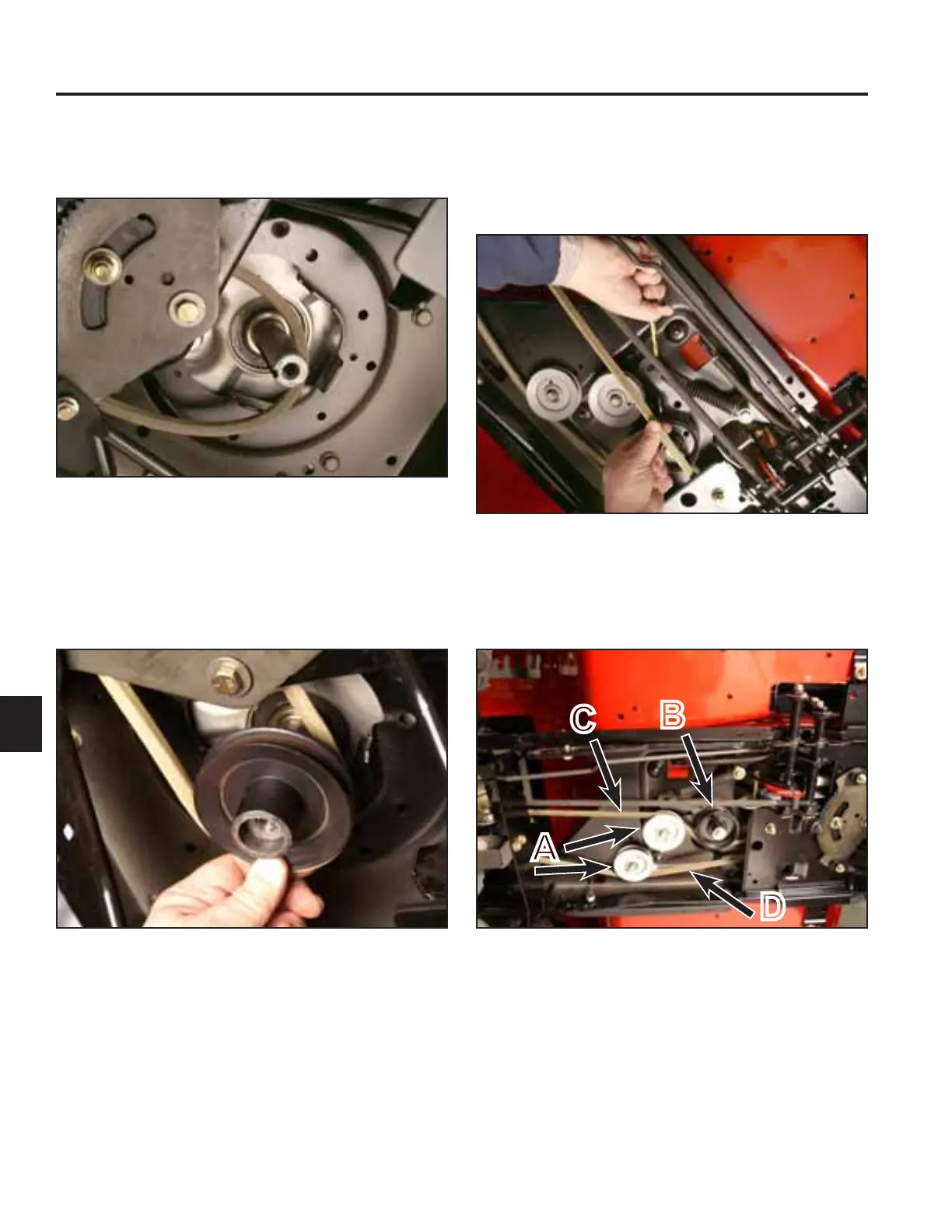

3. Position the transmission drive belt around the
crankshaft (Fig. 652).
 :LWKDVPDOOSU\EDUH[WHQGWKHLGOHUVSULQJEUDFNHW
5RXWHWKHULJKWKDQGEHOWUXQEHWZHHQWKH¿[HGLGOHU
DQGWKHÀDWLGOHU5RXWHWKHOHIWKDQGEHOWUXQRQWKH
RXWVLGHRIWKHRWKHU¿[HGLGOHUSXOOH\)LJ
Fig 652 PICT-7585a
Fig 654 PICT-7496a
Transmission drive belt routing (Fig. 655).
4. Apply anti-seize compound to crankshaft. Slide the
engine pulley onto crankshaft and install the trans-
mission drive belt around engine pulley (Fig. 653).
Fig 655 PICT-7586
Fig 653 PICT-7497
A
B
C
D
