HYDROSTATIC DRIVE SYSTEM
6-13GT Series Tractors Service Manual
6

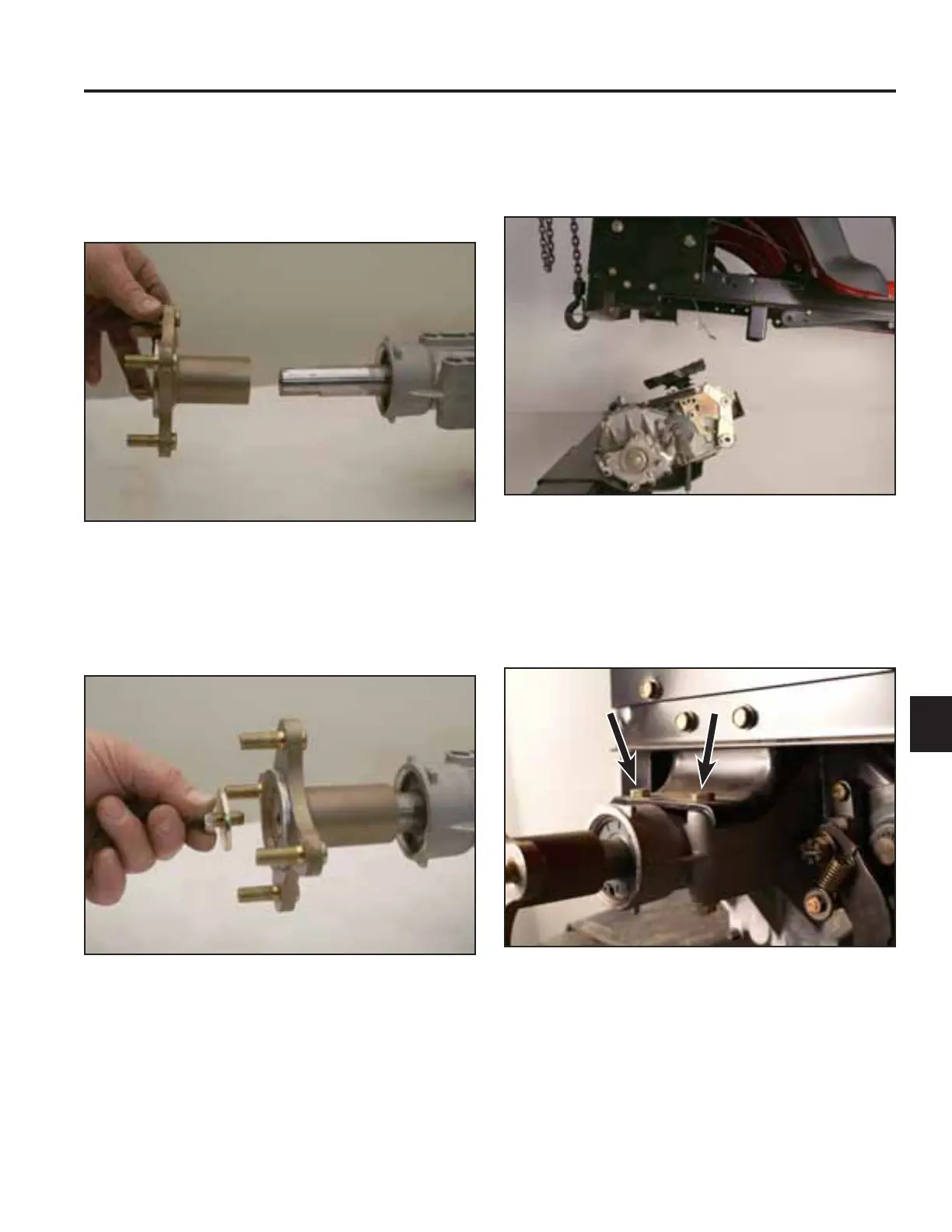

Hydrostatic Transmission Installation
1. Slide a wheel hub assembly onto each transmission
D[OHVKDIW)LJ
3. Carefully position the hydrostatic transmission under
the machine. Secure and support the transmission
(Fig. 687).
Fig 685 PICT-7568a
Fig 687 PICT-7564a
4. Install 4 bolts and nuts securing the sides of the
hydrostatic transmission to the frame (2 bolts on
each side) (Fig. 688).
2. Install a bolt and washer to secure each wheel hub
DVVHPEO\WRWKHWUDQVPLVVLRQD[OHVKDIWV)LJ
Fig 688 PICT-7554
Fig 686 PICT-7567a
