MOWER DECK
7-14 GT Series Tractors Service Manual
7

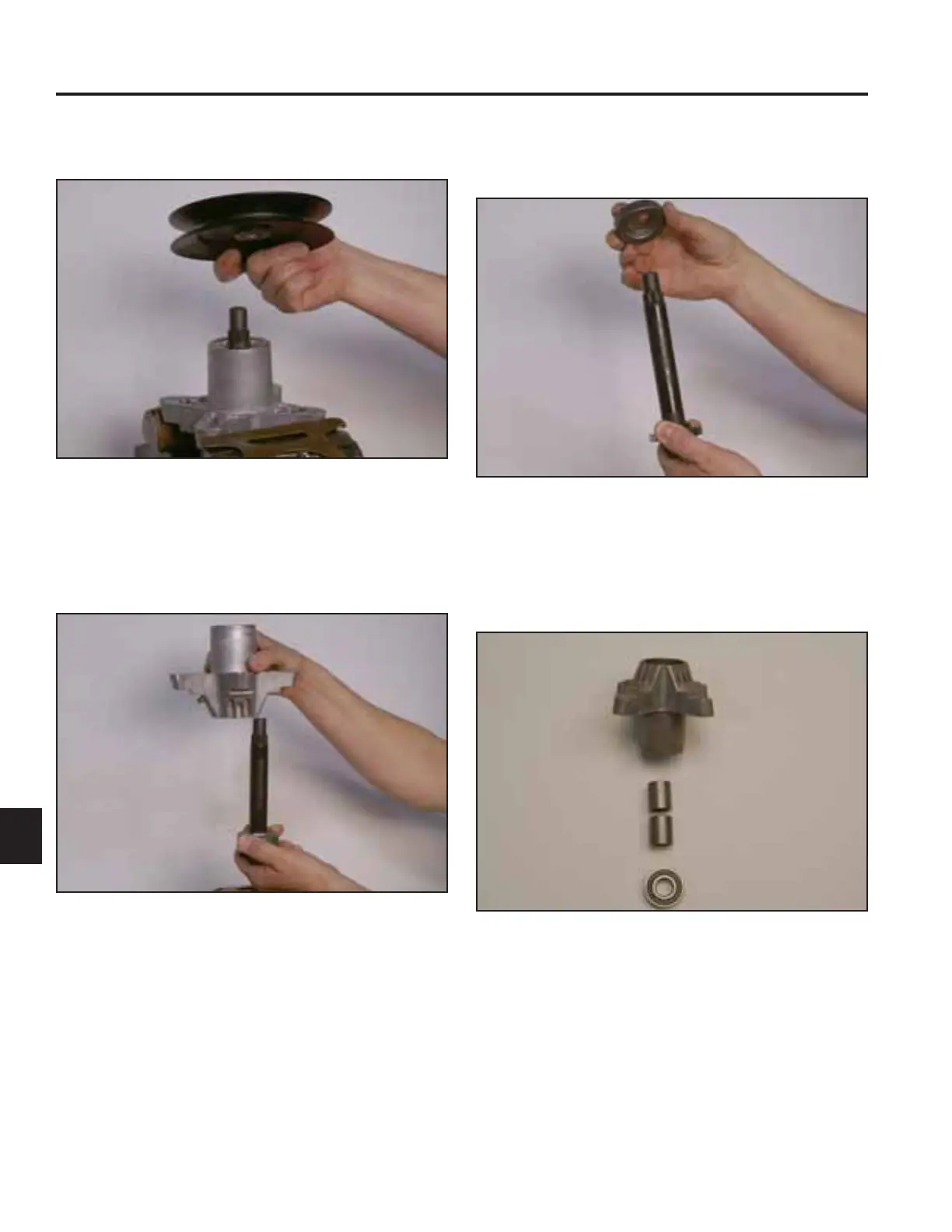

4. Remove the pulley (Fig. 785). 6. Remove the shoulder spacer from the spindle shaft
(Fig. 787).
Fig 785 PICT-8048a
Fig 787 PICT-8050a
7. Remove the bearing and 2 spacers from the pulley
side of the housing (Fig. 788).
5. Remove the spindle shaft/shoulder spacer assembly
from the spindle housing (Fig. 786).
Fig 788 PICT-7742a
Fig 786 PICT-8049a
