Toro GT series User Manual

MOWER DECK
7-22 GT Series Tractors Service Manual
7

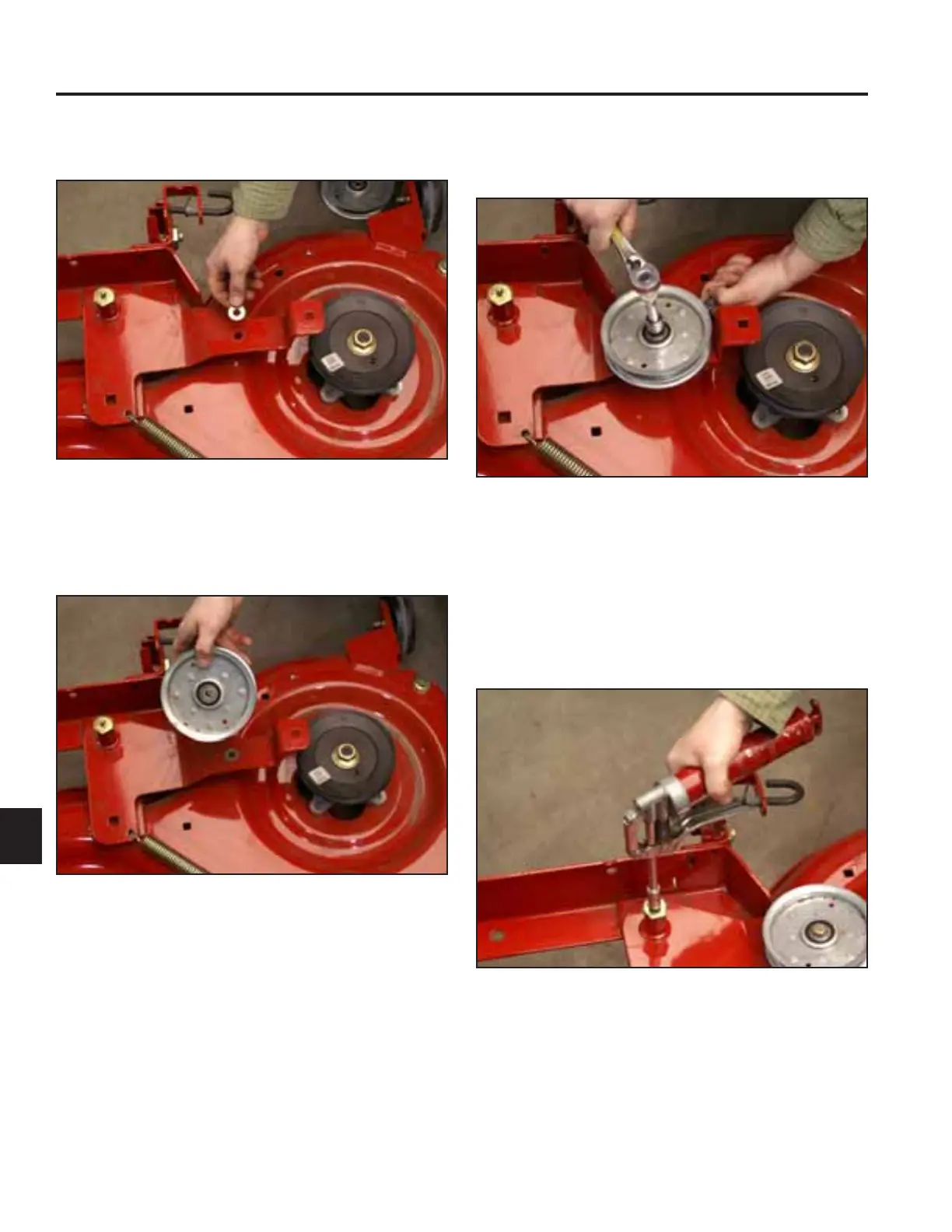

8. Position a spacer onto the idler bracket (Fig. 816). 10. Loosely install a bolt, washer and nut to secure the
pulley to the spring loaded idler (Fig. 818).
Fig 816 PICT-7957
Fig 818 PICT-7955
11. Apply grease to the idler assembly shoulder bolt
(Fig. 819).
Note: Check and apply grease to each of the mower
deck spindles as needed.
9. Position the pulley onto the idler bracket (Fig. 817).
Fig 819 PICT-7975
Fig 817 PICT-7956
12. Install the mower deck belt. Refer to “50” Mower
Deck Belt Installation” on page 7-2.
13. Install the Mower Deck onto the Tractor. Refer to
“50” Mower Deck Installation” on page 7-8.
