BeltMaintenance
CheckingandAdjustingthe
AlternatorBeltTension
ServiceInterval:Beforeeachuseordaily—Check
theconditionofthealternatorbelt.
Every100hours—Adjustthealternatorbelt
tension.
1.Parkthemachineonalevelsurface,engagethe
parkingbrake,andlowertheloaderarms.
2.Shutofftheengineandremovethekey.
3.Openthehood.
4.Apply30N(22in-lb)offorcetothealternator
belt,midwaybetweenthepulleys(Figure76).

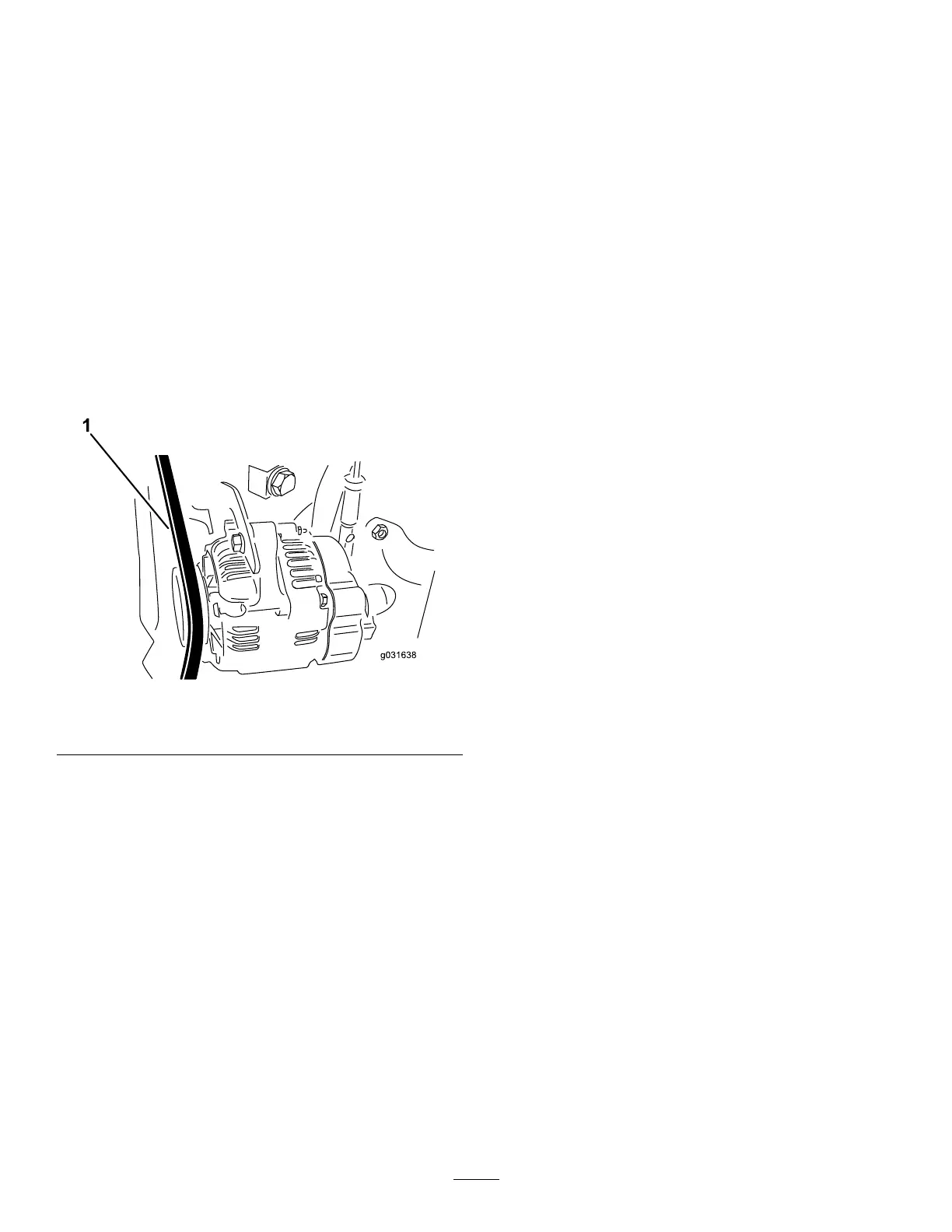

g031638
Figure76
1.Alternatorbelt
5.Ifthebeltdoesnotdeect11mm(7/16inch),
completethefollowingproceduretotensionthe
belt:
A.Loosentheboltsecuringthealternatorto
theengineandtheboltsecuringthebrace
tothealternator.
B.Insertaprybarbetweenthealternatorand
engine,andpryoutatthealternator.
C.Whenyouobtainthepropertension,tighten
thealternatorandbraceboltstosecurethe
adjustment.
ControlsSystem
Maintenance
AdjustingtheControls
Thefactoryadjuststhecontrolsbeforeshippingthe
machine.However,aftermanyhoursofuse,you
mayneedtoadjustthetractioncontrolalignment,
theNEUTRALpositionofthetractioncontrol,andthe
trackingofthetractioncontrolinthefullforward
position.
ContactyourAuthorizedServiceDealertoadjustthe
controlsofyourmachine.
