Toro TXL 2000 - Checking the Hydraulic-Fluid Level

Checkingthe
Hydraulic-FluidLevel
ServiceInterval:Every25hours
Important:Alwaysusethecorrecthydraulic
uid.Unspecieduidswilldamagethehydraulic
system.RefertoHydraulic-FluidSpecications
(page49).
1.Removeanyattachments.
2.Parkthemachineonalevelsurfaceandengage
theparkingbrake.
3.Raisetheloaderarmsandinstallthecylinder
locks.
4.Shutofftheengineandremovethekey.
5.Removethefrontcover;refertoRemovingthe
FrontCover(page32).
6.Cleantheareaaroundthellerneckofthe
hydraulictank(Figure78).

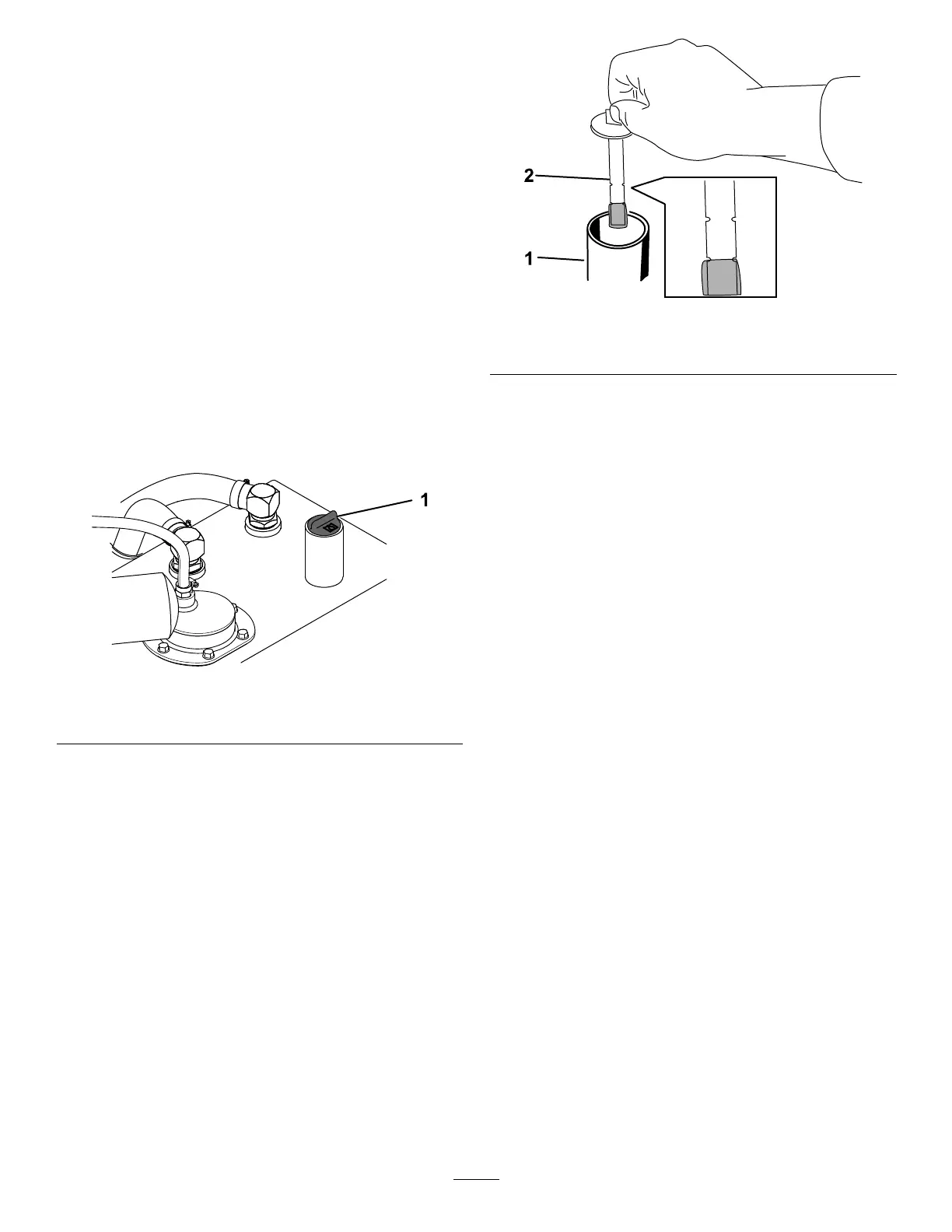

g263507
Figure78
1.Filler-neckcap
7.Removetheller-neckcapandchecktheuid
levelonthedipstick(Figure79).
Note:Theuidlevelshouldbebetweenthe
2notchesofthedipstickwhilethearmsare
loweredoratthelowernotchwhilethearms
areraised.
g263506
Figure79
1.Fillerneck2.Dipstick
8.Ifthelevelislow,addenoughuidtoraiseitto
theproperlevel.
9.Installtheller-neckcap.
10.Installthefrontcover.
