2. MAJOR UNIT REPLACEMENT
EO18-33032
2.1 Replacing the CPU PC Board
2-8
18) Close the Open Cover.
NOTES:

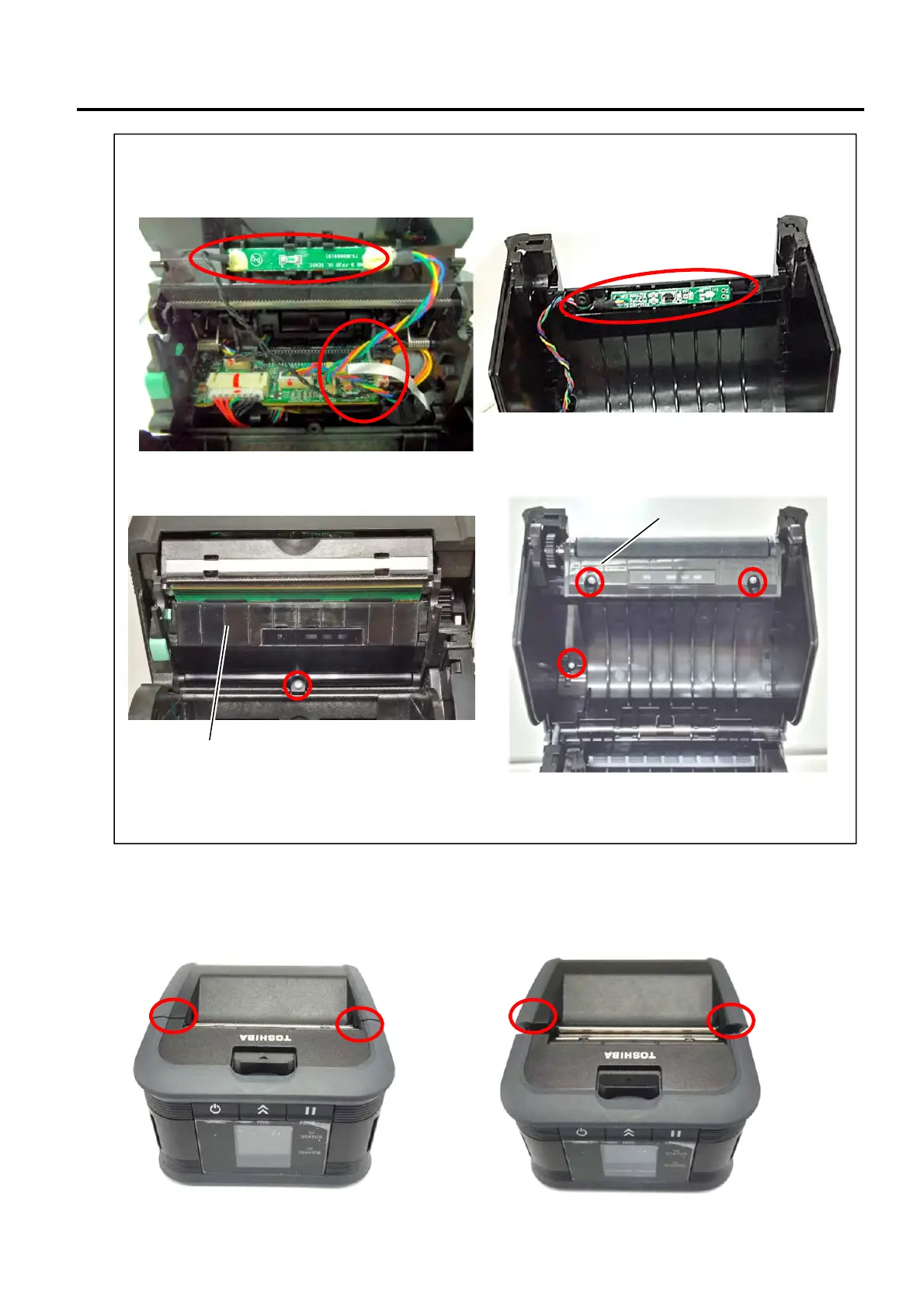

1. Make sure that the upper and lower sensors are fit in position and in correct orientation, as shown in
the pictures below
2. Ensure correct fitting for the sensor cover and the paper guide outlet to ensure that there is no gap
during screwing and re-assembly.
Note: Be careful not to catch the cable by the cover while reassembling.
Sensor cover
Paper guide outlet
GOOD
NO GOOD
