2. MAJOR UNIT REPLACEMENT
EO18-33032
(Revision date: Aug., 2017)
2.6 Replacing the PWB Sensor Assembly
2-19

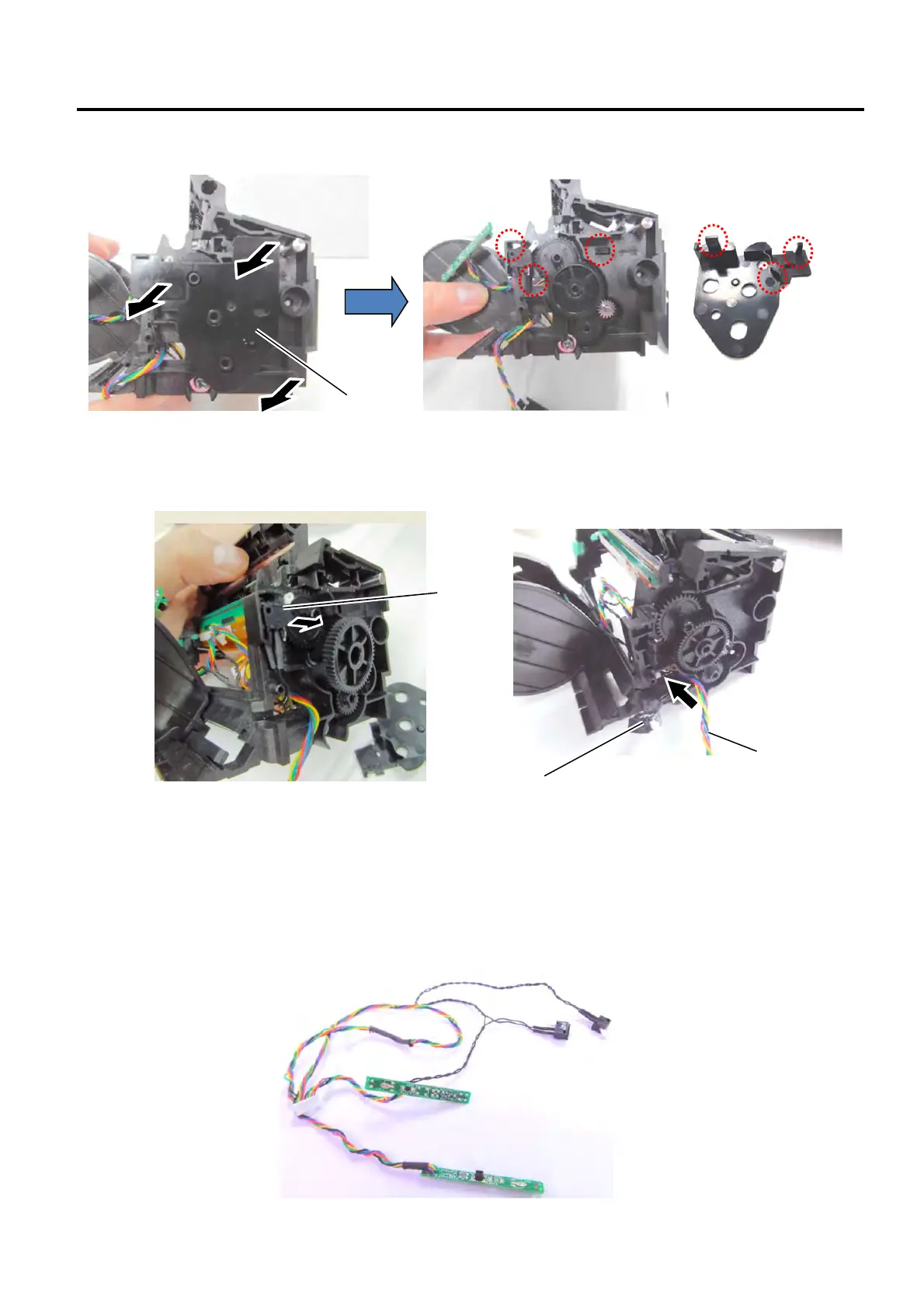

5) On the other side, release the tabs of the black cover to remove it.
6) Detach the Cover Open switch and insert the switch and harness (sensor) inside the hole.
NOTE: The Gears shown in the picture above are not secured and are easily removed. Be careful not to drop
and break or lose them.
7) Replace the PWB Sensor Assembly with a new one, and then reassemble in the reverse order of removal.
For the GH model, attach a new adhesive tape after re-installing the Thermal head assembly. (Refer to
Section 2.1.)
