2. MAJOR UNIT REPLACEMENT EO18-33032
(Revision Date: Aug., 2017)
2.8 Replacing the Peel-Off Unit
2-25
6) Remove the Peel-Off unit connector from the CPU PCB Board including the harness.
7) Replace the Peel-Off Unit with a new one, and then perform reassembly in the reverse order of removal.
For the GH model, attach a new adhesive tape after re-installing the Thermal head assembly. (Refer to
Section 2.1.)

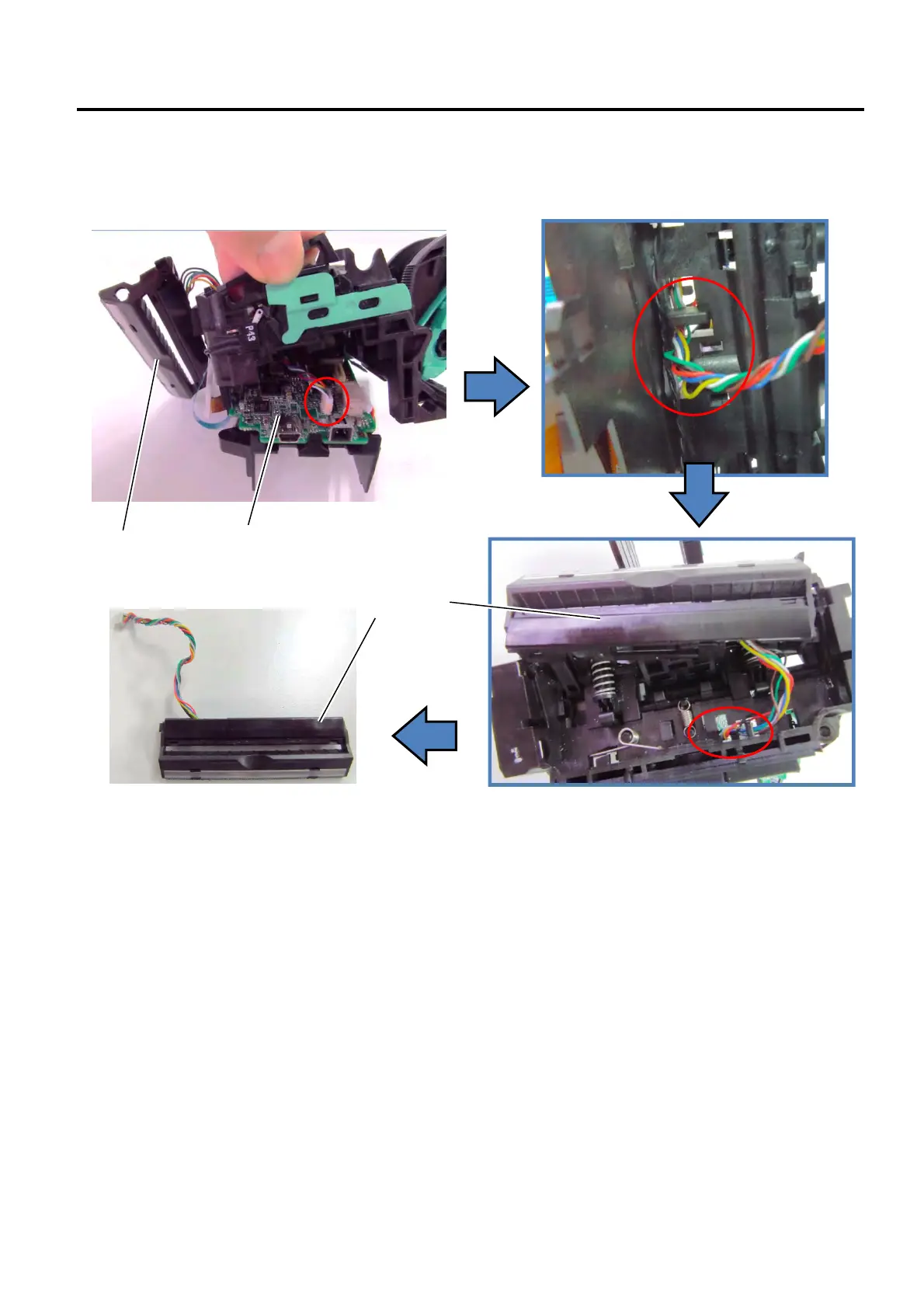

CPU PCB Board
Peel-Off Unit
Harness Inside routing
Top view harness routing
Peel-Off Unit
