2. MAJOR UNIT REPLACEMENT
EO18-33032
2.1 Replacing the CPU PC Board
2-2

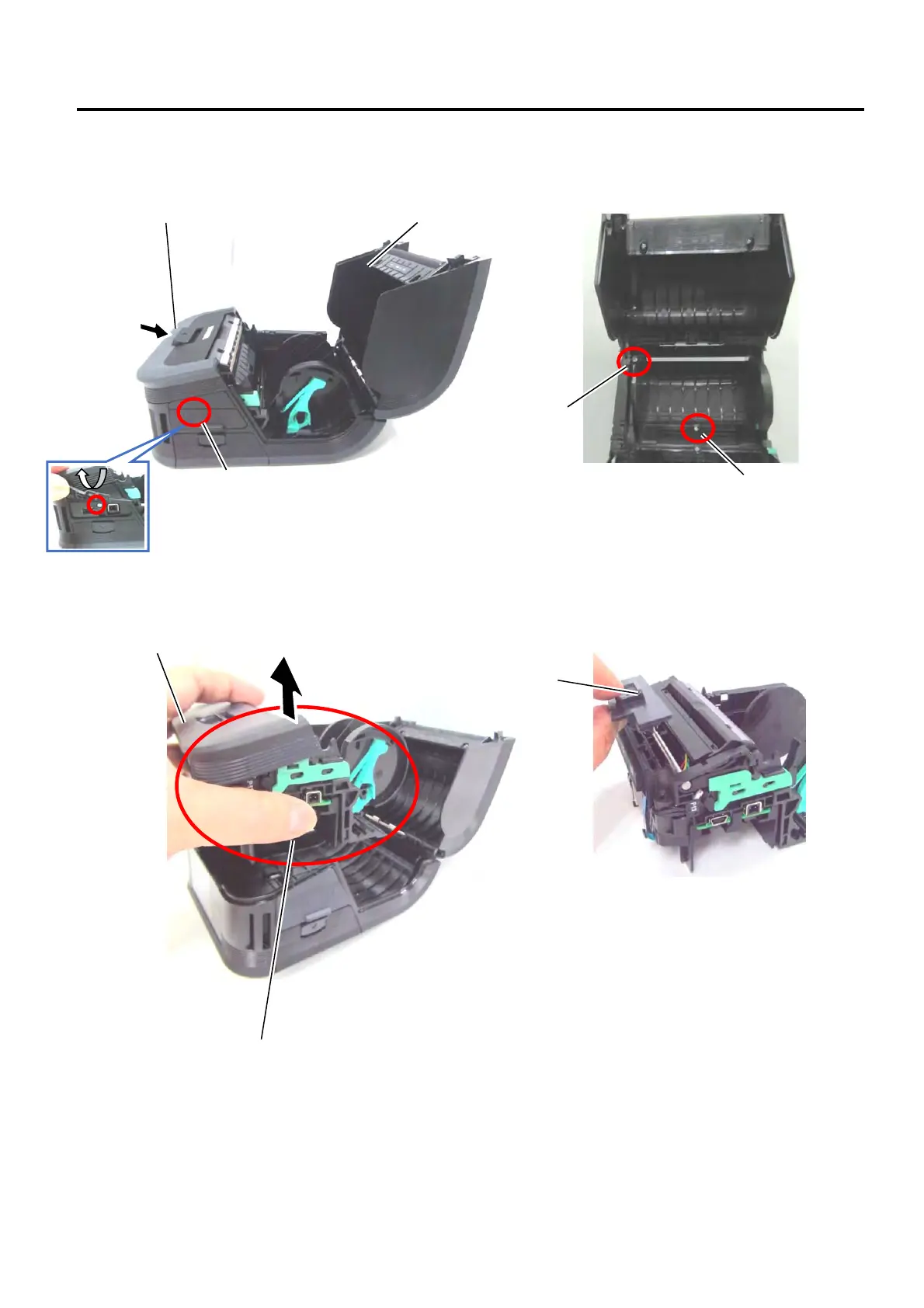

4) Push the open button to open the printer.
5) Remove the screws inside the printer.
6) Lift the Function Unit as shown below. The Top cover and the open button can be removed now.
.
Open Cover
Open Button
Inside screw
Open button
Top Cover
Function Unit
Inside screw
Inside screw
