Toshiba B-FP3D SERIES Maintenance Manual

2. MAJOR UNIT REPLACEMENT EO18-33032
2.1 Replacing the CPU PC Board
2-3

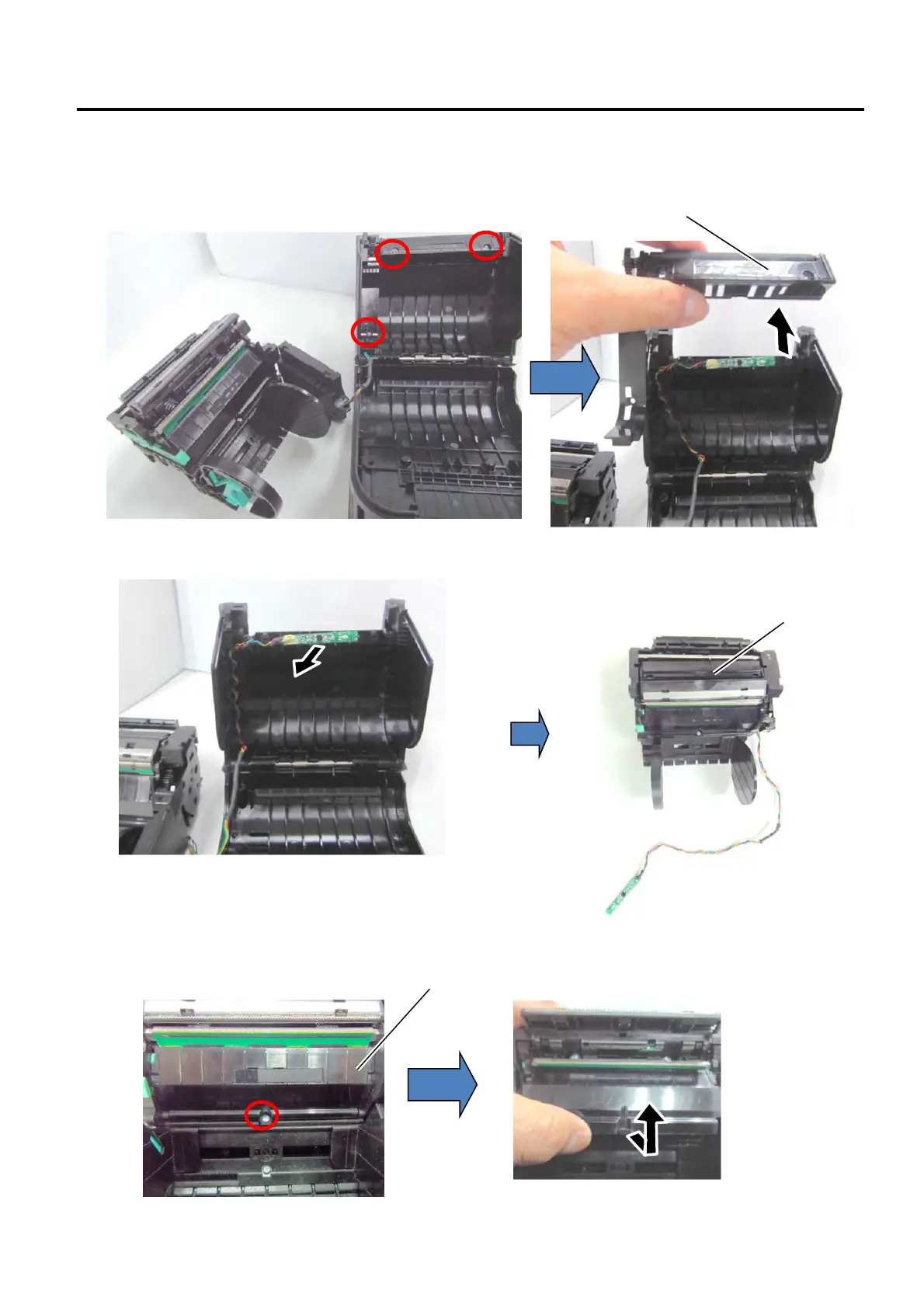

7) Remove the 3 screws and detach the Paper Outlet Guide.
8) Detach the lower sensor to make it easier to handle the function unit.
9) Remove the screw and lift the thermal head cover.
Paper Outlet Guide
Function Unit
Thermal head cover
