2. MAJOR UNIT REPLACEMENT
EO18-33032
(Revision Date: Aug., 2017)
2.1 Replacing the CPU PC Board
2-4

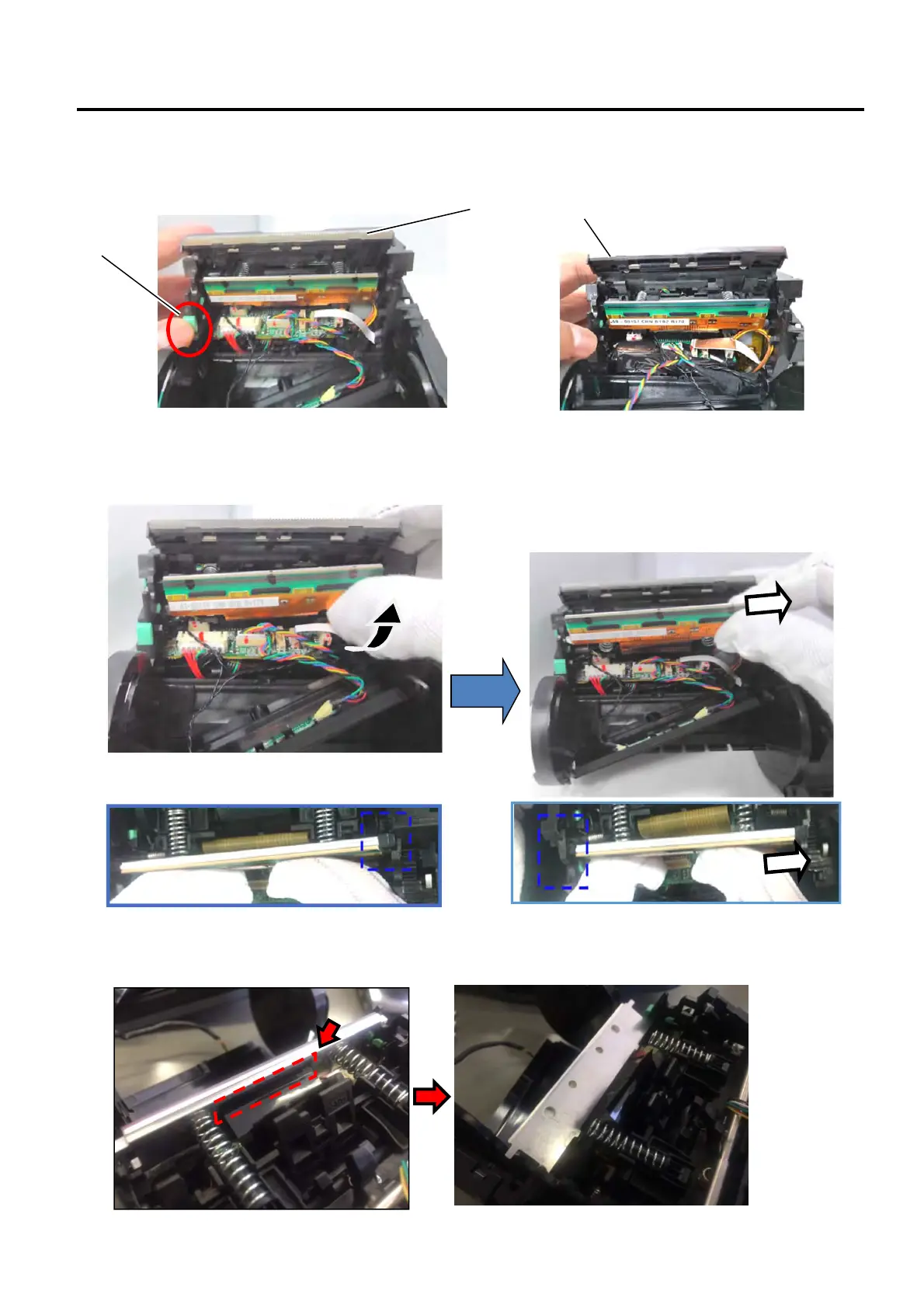

10) Push the Lock Lever to Open the Peel Off Unit. (For GH Models only)
11) Push the right side of the Thermal head slightly to dislodge it from the hook.
After it is dislodged, pull it to the right. Be sure to use clean gloves in removing the Thermal head assembly.
For the GH model, remove the adhesive tape from the back of the Thermal head assembly. Be sure to
completely remove the residual glue, too.
Lock Lever
Peel Off Unit
Top View
Top View
Note: GH30 and GH50 models have cover
sheets on the PCB components for IP54 rating.
To Next Page
