2. MAJOR UNIT REPLACEMENT
EO18-33032
2.1 Replacing the CPU PC Board
2-5

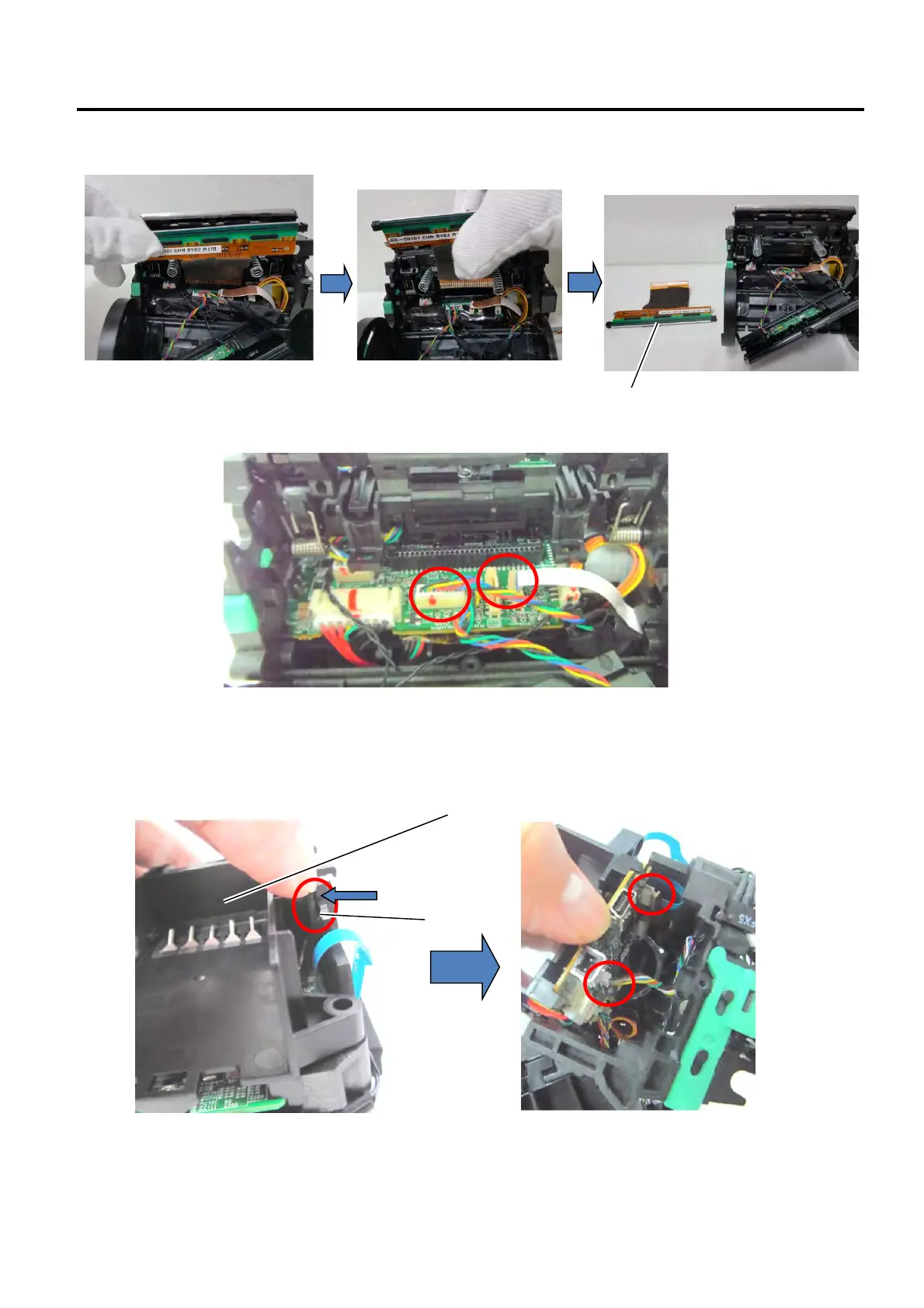

12) Lift the thermal head gently. Carefully detach the Thermal head connector from the PCB.
13) Detach some of the connectors from the Main PCB.
14) Turn the Function Unit upside-down and push the hook in the direction of the arrow and lift the Battery
terminal assembly while carefully removing the different connectors attached to the CPU PC Board.
Battery Terminal Assembly
Hook
Thermal Head Assembly
To Next Page
