4 Replacement Procedures 4.14 DC fan

4-46 [CONFIDENTIAL] PORTÉGÉ R830/Satellite R830 Maintenance Manual (960-880)

4.14 DC fan

Removing the DC fan

To remove the DC fan, follow the steps below and refer to Figure 4-28.

1. Peel off the insulator and remove the following screws securing the DC fan.

• M2.5×4B FLAT HEAD ×2

2. Disconnect the fan harness from the connector CN3380 on the system board.

3. Remove the DC fan from the slot.

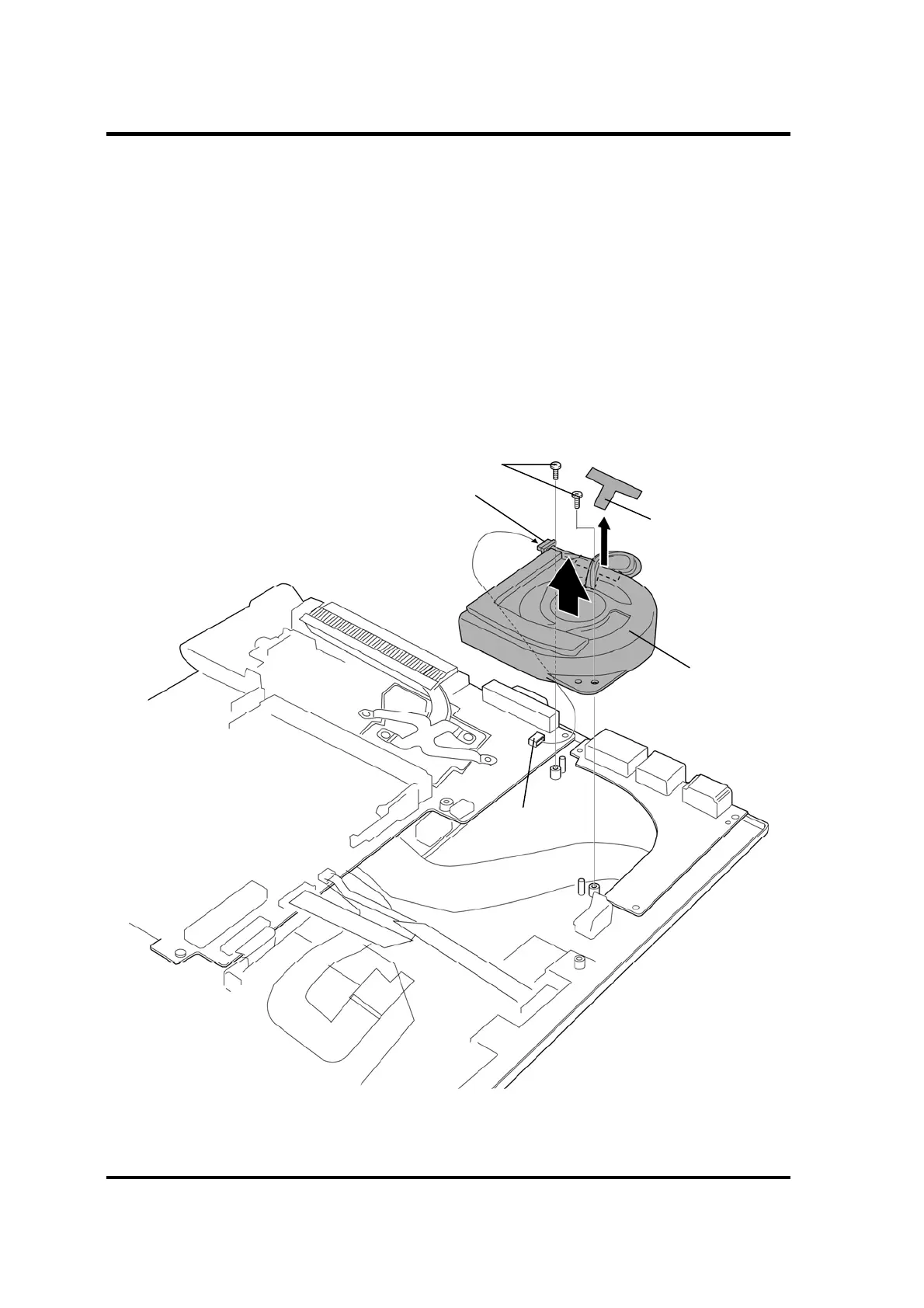

Figure 4-28 Removing the DC fan

CN3380

DC fan

M2.5x4B FLAT HEAD

Fan harness

Insulator
