4.19 Sound board 4 Replacement Procedures

PORTÉGÉ R830/Satellite R830 Maintenance Manual (960-880) [CONFIDENTIAL] 4-63

4.19 Sound board

Removing the Sound board

To remove the sound board, follow the steps below and refer to Figure 4-38 to 4-41.

1. Remove the following screw and speaker holder R.

• M2×4C S-THIN HEAD ×1

2. Peel off the aluminum tape and disconnect the speaker harness from the connector

CN6000 on the sound board.

3. Disconnect the camera harness, sensor harness and inner harness from the

connector CN9540, CN9620 and CN6050 on the sound board.

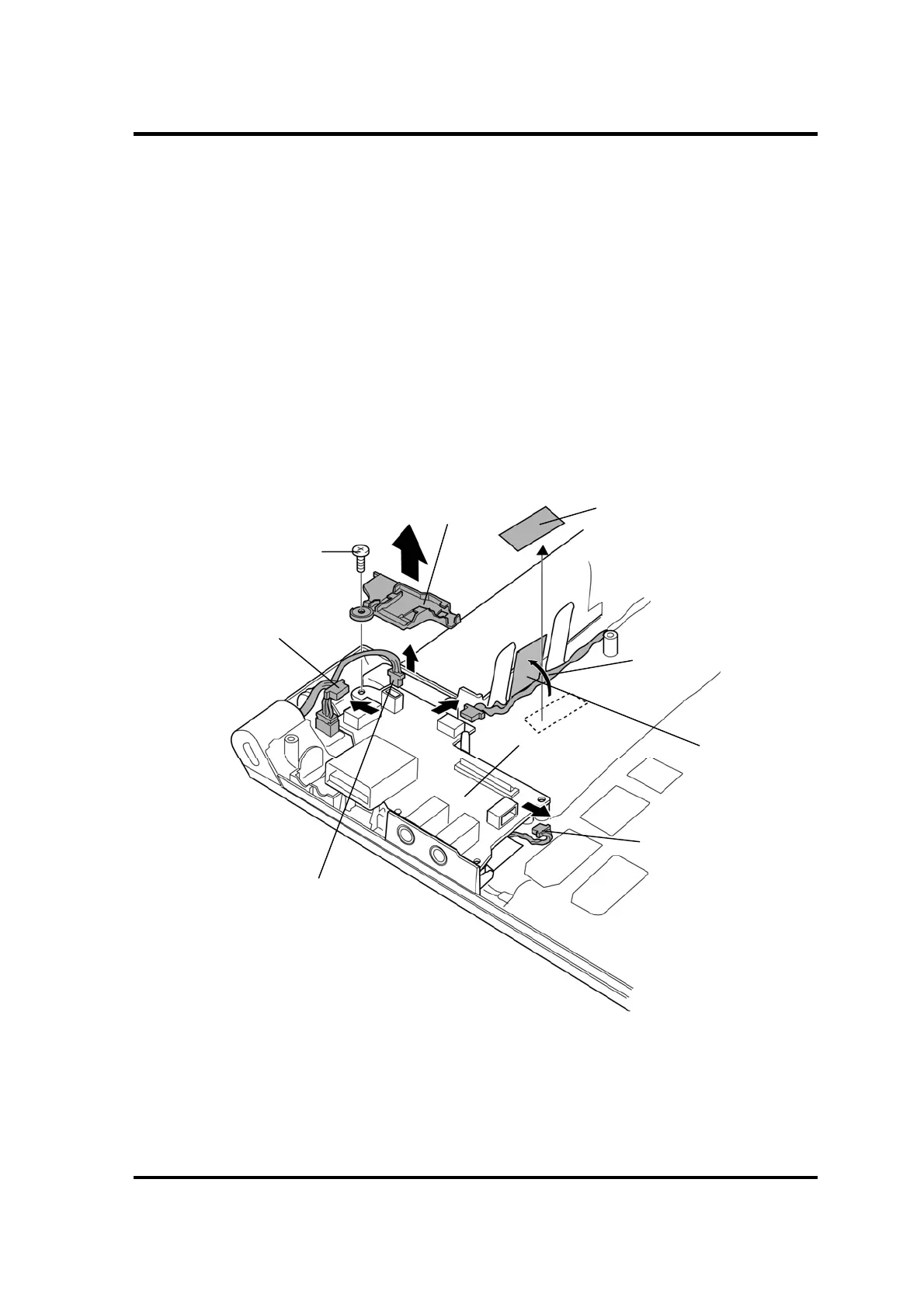

Figure 4-38 Removing the sound board (1)

Speaker harness

(Connected to CN6000)

Speaker holder R

Sound board

M2x4C S-THIN HEAD

Sensor harness

(Connected to CN9620)

Inner harness

(Connected to CN6050)

Camera harness

(Connected to CN9540)

Aluminum tape

Conductive cloth
