1.7 TFT Color Display
The TFT color display consists of 14.0-inch HD /HD+ LCD module.
1.7.1 LCD Module
The LCD module used for the TFT color display uses a backlight as the light source and can
display a maximum of 16M colors with 1,366 x 768 resolutions.
Figure 1-7 shows a view of the LCD module and Table 1-7 lists the specifications.

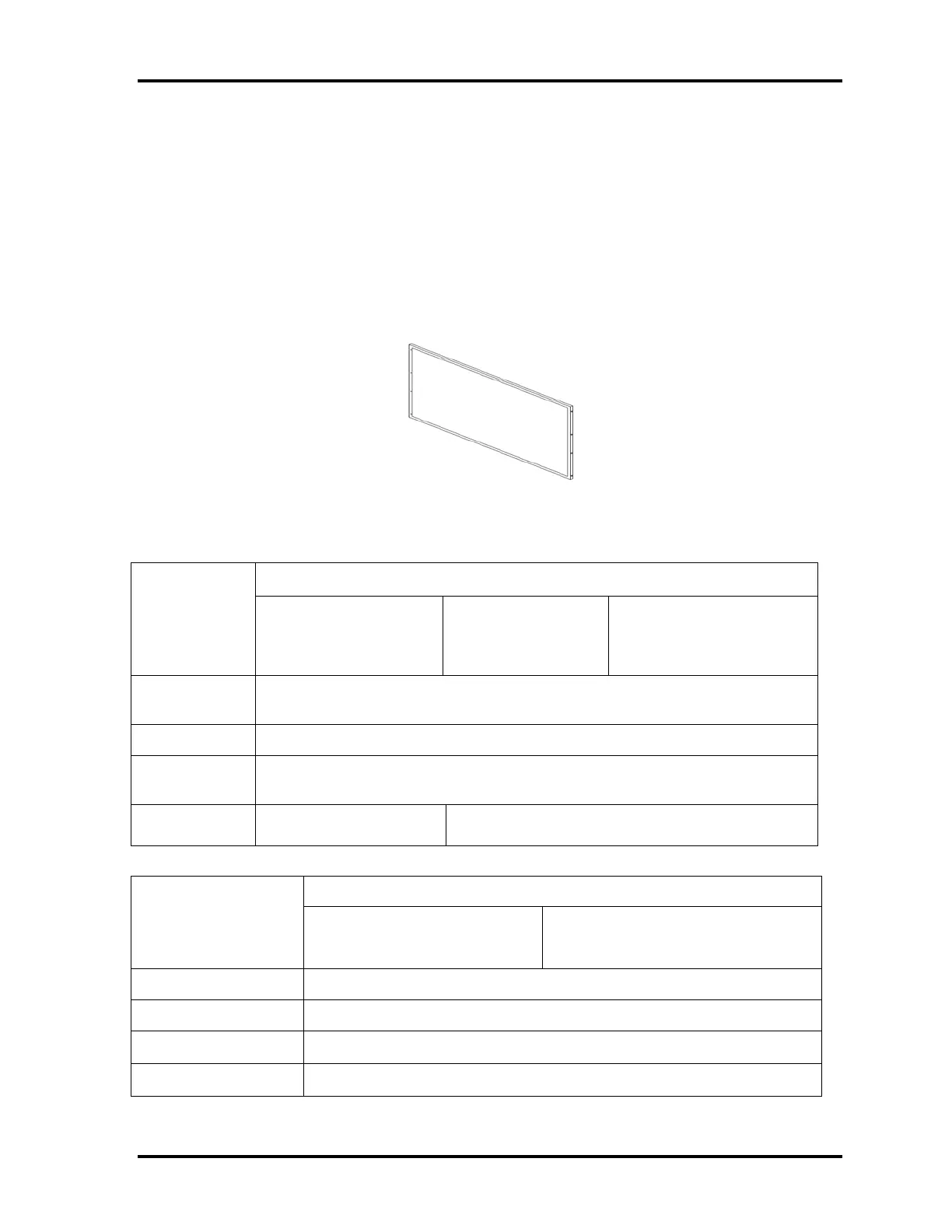

Figure 1- 7 LCD module
Table 1-6 LCD module specifications
TMD（2010/10 AUO）
Item
13.3 HD 200 LD-LW
G33C00064110/
G33C0006E110
13.3 HD 200 LD
G33C00065110/
G33C0006F110
13.3 HD 200 CSV LD
G33C00066110/
G33C0006G110
Number of
Dots
1,366 (W) x 768 (H)
Dot pitch (mm)
0.2148(H)x0.2148(V)
Active area
(mm)
294.9(H)x166.4(V) (13.3”diagonal)
Outline (mm)
302.06(W) x 188.77(H) x
2.06/2.4(D)
302.06(W) x 188.77(H) x 3.6/3.88(D)
LG Item
13.3 HD 200 LD
G33C00068110
13.3 HD 200 CSV LD
G33C00067110
Number of Dots
1,366 (W) x 768 (H)
Dot pitch (mm)
0.2148(H)x0.2148(V)
Active area (mm)
293.42(H)x164.97(V) (13.3”diagonal)
Outline (mm)
306.3(W) × 177.7(H) × 3.6(D)
