STE 80897
– 3–2
TRANSPORTATION & INSTALLATION MANUAL
3.1.2 Connecting Power Cable "CN1" (Fig. 3.1–[1]; Plug connector included)
The power cable is used to supply the main power to the controller.
Table 3.1 Power supply specifications
Item Specifications
Power supply Single phase, AC 190 ~ 250 V, 50/60 Hz ±1 Hz
Power capacity 1.7 kVA
Instantaneous power
failure
40 msec or less
Grounding
Grounding with grounding resistance of 100 Ω or less
The connector is CN1 (Fig. 3.1–[1])
As the cable is not attached, the user should fabricate it, using the plug connector
connected to CN1 on the controller side.
CN1 plug connector Type: JL04V–6A18–10SE–EB Maker: Japan
Aviation Electronics
Industry
CN1 cable clamp Type: JL04–18CK Maker: Japan
Aviation Electronics
Industry
Wire
3.5 mm
2
~ 5.5 mm
2
The connector (JL04V–6A18–10SE–EB) is soldered to the wires.
!
DANGER
Be sure to use the designated wires. Otherwise, fires or faults could be
caused.
When connecting the connector and wires, make sure of the terminal
arrangement.
After the connection, confirm the connection, using a tester, etc.

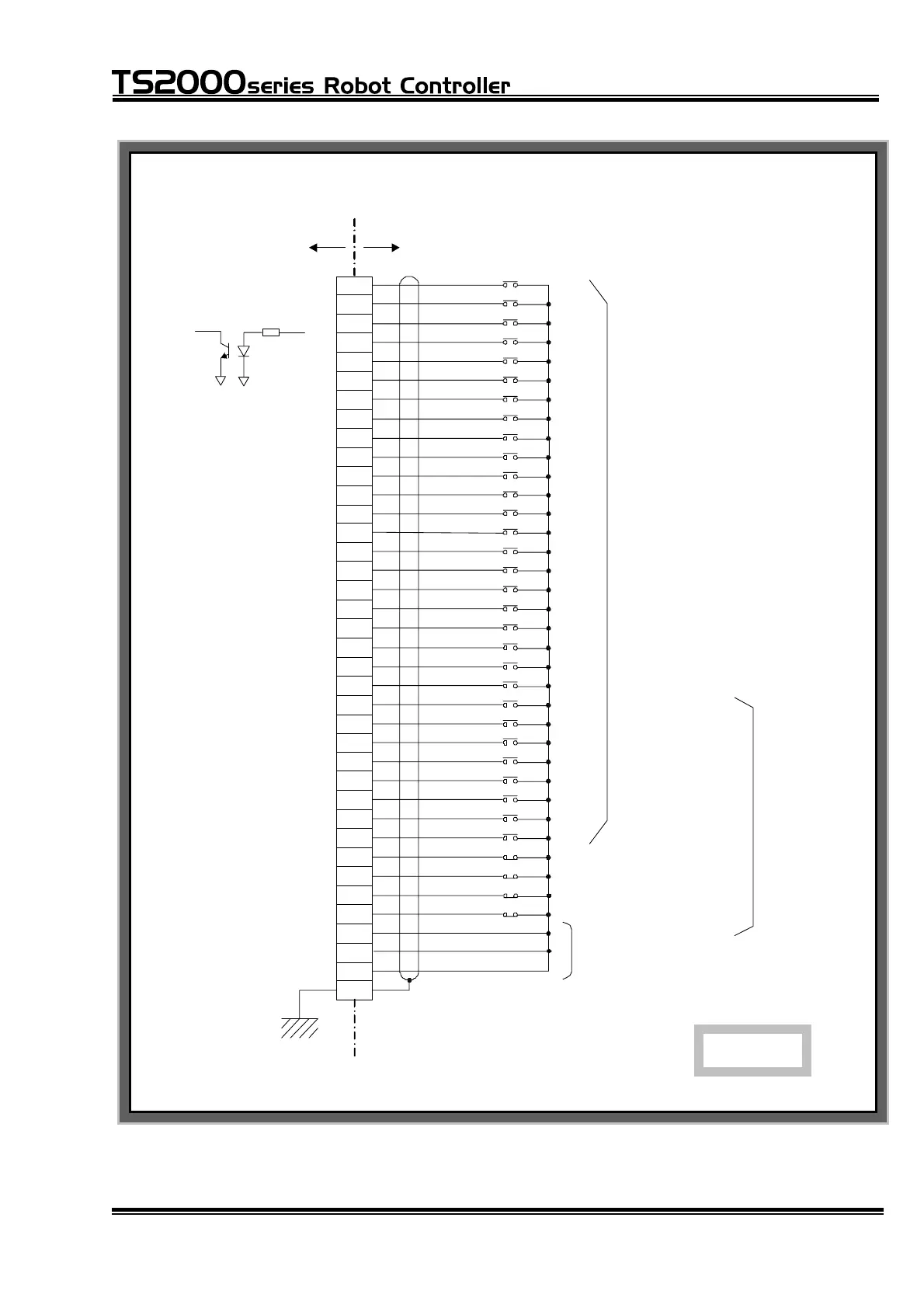

For the terminal arrangement, see Para. 3.1.7.
