Toshiba TCR Series - List of Connector Terminal Arrangement Examples

STE 80897
– 3–5 –
TRANSPORTATION & INSTALLATION MANUAL

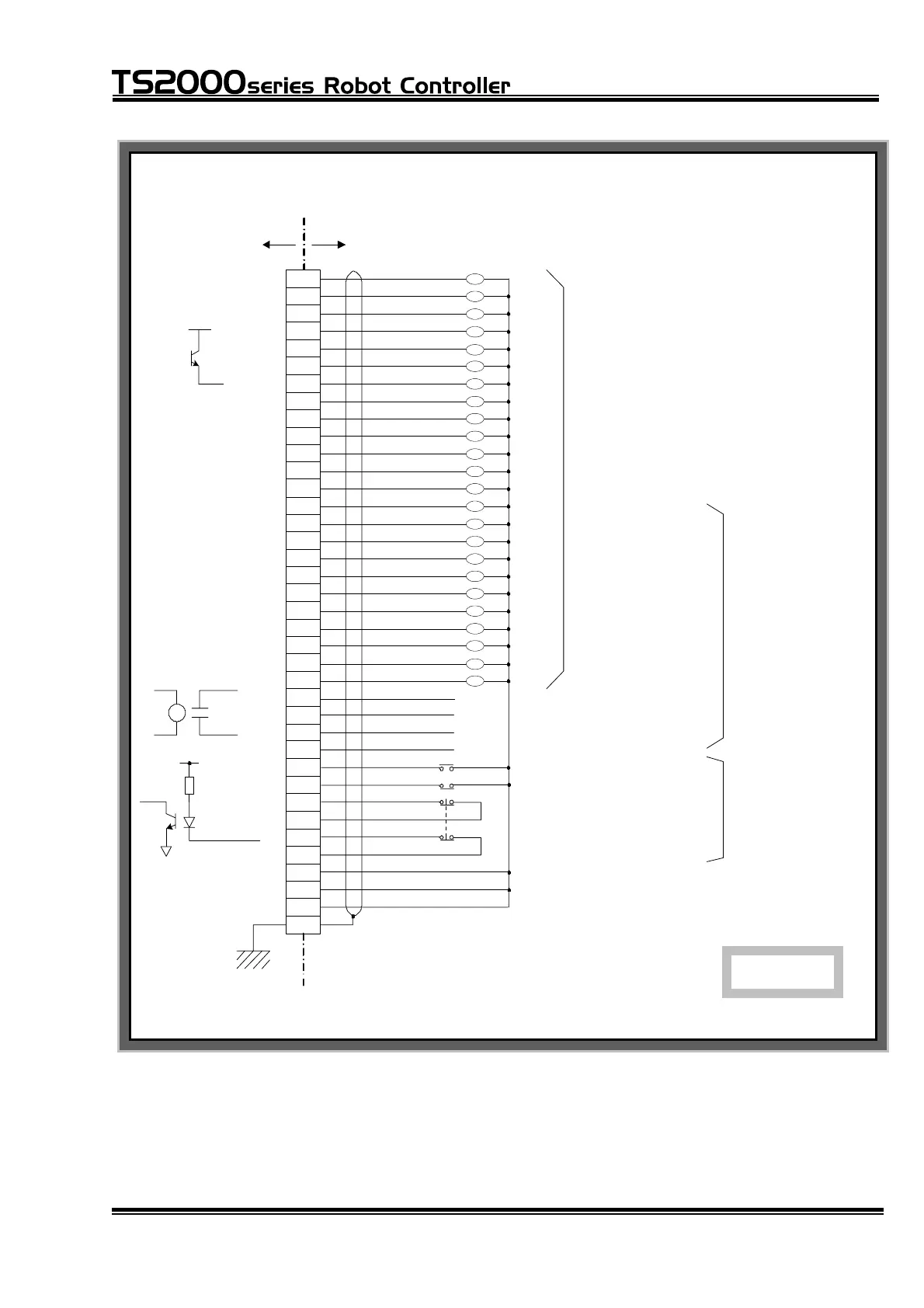

3.1.7 List of Connector Terminal Arrangement Examples
a) Power cable connector CN1
Connects to controller.
Type: JL04V–2E18–10PE–B
Maker: Japan Aviation Electronics Industry
⎦
⎤
A
B
— Single phase, AC 190 ~ 250 , 50/60 Hz
C
D — Grounding (Grounding with grounding resistance of 100 Ω or less)
!
DANGER
• Completely connect the grounding cable.
Otherwise, electric shocks or fires could be caused if a fault or leak current
occurs, in addition to malfunction by noise.
b) Motor cable connector CN2
Connects to controller.
Type: JR25RK–16S
Maker: Hirose Electric
c) Encoder cable connector CN3
Connects to controller.
Type: XM2A–2501
Maker: OMRON
C
D
B
A
1234
56789
10 11 12 13
14 15 16
12345678910111213
14 15 16 17 18 19 20 21 22 23 2524
