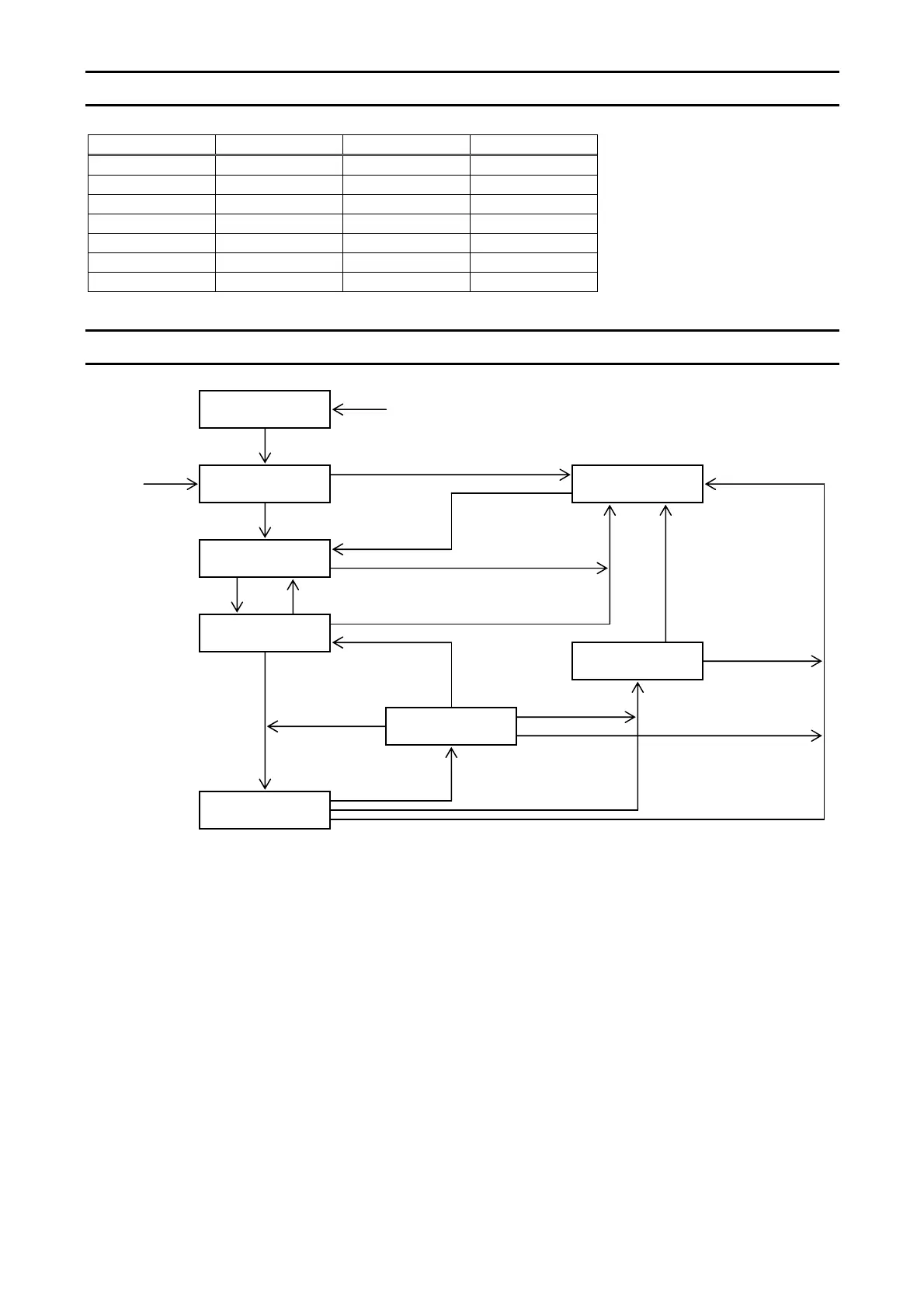

4.6.1. Run/Stop Event Matrix
Run1 Run2 Trigger Event Run Type
0 0 Stop No Action
0 -> 1 0 Run Run1
0 0 -> 1 Run Run2
0 -> 1 0 -> 1 No Action No Action
1 1 No Action No Action
1 -> 0 1 Run Run2
1 1 -> 0 Run Run1
4.6.2. Control Supervisor State Transition Diagram
Non-Existant
Startup
Main Power On
Reset
Not_Ready
Ready
Initialization Complete
Enabled
Main Power Off
Stopping
Faulted
Switch Off
Fault Detected
Fault Detected
Fault_Stop
Fault Reset
Switch On
Run
Stop
Stop
Complete
Fault
Detected
Main Power Off
Fault_Stop
Complete
