1

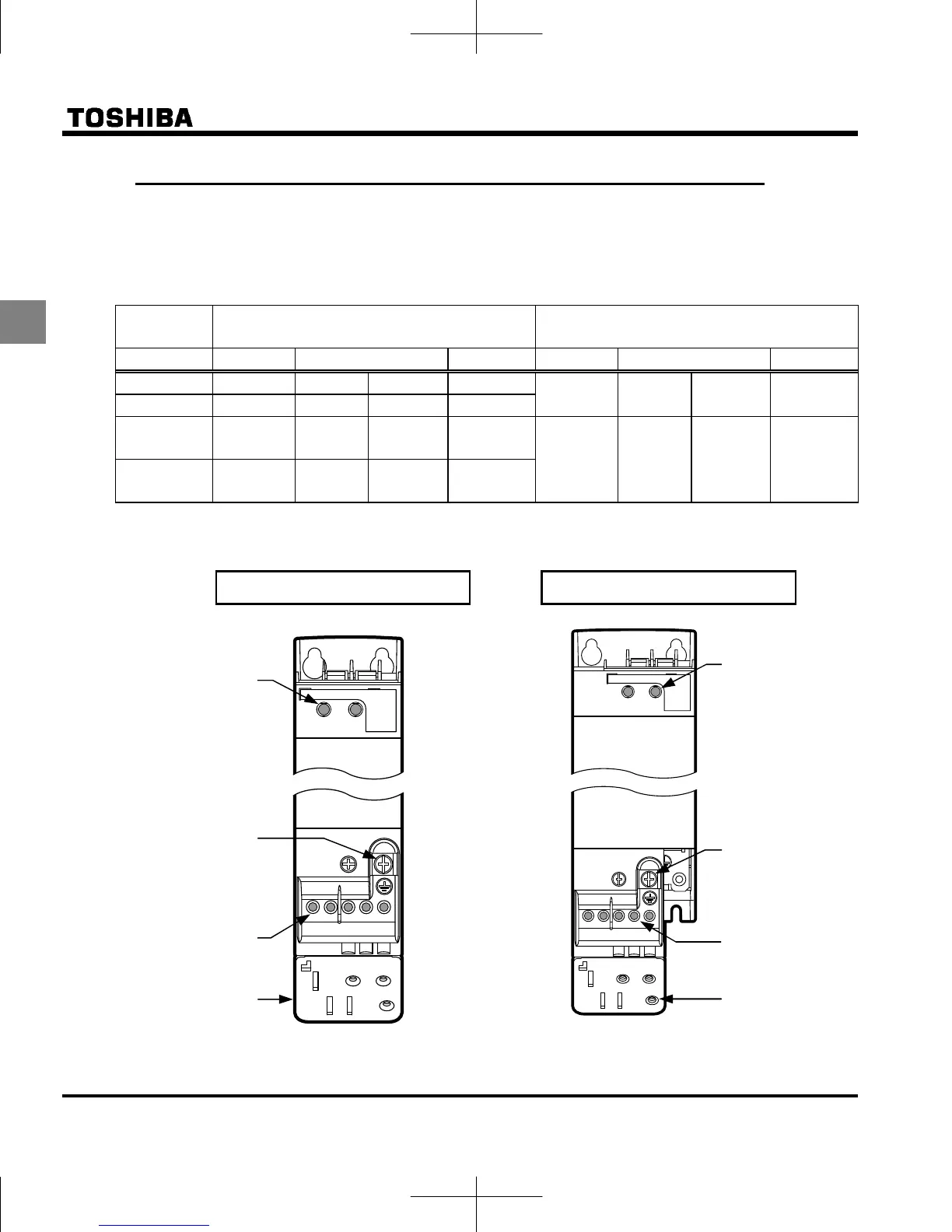

1.3.3 Power circuit and control circuit terminal boards
1) Power circuit terminal
In case of the lug connector, cover the lug connector with insulated tube, or use the insulated lug
connector.
Use a plus or minus screwdriver to loose or tighten screws.
Models
VFMB1S-2002 to 2022PL
VFMB1-4004 to 4037PL
VFMB1-4055 to 4150PL
Terminal Screw size Torque Strip length Screw size Torque Strip length
Input M3 0.6Nm 5.3lb  in 7-8mm
Output M3 0.8Nm 7.1lb  in 9-10mm
M4 1.4Nm 12.4lb  in 9-10mm
Earth
(For input)
M5 3.0Nm 26.6lb  in -
Earth
(For output)
M4 1.4Nm 12.4lb  in -
M5 3.0Nm 26.6lb  in -
Refer to section 2.3.1 for details about terminal functions.
R/L1
PBe PB U/T1 V/T2 W/T3
S/L2/N
R/L1
PBe PB U/T1 V/T2 W/T3
S/L2/N
VFMB1S-2002 to 2007PL VFMB1S-2015, 2022PL
M3 screw
Earth terminal
(M4 screw)
EMC plate
M3 screw
M3 scre
w
Earth terminal
(M4 screw)
EMC plate
M3 screw
