E6581697
G-6
7

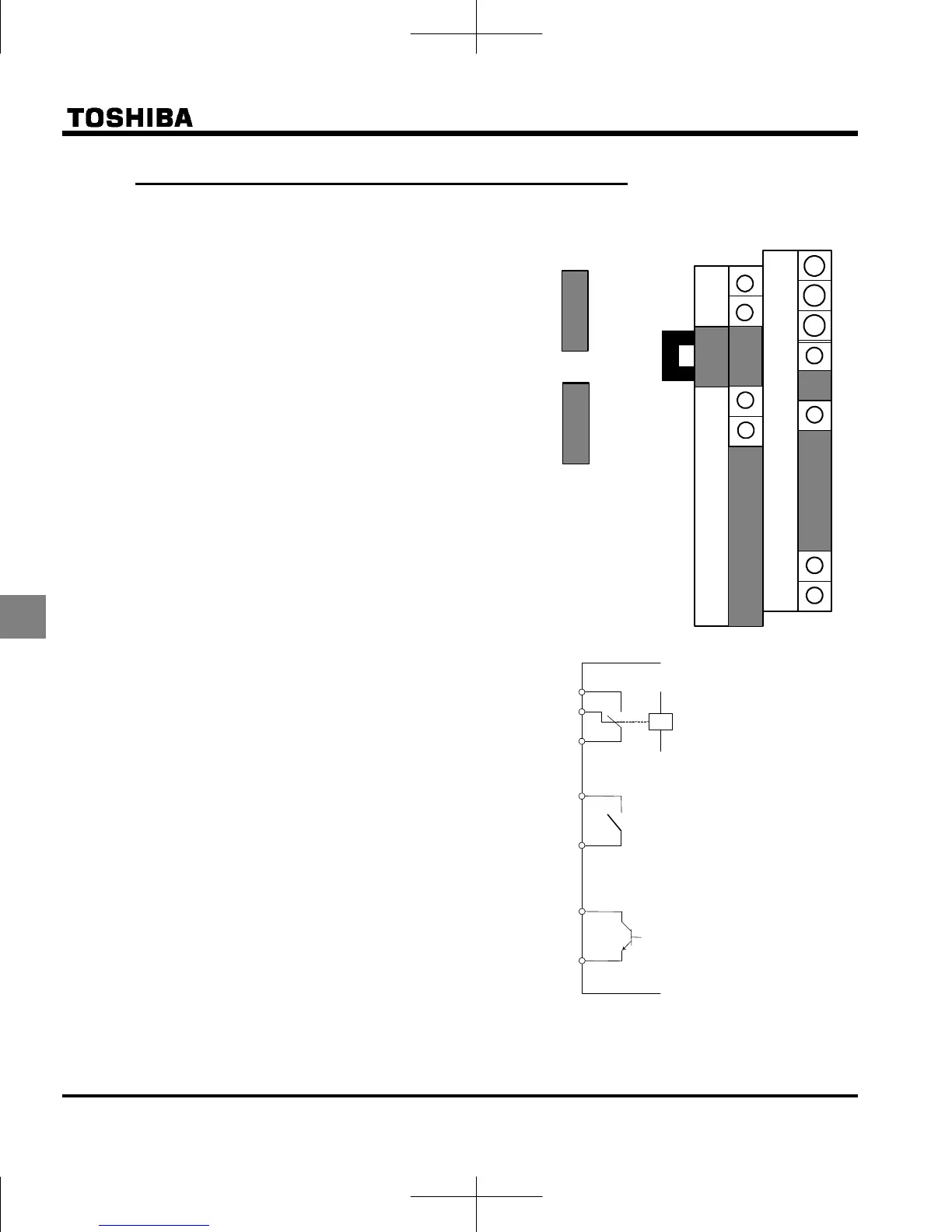

7.2.2 Output terminal function (sink logic)
This function is used to output a variety of
signals to external devices from the inverter.
With the logic output terminal function, you can
select from multiple output terminal functions.
Set two types of functions for the RY-RC, OUT
terminal and then you can output when either one
or both of them is ON.
Usage
Note1) A chattering (momentary ON/OFF of contact) is generated by external factors of the vibration and the impact,
etc. In particular, please set the filter of 10ms or more, or timer for measures when connecting it directly with
input unit terminal of programmable controller. Please use the OUT terminal as much as possible when the
programmable controller is connected.
[Control terminal block]
FLA, B, C function: Set at parameter .
Note 1)
RY function: Set at parer  and .
Note 1)
OUT function: Set at parameter  and .
FLA
FLB
FLC
FL
RC
OUT
NO
RY
FLA
FLC
FLB
CC
FM
CC
P24
CC
PP
VIB
VIC
VIA
RY
RC
OUT
NO
F
R
S1
S2
S3
RES
STO
+SU
SW2(S3)
LOGIC
PTC
SW1
SOURCE
PLC
SINK
