Toshiba TOSVERT VF-S15 series Function Manual

E658130
- 11 -

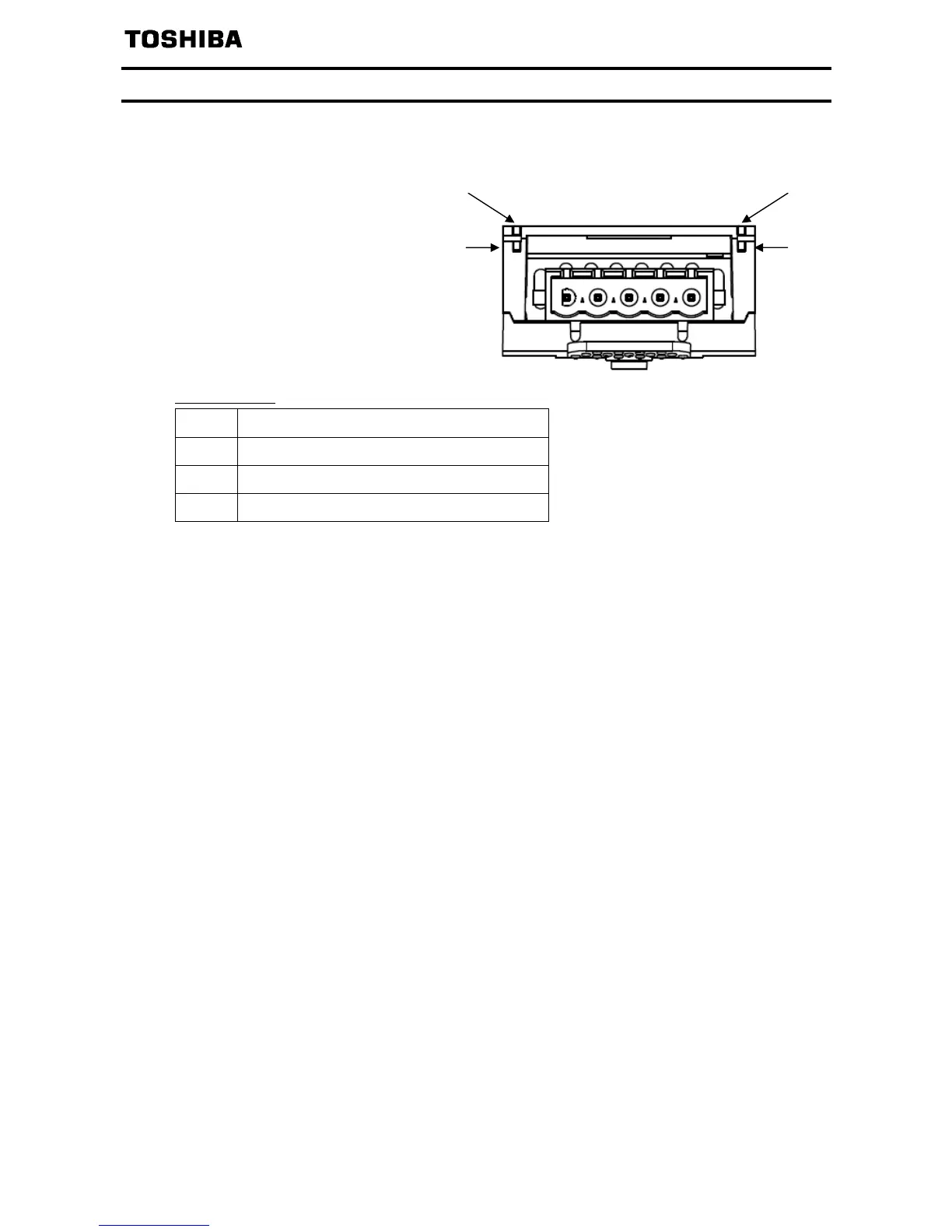

4.5. LED indicator
The LEDs shows the present status of the network and module
Refer to 7.3 for detail.
■ Layout of LED
L.RUN Light on during communication.
SD Light on during send the data of CC-Link.
RD Light on during receive the data of CC-Link.
L.ERR Light on during communication error.
SD
RD
L.RUN
L.ERR

Toshiba TOSVERT VF-S15 series Specifications

General

Series	VF-S15
Category	Inverter
Control Method	V/f control, Sensorless vector control
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit
Communication Options	Modbus
Braking Unit	Built-in
Power Rating	0.4 kW to 15 kW
Input Voltage	Single-phase 200 to 240V, Three-phase 200 to 240V, 380 to 480V
Cooling Method	Fan cooling
