Toshiba TOSVERT VF-S15 series Function Manual

E658130
- 45 -
6.9. Program example for resetting the inverter at inverter error

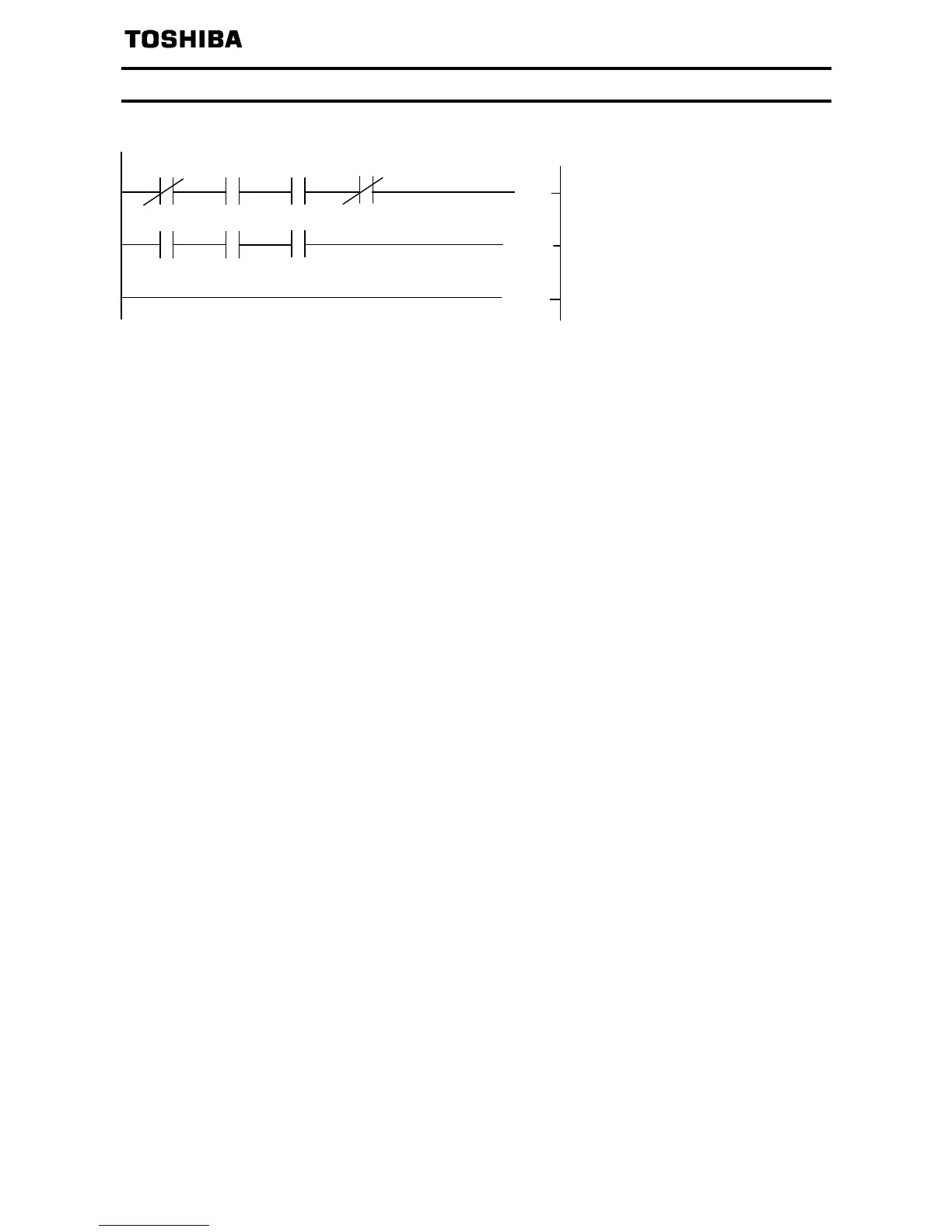

Example 9 shows a ladder logic to reset the station 2 inverter.
The above inverter reset using RY3A may be made only when an inverter error occurs.
Also, inverter reset can be made independently of the operation mode.
X0
X0F
X1
SW80.1
M
X103
X2
[ M0
[Y103A]
[ END
Check the ready of the station 2
Turn on the error reset request flag
(RY3A). Then, turn off the error
reset
request flag (RY3A) when the error
Example

Toshiba TOSVERT VF-S15 series Specifications

General

Series	VF-S15
Category	Inverter
Control Method	V/f control, Sensorless vector control
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit
Communication Options	Modbus
Braking Unit	Built-in
Power Rating	0.4 kW to 15 kW
Input Voltage	Single-phase 200 to 240V, Three-phase 200 to 240V, 380 to 480V
Cooling Method	Fan cooling
