Toshiba TOSVERT VF-S15 series Function Manual

E658130
- 8 -
4.3. Connection of CC-Link master unit and inverter

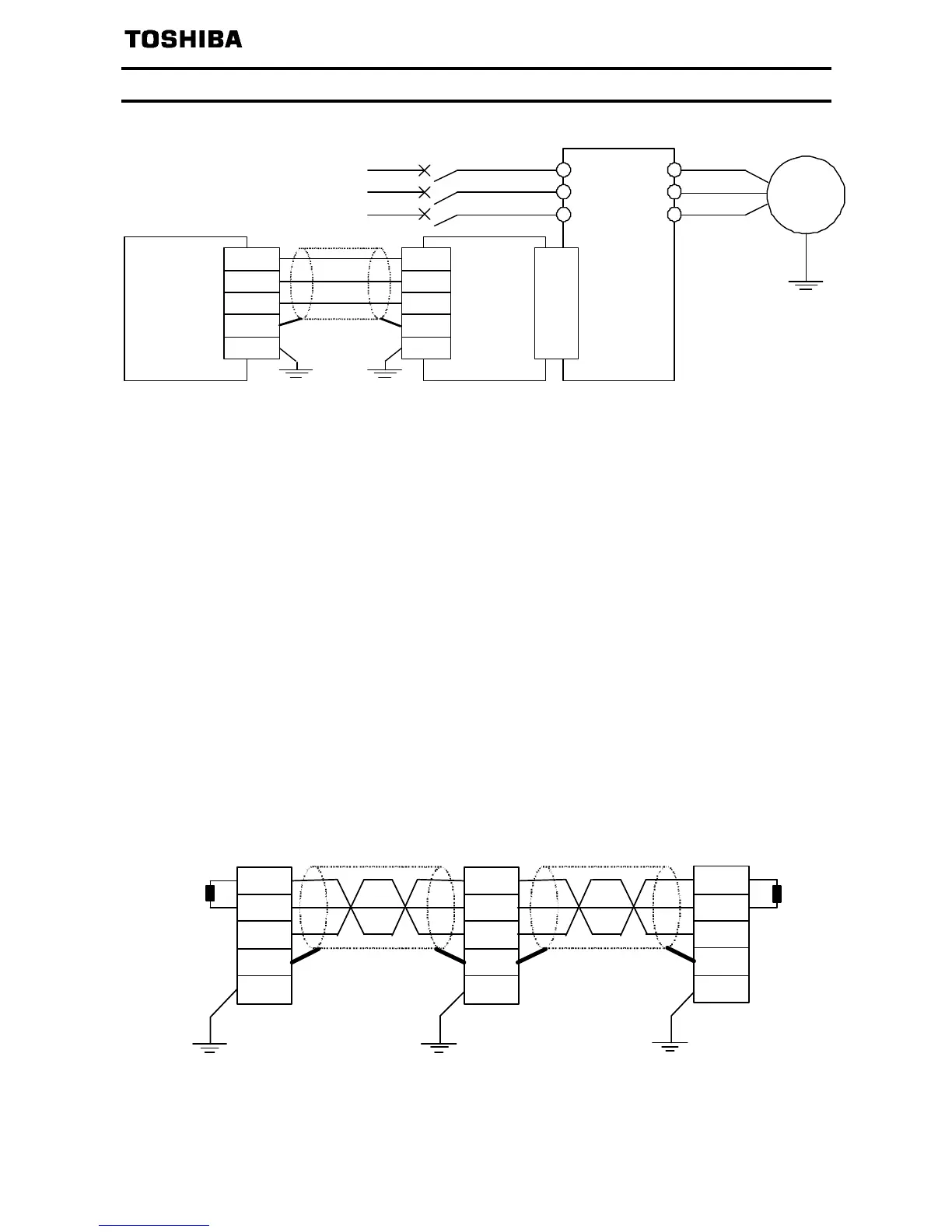

The example of the connection of the CC-Link master unit and the inverter is shown.。
CC-Link
Master
Unit
DA
DB
DG
SLD
FG
CCL003Z
DA
DB
DG
SLD
FG
Inverter
VF-S15
R/L1
S/L2
T/L3
U/T1
V/T2
W/T3
I M
Motor
*Connection of Several Inverters
Factory Automation can be applied to several inverters which share a link system as
CC-Link remote device stations and are controlled and monitored by PLC user programs.
◎ DA,DB
Shield twisted cable
◎ DG
◎ SLD / FG
Connect the shielded wire of the dedicated CC-Link cable to the “SLD” of each
module, and ground both ends of the shielded wire using type-D grounding (class 3
grounding) via “FG.”
(The ground resistance is 100Ω or less.)
◎ Terminal resistor
Connect the terminal resistor of 110Ω.
(130Ω is a resistance value for the CC-Link Ver.1.00 dedicated high performance cable.)
DA
DB
DG
SLD
FG
DA
DB
DG
SLD
FG
Mater unit Inverter
Shield twisted cable Shield twisted cable
Terminal
resistor
DA
DB
DG
SLD
FG
Inverter
Ter m ina l
resistor
110 Ω 1/2W
(130Ω 1/2W)
110Ω 1/2W
(130Ω 1/2W)
