Toshiba TOSVERT VF-S15 series Function Manual

E658130
- 35 -
6. Programming examples
This chapter provides programming examples which control the inverter with the PLC.
Item Programming Example Refer to Page
6.1 Reading the inverter status
Reading the inverter status from the buffer
memory of the master station.
- 38 -
6.2 Setting the command mode Command mode from CC-Link is confirmed. - 39 -
6.3 Setting the operation commands Commanding the forward rotation. - 40 -
6.4 Setting the reference frequency Setting to 50.00Hz. - 40 -
6.5 Setting the monitoring function Monitoring the output frequency. - 41 -
6.6 Writing a parameter value
Setting the f311 [Reverse-run prohibition
selection] to [1 : Prohibit reverse run].
- 42 -
6.7 Reading a parameter value Reading the parameter f311. - 42 -
6.8 Reading the the fault record Reading the fault record - 44 -
6.9 Inverter reset Resetting the inverter. - 45 -

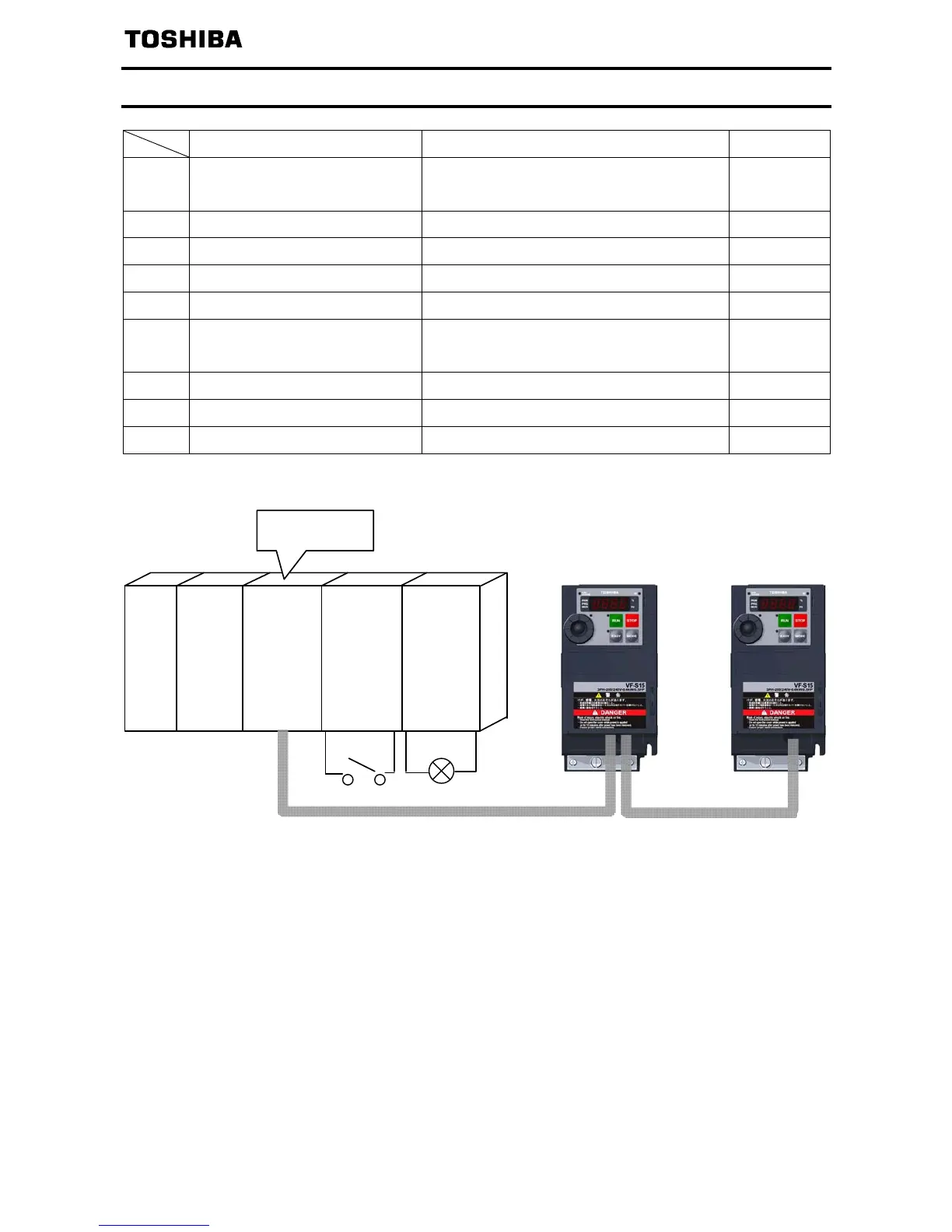

System configuration for programming example
PS Q02 QJ61 Input Output
Unit CPU BT11N Unit Unit
(X/Y00 (X20 (Y30
to 1F) to X2F) to 3F)
Master un it
Station 1
Inverter
Station 2
Inverter
X0020
CC-Link communication cable
Y30
The example of CC-Link communication network composition
･CPU Mitsubishi Electric Corp. Q02CPU
･Master unit Mitsubishi Electric Corp. QJ61BT11N
･Input module Mitsubishi Electric Corp. QX40
･Output module Mitsubishi Electric Corp. QY40P
･CC-Link dedicated cable Kuramo Electric Corp. FANC-110SBH
･Inveter Toshiba TOSVERT VF-S15(2 uints)
One station is occupied
･CC-Link option Toshiba CCL003Z(2 units)

Toshiba TOSVERT VF-S15 series Specifications

General

Series	VF-S15
Category	Inverter
Control Method	V/f control, Sensorless vector control
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit
Communication Options	Modbus
Braking Unit	Built-in
Power Rating	0.4 kW to 15 kW
Input Voltage	Single-phase 200 to 240V, Three-phase 200 to 240V, 380 to 480V
Cooling Method	Fan cooling
