Toshiba TOSVERT VF-S15 series Function Manual

E658130
- 42 -
6.6. Program example for parameter writing

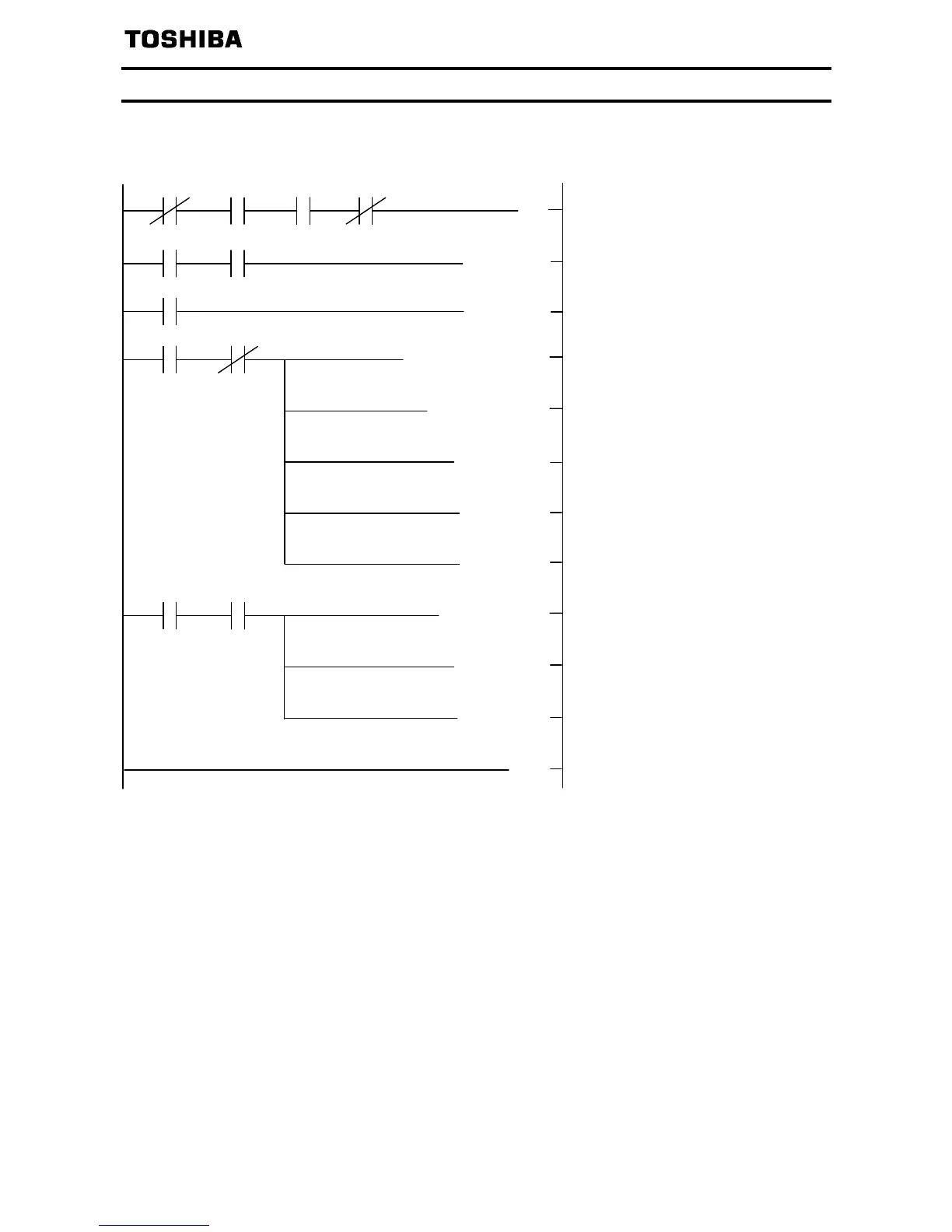

Example 6 shows a ladder logic to chang the setting of f311 of station 1 inverter to 1
f311: Reverse-run prohibition reading code number: 2311H (hexadecimal)
Reverse-run prohibition set data: 1 (decimal)
Refer to
5.5.8 for detail.
X0
X0F
X1
SW80.0
M0
X20
M300
M301
X100F
[ MOV H2311 W102]
M302
X100F
[ MOV W2 D2]
( M0)
[ PLS M300]
[ SET M301]
[ MOV K1 W103]
[ SET Y100F]
[ RST M301]
[ SET M302]
[ RST Y100F]
[ RST M302]
[ END]
Check the ready of the Station 1
Write
f311 write code (2311H) to
RWw2 and r
everse-run prohibition
setting
Turn on the instruction code
execution
Read reply code (RWr2) to D2 when the
Instruction code execution completion
flag
Turn off the instruction code
execution
Example

Toshiba TOSVERT VF-S15 series Specifications

General

Series	VF-S15
Category	Inverter
Control Method	V/f control, Sensorless vector control
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit
Communication Options	Modbus
Braking Unit	Built-in
Power Rating	0.4 kW to 15 kW
Input Voltage	Single-phase 200 to 240V, Three-phase 200 to 240V, 380 to 480V
Cooling Method	Fan cooling
