Toshiba TOSVERT VF-S15 series Function Manual

E658130
- 44 -

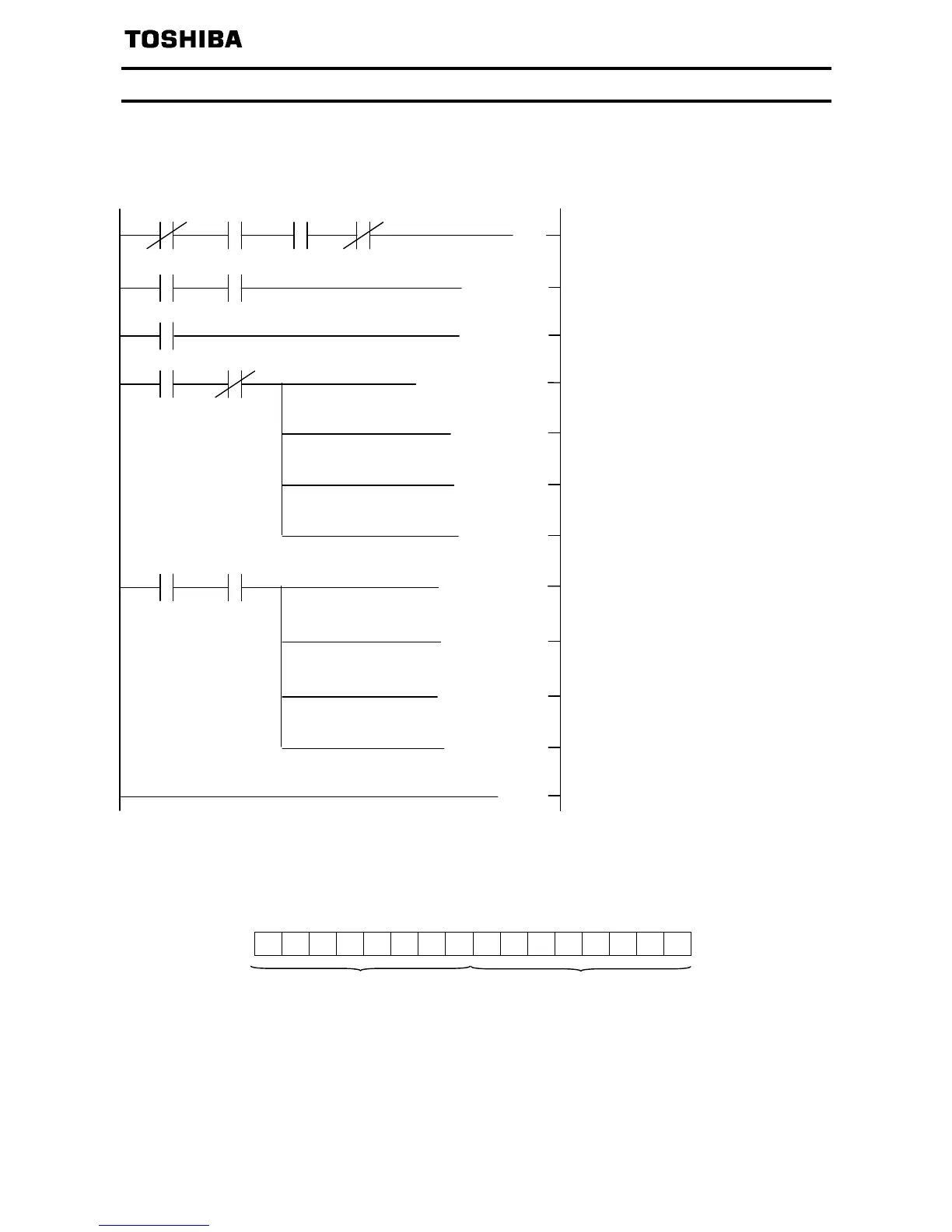

6.8. Program example for trip information reading
Example 8 shows a ladder logic to read the trip information of station 1 inverter to D1.
Trip history No. 1, No. 2 reading code number: 74H (hexadecimal)
The reply code at the time of instruction code execution is set to D2.
For example of trip information
Read dara: 2D0EH
b15 b8 b7 b0
0 01 0 1 10100001110
(2DH) (0EH)
Past trip code Current trip code
e-13(
Error code: 2DH) ol2(Error code: 0EH)
" Over speed fault " " Motor overload "
Refer to 5.5.9 for detail. }
X0
X0F X1
( M0)
Check the ready of the Station 1
SW80.0
M0
X20
[ PLS M300]
M300
[ SET M301]
M301
X100F
[ MOV H74 W102]
[ SET Y100F]
[ RST M301]
[ SET M302]
M302
X100F
[ MOV W2 D1]
[ RST Y100F]
[ RST M302]
[ END]
[ MOV W3 D2]
Write trip history No.1, No.2 read
code (H74) to RWw2.
Turn on the instruction code execution
request (RY0F)
Read alarm data (RWr3) and reply code
(RWr2) to D1 and D2 when the
instruction code execution completion
flag (RX0F) turns on.
Turn off the instruction code execution
request (RY0F)
Example

Toshiba TOSVERT VF-S15 series Specifications

General

Series	VF-S15
Category	Inverter
Control Method	V/f control, Sensorless vector control
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit
Communication Options	Modbus
Braking Unit	Built-in
Power Rating	0.4 kW to 15 kW
Input Voltage	Single-phase 200 to 240V, Three-phase 200 to 240V, 380 to 480V
Cooling Method	Fan cooling
