TRANSPORTATION AND INSTALLATION MANUAL
111
Mounting the Dummy Panel to the Controller
9.3.4.
After the control panel is dismounted from the controller, mount the dummy panel to the
location where there was the control panel as shown in Fig. 9.8. The dummy panel
and mounting parts are provided as options.
a) Insert the connector of the cable, which was removed when detaching the control
panel from the controller, from the rear side of the dummy panel and fix both ends of
the connector with screws. To mount the connector, use cross truss screws (φ3×6,
ZN3-B).
b) Fix the dummy panel to the controller with the screws.

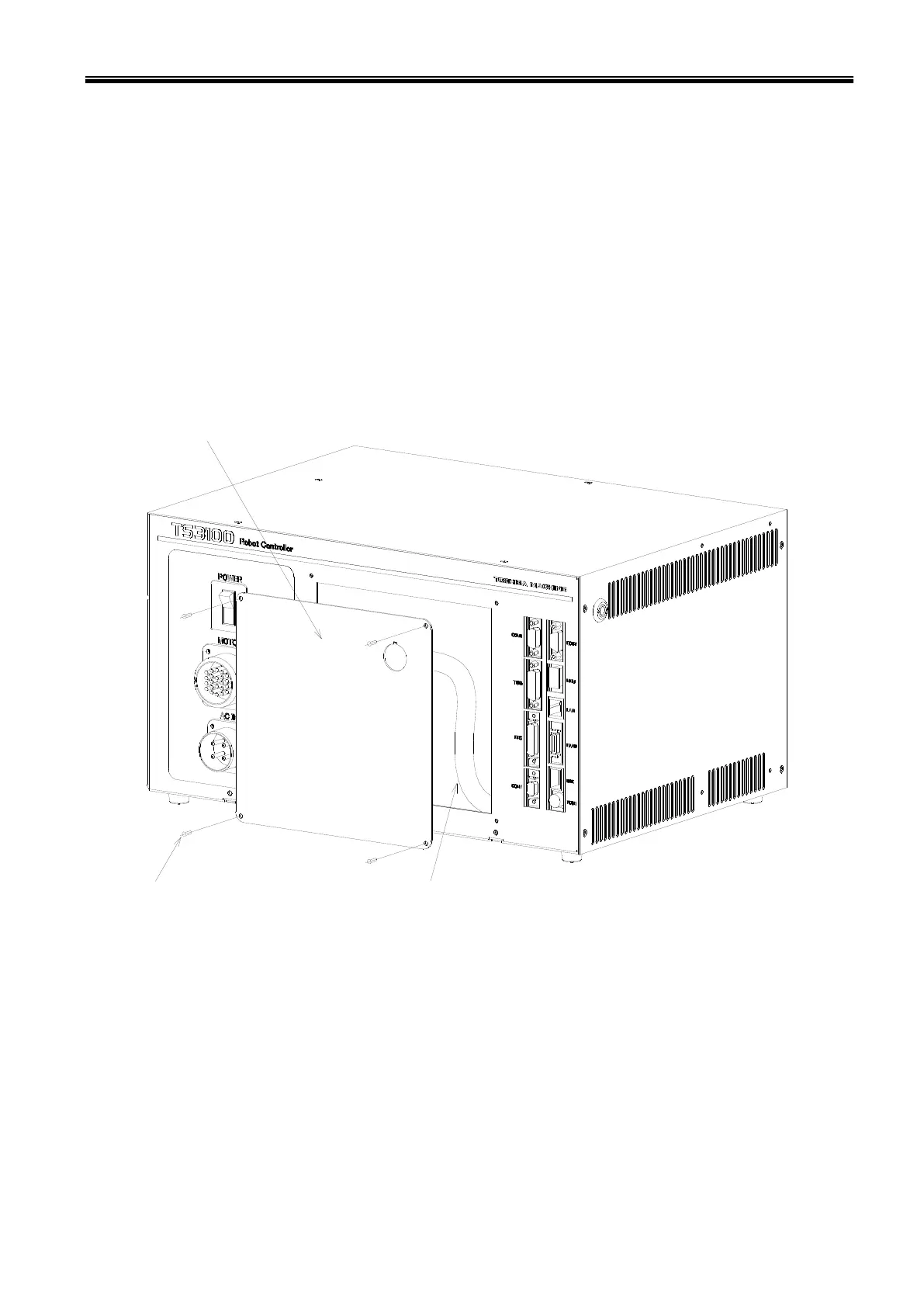

Fig. 9.8 Mounting the dummy panel (TS3100)
To Next Page
