Toshiba TVL Series - Examples of Connector Terminal Arrangement (for the TSL3100)

TRANSPORTATION AND INSTALLATION MANUAL
78

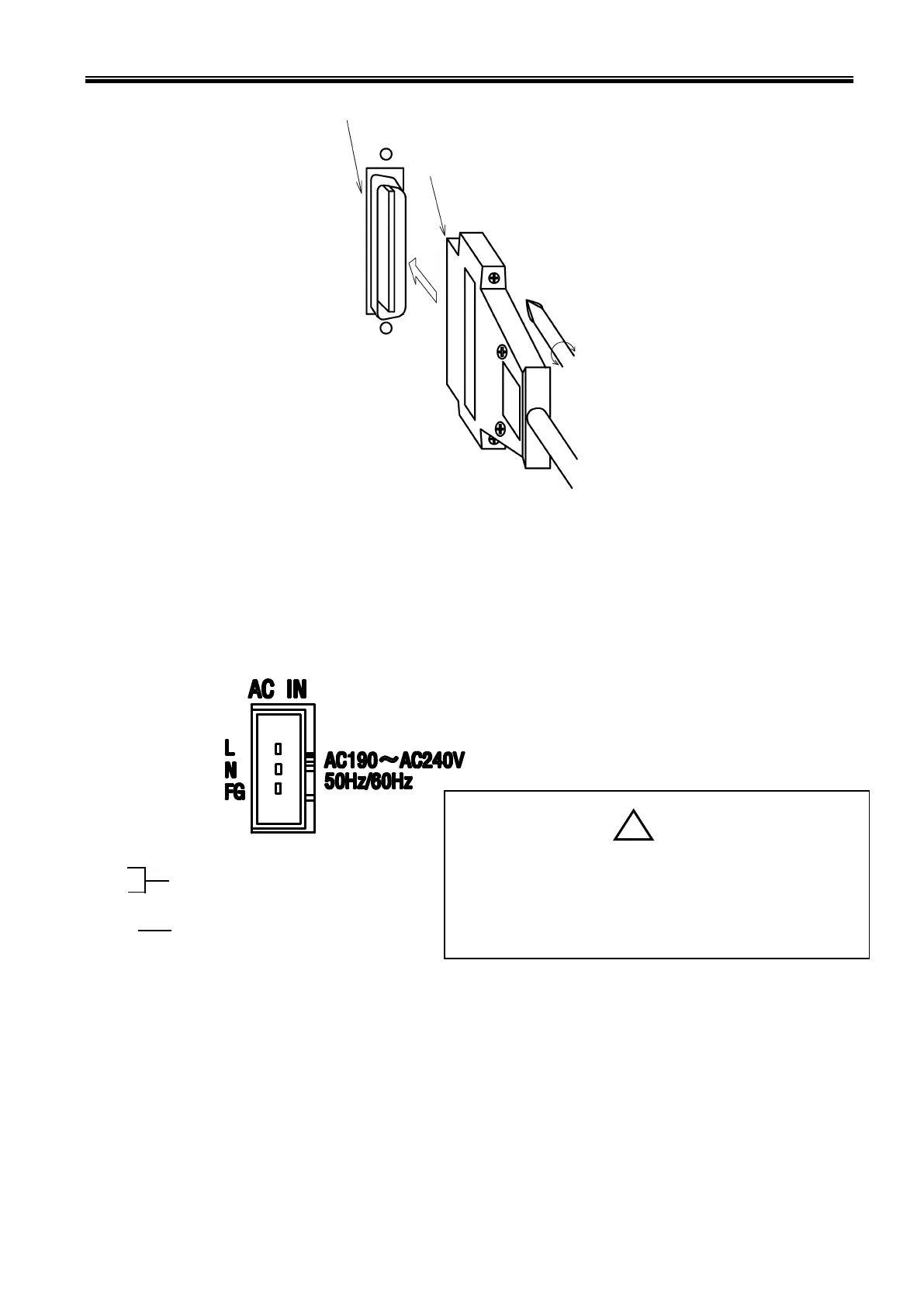

Fig. 7.4 Connecting and disconnecting a square connector (TSL3100)
Examples of Connector Terminal Arrangement (for the TSL3100) 7.1.7.
a) Power cable connector ACIN
Connects to controller.
Type: 03JFAT-SAYGF-I
Manufacturer: J.S.T. Msg.
• Completely connect the grounding cable.
Otherwise, an electric shock or fire may be
caused if a fault or electric leak occurred. Or
mis-operation may be caused by noise.
!
DANGER
Controller side connector
Cable side connector
Connector
Tighten.
Loosen.
Single-phase, 190 to 240 VAC, 50/60 Hz
Grounding (Class D or higher level)
1(L)
2(N)
3(FG)
