1.2. Name of Each Part

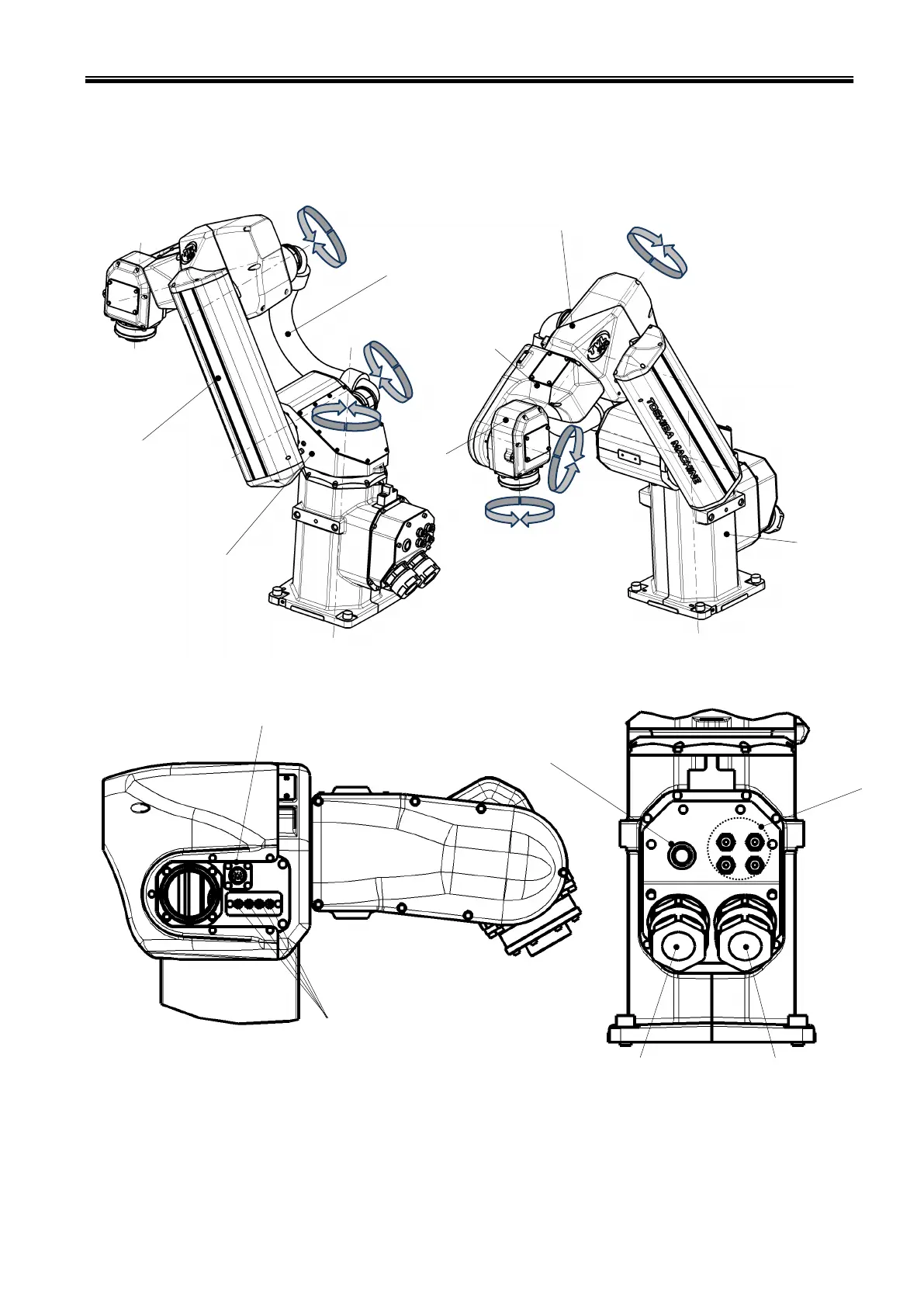

Fig. 1.4 shows the name of each part of the robot of the TVL series.
Fig. 1.4 Name of each part (TVL500)
Base swivel
Arm 1
Axis 1
(rotation)
Axis 3
(rotation)
Axis 2
(rotation)
Base
Arm 2 (1)
Axis 6
(rotation)
Axis 5
(rotation)
Axis 4
(rotation)
Arm 2 (2)
Arm 3
Cable duct
HAND I/O connector
Tool tube joint (4 mm diameter):
4 locations
Tool tube joint
(4 mm diameter):
4 locations
HAND signal/brake
cable connector
Motor power/encoder
cable connector
Grommet for wiring hole
