Toshiba TVL Series - Installation Surface Dimensions

TRANSPORTATION AND INSTALLATION MANUAL
63
5.3. Installation surface dimensions
To install the robot controller TSL3100E on the control panel or others, mount the fixture
using the rubber leg screw hole on the bottom surface, and fix the controller on the
control panel. The rubber leg located in the middle of controller should not be removed
Note) The fixture (two-piece set) is optional. You are requested to assemble it.

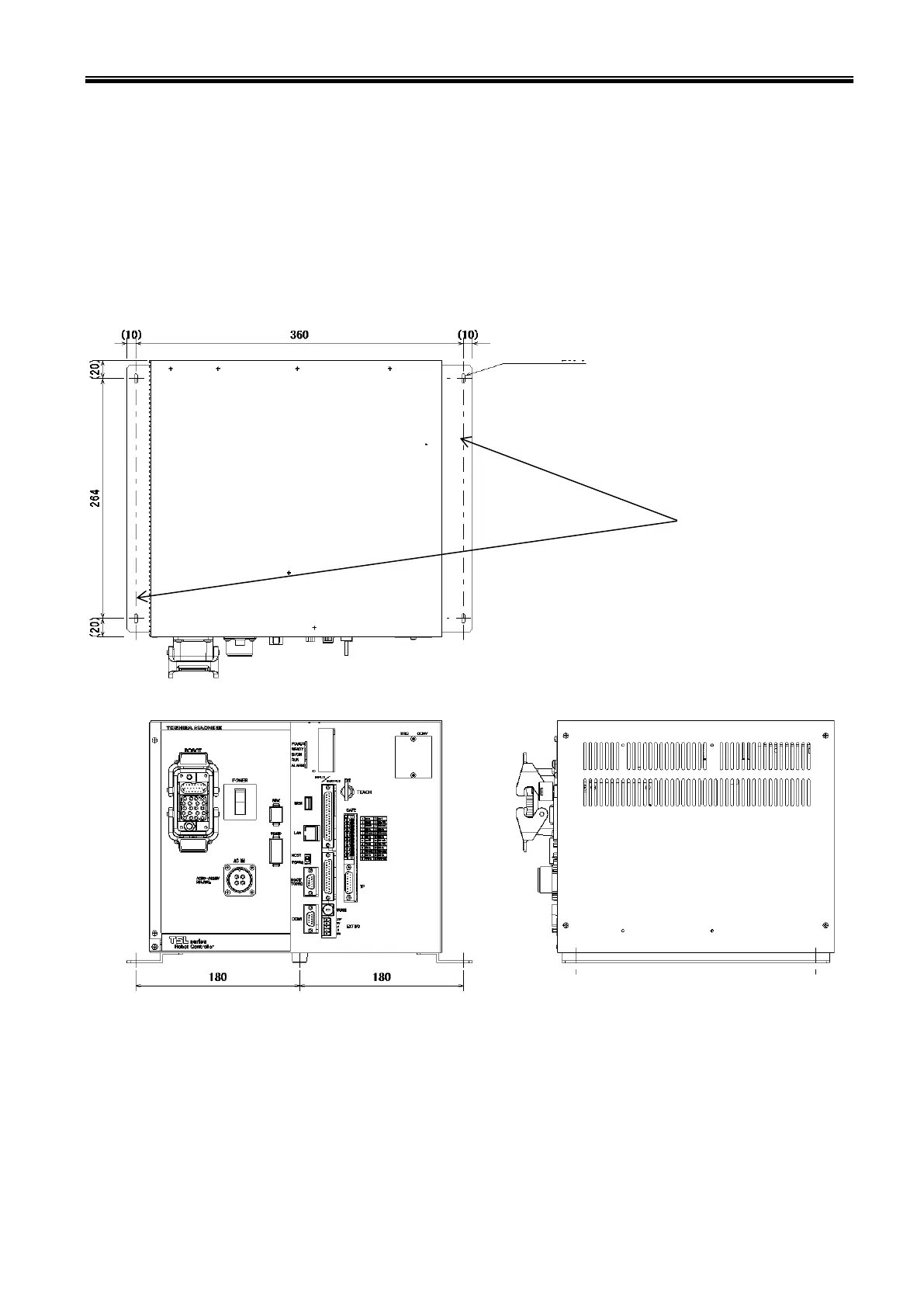

Fig. 5.3 Screw hole dimensions for securing controller (TSL3100E)
Fixture
4-4×10 oblong hole
