tousek / E_PULL-T5-T8-T10_49002305 / 19. 12. 2013 - 13 -
Important
If no stop switch is connected, terminals
31/37 have to be wire-bridged.
As stop switch a maker contact has to be used. If the switch
is actuated, the gate stops in any desired position.
As CLOSE-buttons you may use pushbuttons or
key switches as well as external radio receivers
with potential free make contacts can be used.
31
37
As impulse emitters pushbuttons or key switches as well as external radio receivers with potential free make
contactscan be used.

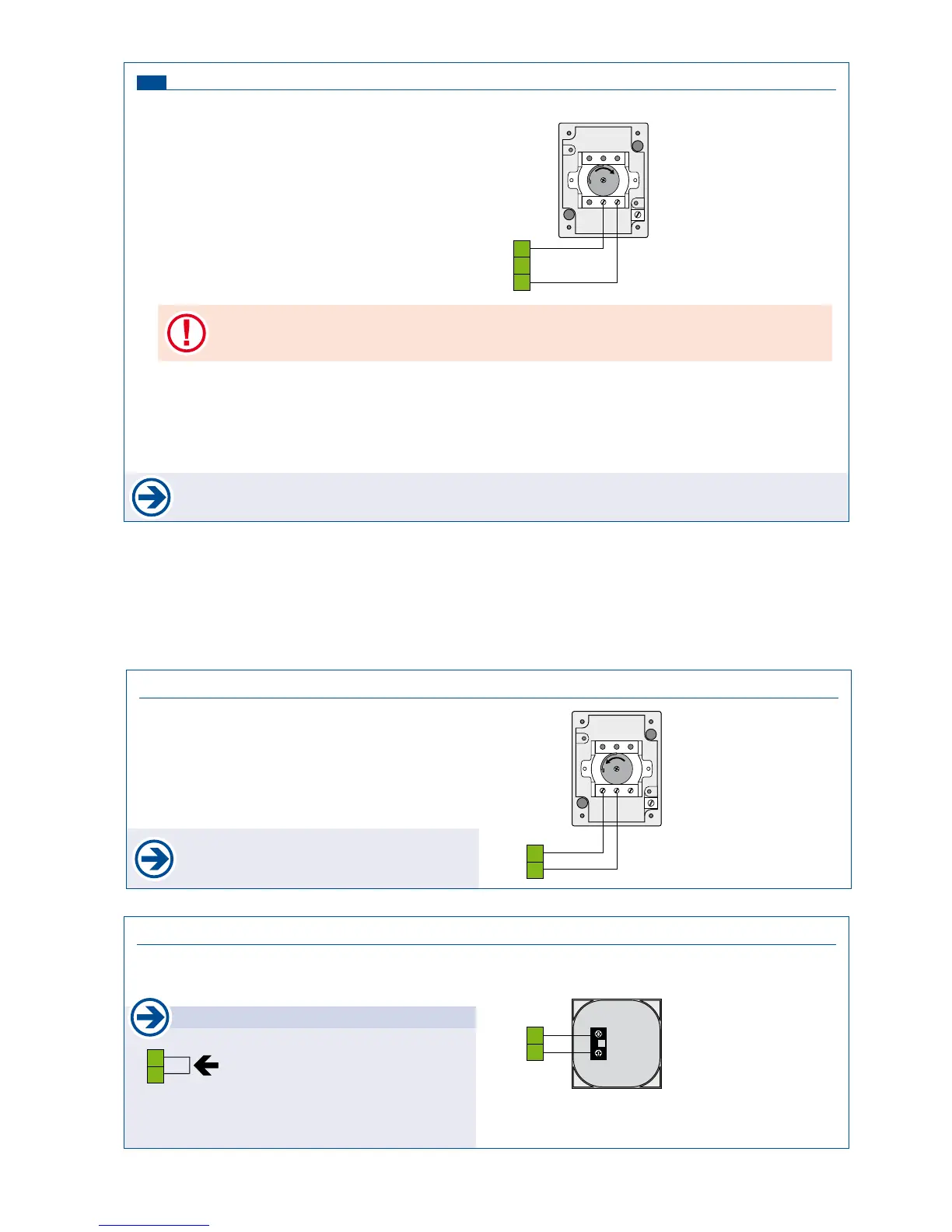

Pedestrian opening button (terminals 30/34) Buttons / switches
OPEN/ STOP / CLOSE impulse repetition:
After a command of the pedestrian opening button the
motor for pedestrian opening starts with an open- or
closing movement. If the button is pressed again during
this movement, the motor stops. With the next command
the motor drives in the opposite direction of the last gate
movement.
OPEN / CLOSE / OPEN impulse repetition:after a
command of the pedestrian opening button the motor
starts an open or close movement. If the button is pressed
again during this movement, the motor reverses.
OPEN: Only open commands are accepted of the pedestrian opening button. Closing the pedestrian entry with the
button is not possible.
DEADMAN: The motor opens as long as the pedestrian button is pressed – closing the gate with the pedestrian button
is not possible. As soon as the switch is released, the gate stops.
pedestrian opening button
(e.g. key switch EPZ 1-1T)
• In this operation mode it is not possible to stop the motor with the pedestrian button – it always
travels until reaching an end position. (Opened or closed position).
• for the function OPEN/CLOSE/OPEN we strongly suggest the installation of a photocell!
STOP-switch (terminals 31/37) Buttons / switches
• when pressing the stop switch the gate stops in any
desired position.
STOP-switch
(e.g. switch KDT-1N)
37
31
CLOSE-button (terminals 30/33) Buttons / switches
• A command with the CLOSE-switch engages clo-
sing of gate. In deadman mode the gate closes as
long as the CLOSE-switch is pressed/switched.
As soon as switch is released the gate movement
stops.
CLOSE-button
(e.g. key switch EPZ 1-2T)
2P1
33
30
P1
34
33
30
