tousek PULL T5 - Gate Operation Logic; Impulse Switch and Opening Direction; Operating Modes and Partial Opening; Automatic Mode and Pause Time Logic

tousek / E_PULL-T5-T8-T10_49002305 / 19. 12. 2013 - 19 -
Impulse switch/button Operation logic
 Stop at opening and start of pause time: An impulse during the opening movement stops the gate and starts pause
time in automatic operation. When the pause time has run out, the gate closes automatically.
 Impulse suppression at opening: Commands received during the opening movement are suppressed,
commands during closing are accepted.
 Pause time extension: A command during pause time restarts the pause time. If this menu point is chosen, an impulse
suppression during opening is active at the same time.
G

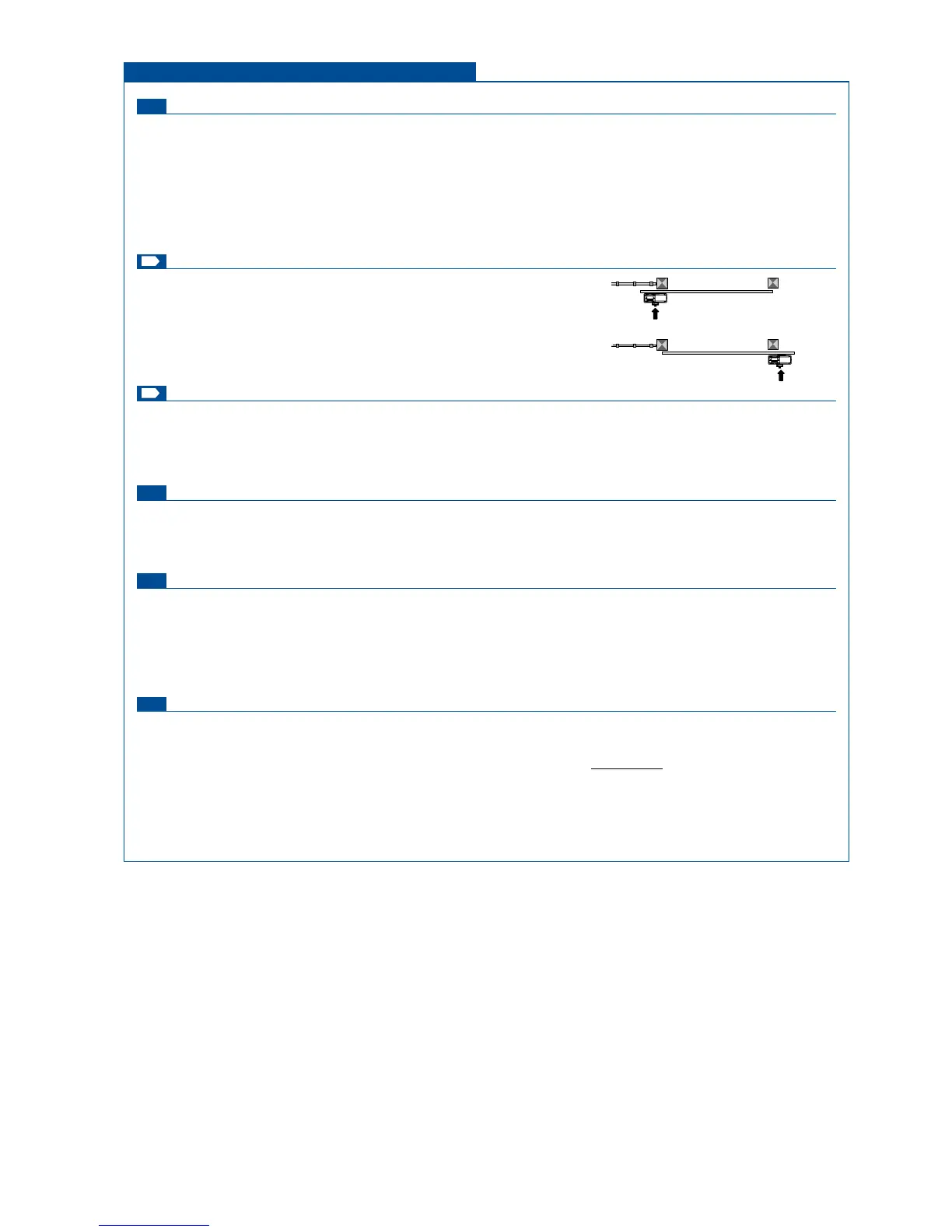

Opening direction Operation logic
 <<<
–
left: gate opens to the left side (seen from inside)

–
>>> right: gate opens to the right side (seen from inside)
This adjustment is ONLY adopted in CLOSED-position.
G
Operating mode Operation logic
 Impulse mode: Impulse through impulse switch/button or CLOSE-button to start closing of gate.
 Automatic mode, pause time 1-255s adjustable [5 steps]: gate closes automatically after the adjusted pause
time
Partial opening  30% (factory setting) Operation logic
 10–100% adjustable [1 steps]: value denes the partial opening of the total opening.
This adjustment is ONLY adopted in CLOSED-position.
Automatic mode  Operation logic
 Complete/partial opening: either with complete as well as partial opening, the gate closes automatically after the
adjusted pause time.
 Only complete opening: only after complete opening, the gate closes automatically after the adjusted pause time.
 Only partial opening: only after partial opening the gate closes automatically after the the adjusted pause time.
Pause time logic  Operation logic
 no inuence
 Permanent open in automatic mode: if this function is activated, the control unit goes from automatic mode into impulse
mode with activated pause time through impulse in open gate position for this cycle , hence if gate is open then an
impulse will end the automatic mode - the gate remains open. Only the next impulse will close the gate and the control unit
goes back to automatic mode. With this function e.g. the entrance to a company site can remain open during the day (1st
impulse in gate open position) and closed in the evening (2nd impulse). The control board switches back to automatic mode
(autom. opening and closing of gate).
left opening
right opening
Operation logic Connections and adjustments
