- 4 - tousek / E_PULL-T5-T8-T10_49002305 / 19. 12. 2013
Characteristics PULL T5, -T8, -T10
• Programmable control panel accessible from exterior with illumina-
ted display in english
• Direct connection of 8,2 kOhm contact barriers (safety sensing
edges (2-channels)
• Three operating modes (impulse, automatic and dead man)
• Adjustable partial opening
• Built in control board in separate housing
• Safety system ARS (automatic reversal system)
• Self locking worm gear
• Emergency release, lockable with prole half cylinder
• Self learning end positions (limits)
• Drive unit (gearbox unit) made of steel and runs in an oil bath
• Permanently selearning force
• Adjustable soft stop (no loss of force even with reduced revolution
speed)
• worm gear and worm wheel made of tempered steel
•

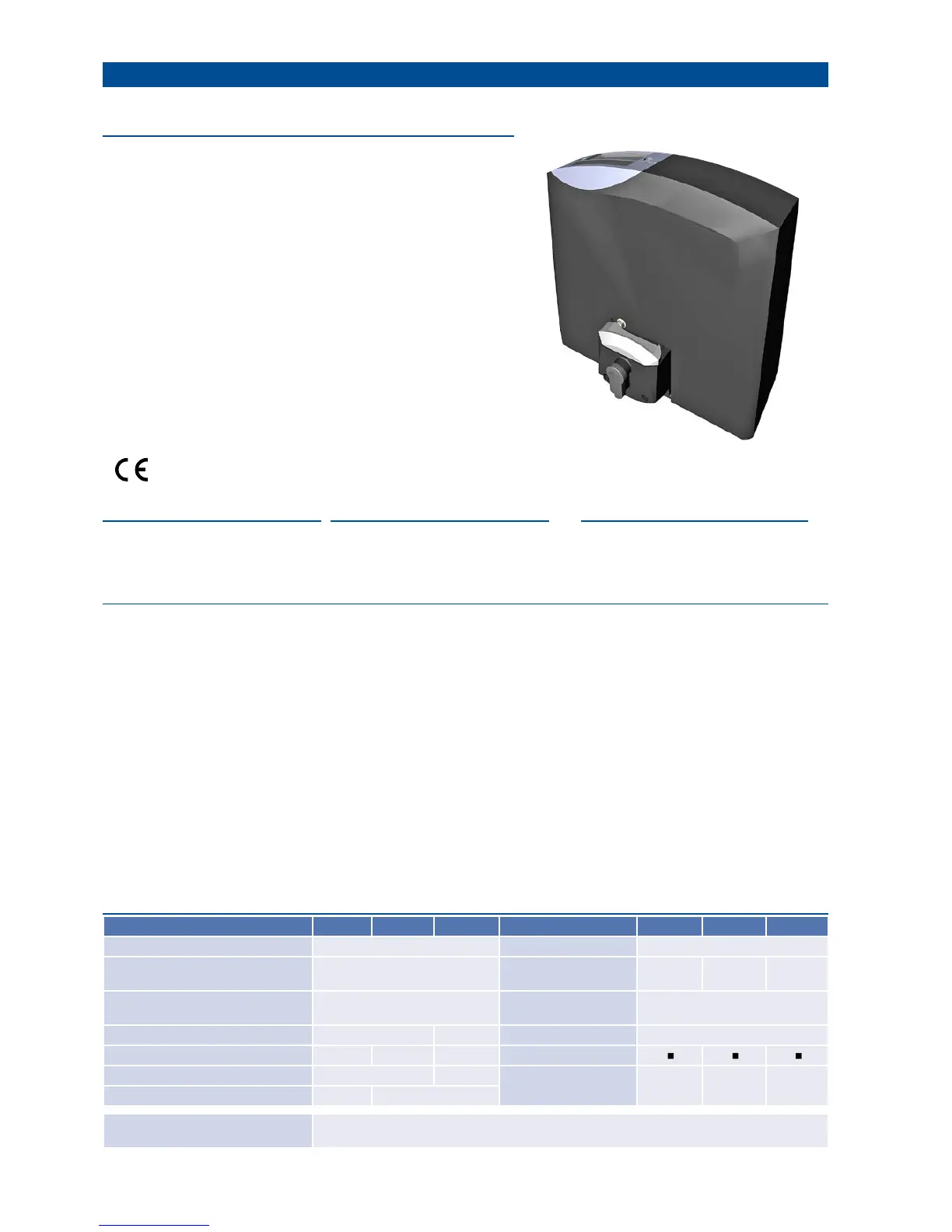

1. General Sliding gate operator PULL T5, -T8, -T10
General
During the development of the new operator generation Tousek PULL T5, -T8, -T10 special attention has been paid to a quick
and simple installation and a troublefree operation, together with the proven quality and reliability. Accordingly, many clever
details have been built into the operator - from the automatic learning of gate end positions, to the control board with removable
clamps an integrated safety sensing edge analysis, to an easy programmable text display - which make it particularly user-
friendly. The drive unit itself consists of an electric motor and a worm gearing, accommodated in a robust aluminium housing,
and - together with the integrated microprocessor control unit and the safety reverse system ARS - forms a compact device
with small overall dimensions.
The safety reverse system ARS senses obstacles during opening and closing of the gate and permits a continuous
adjustment of the drive force. Following the Tousek tradition, all operator components have been built in a particu-
larly robust and resistant way to guarantee the safe and reliable operation even in the most adverse weather conditions.
Additional improvements are for example: control board with display is accesible from outside, the separate control board
housing, which double protects this sensible part, or an oil bath which ensures that the motor/gearing components can move
in an optimal way in all temperatures with perfect lubrication and cooling effect. The installation of the PULL T5, -T8, -T10 is
possible for new or already exsting sliding gates in a simple and fast way.
Characteristics PULL T8
• up to 800kg and 40% duty cycle
Characteristics PULL T10
• up to 1000kg and 40–60% duty cycle
Technical data
Sliding gate operator PULL- T5 T8 T10 T5 T8 T10
Control board integrated Max. drive 30m
Power supply 230V a.c., 50Hz
duty cycle in
S3 mode
20
cycles/day
40% 40–60%
max. current consumption (excl.
equipment)
1,9A Ambient temperature -20°C +40°C
Gear wheel Z20M4 Z16M4 Protection class IP44
Max. gate weight 500kg 800kg 1000kg Torque sensor
Speed 11m/min 9m/min
Article no. 11110370 11110380 11110390
Torque 20Nm 25Nm
Optional equipment
pluggable receiver • additional module für courtyard/control lamp • additional module for gate
status • bracket incl. top hat rail • radio transmission system TX 310 • inductive system TX 400i
Characteristics PULL T5
• Up to 500kg and 20 cycles/day
