Additional module
Courtyard lamp/control lamp hence gate status display
• The use of one of the addtional modules is optional.
• Depending on which device, e.g. a courtyard-/Control lamp is chosen or evaluation of gate status should be effected,
the corresponding module has to be plugged to the according slot/plug of control board.
• Additionally the corresponding value has to be selected in menu point „Additional module“.

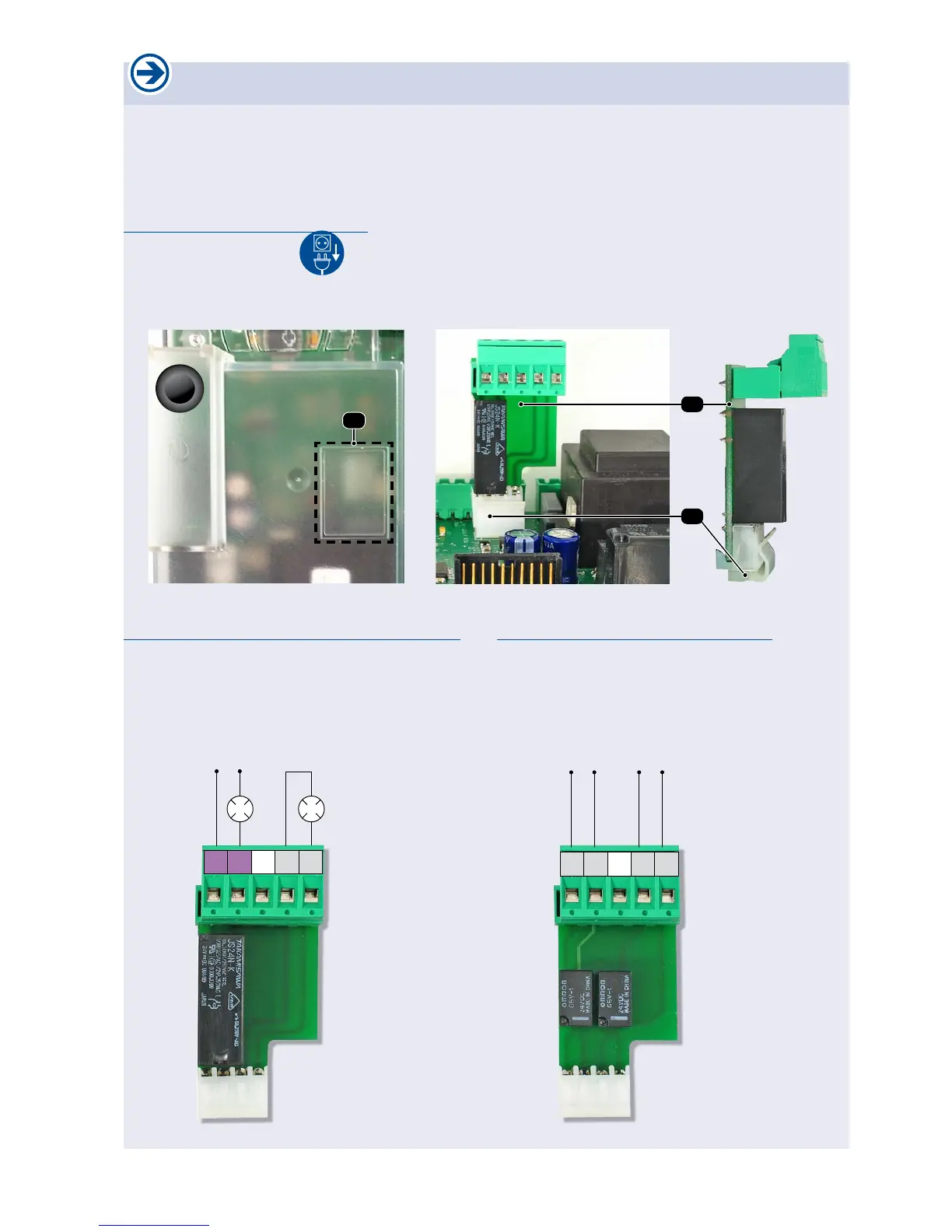

Connecting an additional module
• turn off power supply !
• cut the mark (6b) open.
• Plug additional module (ZM) through opening onto the
slot (SZ).
Additional module Courtyard lamp/Control lamp
• On the terminals 12/13 a courtyard lamp (H)
can be connected: 230V, max. 100W
• On the terminals 70/71 a control lamp (K)
can be connected: 24Vd.c., max. 2W
L N
12 13 70 71
H K
– +
Additional module Gate status display
• with potential free signal contacts K1 (Kl. 90/91)
and K2 (Kl. 92/93) the gate staturs can be evaluated in
two ways (see menu point „Additional module“).
• Contact load: 24Va.c./d.c., max. 10W
90 91 92 93
Signal contact K1
Signal contact K2
ZM
SZ
6b
