K
KM
F
FU SZ
S
D
C
Attention
*) After connection, the wires have
to be xed with binders.
This should prevent a 230V line
from getting in contact with a
low voltage line, in case that
a wire loosens itself from the
terminal

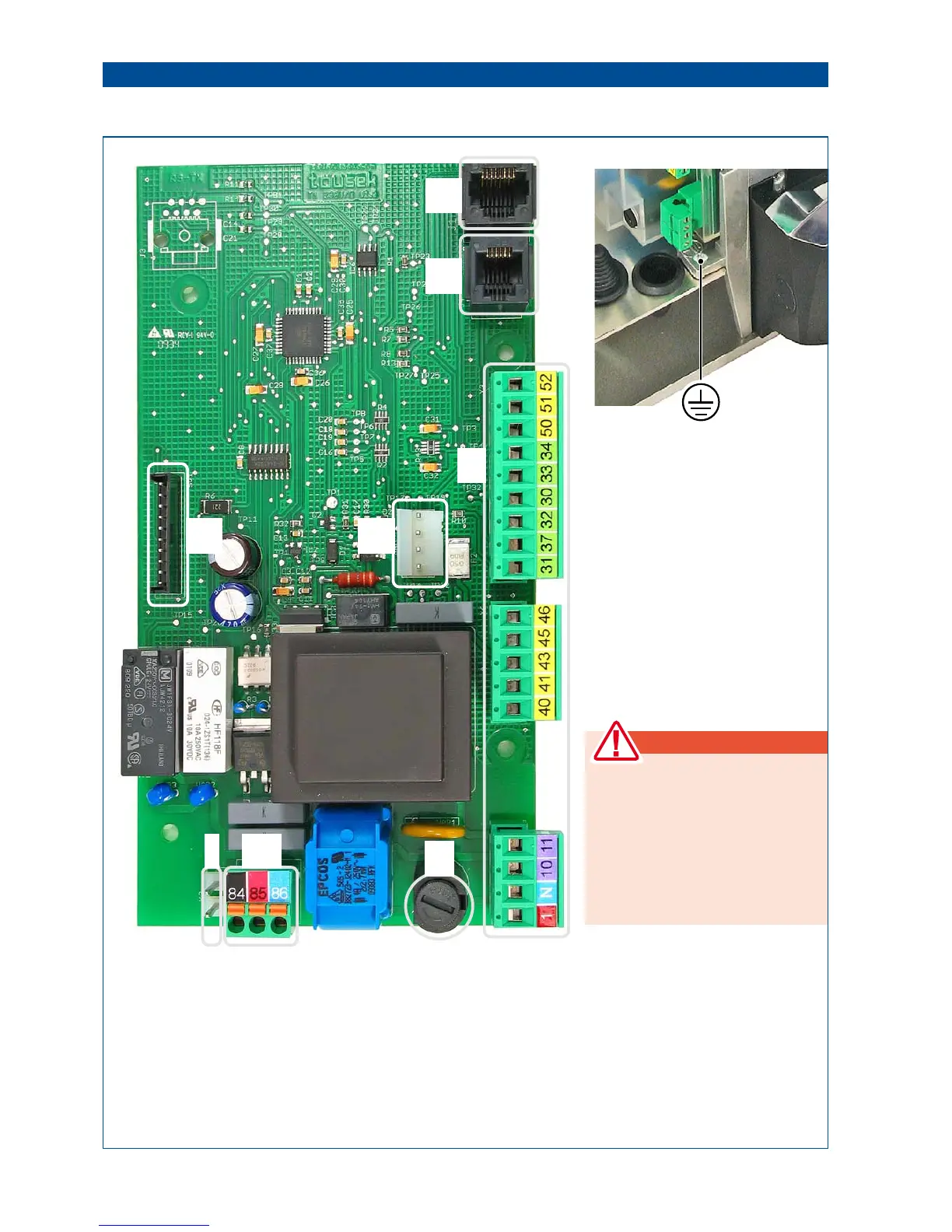

Overview of the control unit
Elements of control board
(K) Terminal blocks
(KM) Motor clamps
(C) Condenser plug
(S) Sensor plug
(D) Display plug
(FU) Slot for optional radio receiver
(see page 24 for connection)
(SZ) Connection slot for optional module
(see page 21)
(F) Safety fuse T 4A
3. Control board Sliding gate operator PULL T5, -T8, -T10
ground
connection
