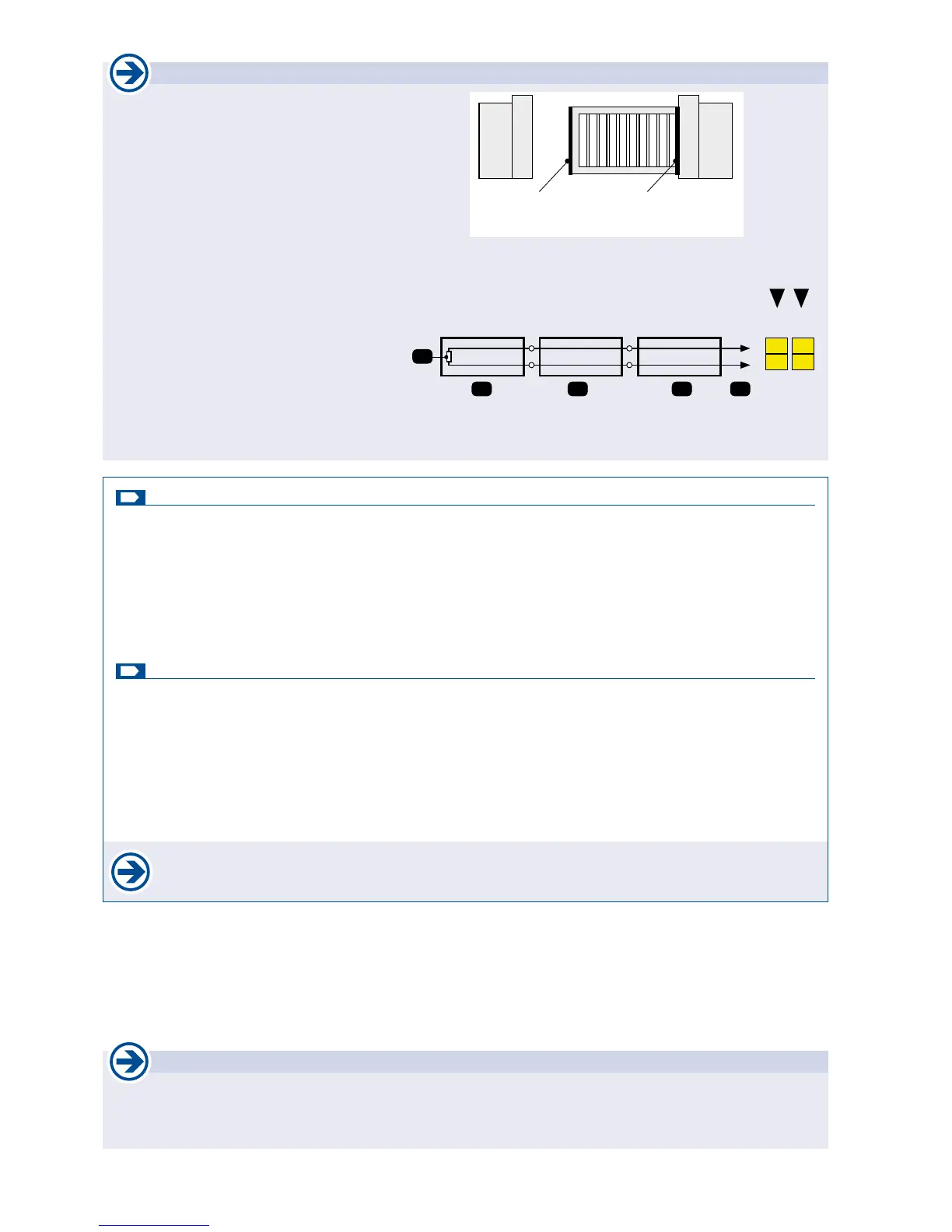

Safety sensing edges (main and side edge)
• OBSTACLE DETECTION: when a contact strip/safety
edge is triggered/activated then a change of direction is
effected for 1 second. After that the gate continues to move
in the changed direction.
Hence if safety edges have to react on obstacles in closing movement have to be serially connected
to the terminals of the main safety edge.
Safety edges that have to react on obstacles in opening movement have to be serially connected
to the terminals of the side safety edge.
Example: W 8,2kΩ nal resistance
1 nal edge
2+3 passage edge
S to control board
When connecting one safety edge a nal edge (1) has to be used.
Side safety sensing edge
Function:
safety during opening
Main safety sensing edge
Function:
Safety during closing
1
W
2 3 S
50
52
50
51
Main safety sensing edge
Side safety sensing edge
G
Main safety sensing edge (terminals 50/52) Safety
active: to be selected if the contact strip (8,2kOhm) of main safety sensing edge should be evaluated.
not active: to be selected if the contact strip of main safety sensing edge should NOT be evaluated
Radio transmission TX: to be selected if safety sensing edge (8,2kΩ) of main entrance edge should be evaluated
with the radio transmission system TX 310.
TX 400: to be selected if safety sensing edge (8,2kΩ) of main entrance edge should be evaluated with the system
TX 400i.
G
Side safety sensing edge (terminals 50/51) Safety
active: to be selected if the contact strip (8,2kOhm) of side safety sensing edge should be evaluated.
not active: to be selected if the contact strip of side safety sensing edge should NOT be evaluated.
Radio transmission TX: to be selected if safety sensing edge (8,2kΩ) of side entrance edge should be evaluated
with the radio transmission system TX 310.
TX 400: to be selected if safety sensing edge (8,2kΩ) of side entrance edge should be evaluated with the system
TX 400i.
Important
• IMPORTANT: during programming of motor the contact safety edges should not be triggered as this leads to
an error message - the limit stops have to be placed correspondingly.
