tousek / E_PULL-T5-T8-T10_49002305 / 19. 12. 2013 - 15 -
Activation of SYNC-function
• To activate the SYNC-function, the
plug-in bridges (J) in both photocell
transmitters have to be removed.
(see manual LS 41).
SYNC
J

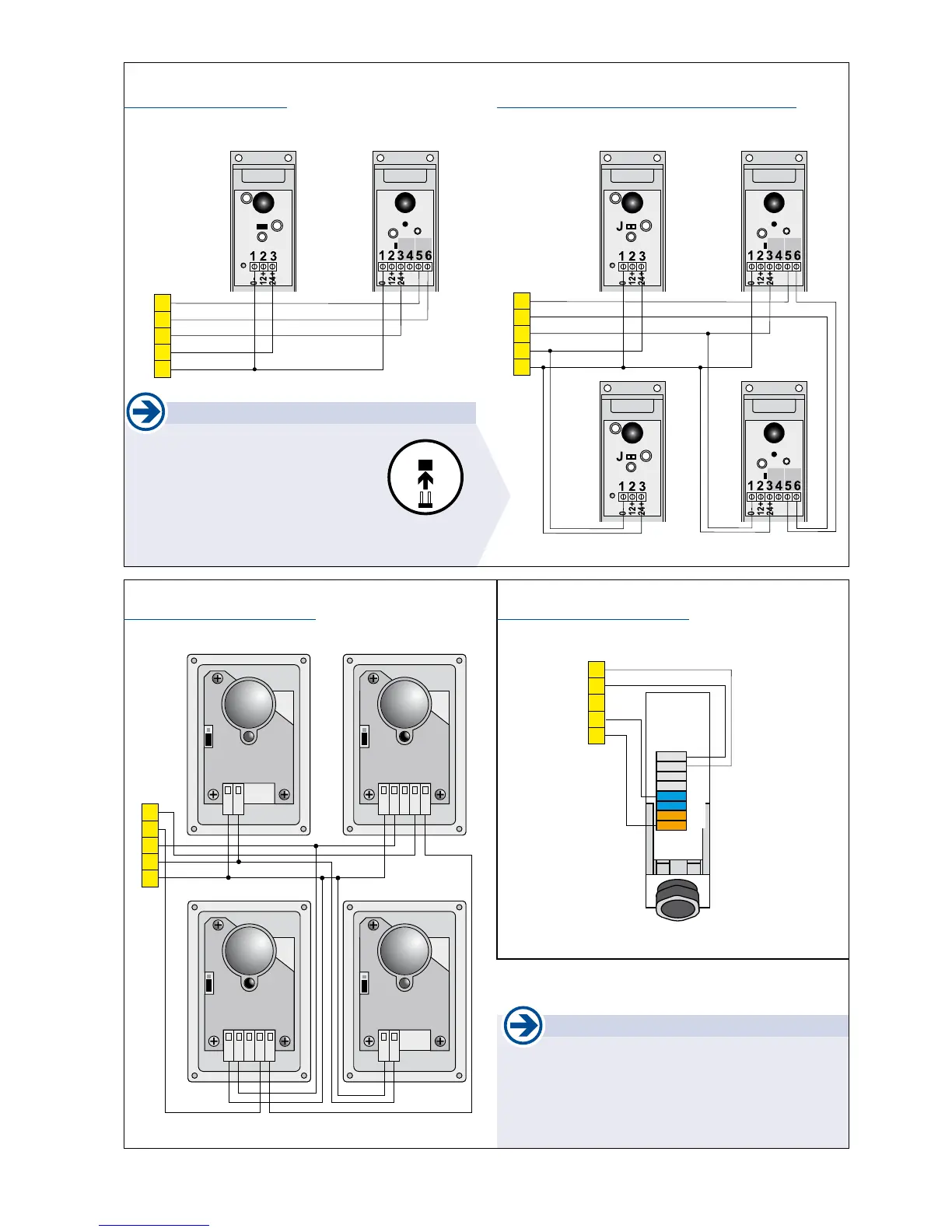

2 Photocells Tousek LS 41 as safety-
device with active SYNC-function
transmitter receiver
transmitter receiver
Photocell Tousek LS 41
as safety device
transmitter receiver
Important
• as the LS 45/2 has no SYNC-function, both photocell
transmitters and receivers must be mounted on dif-
ferent sides!
2 Photocells Tousek LS 45/2
as safety device
Photocells Tousek RLS 610
as safety device
46
45
43
41
40
24Va.c.
24–230V
a.c./d.c.
COM
NO
NC
COM
N.O. COM N.C.
46
45
43
41
40
N.O. COM N.C.
N.O. COM N.C.
46
45
43
41
40
1 2
+ -
~ ~
12/24V
1 2 3 4 5
+ -
~ ~
12/24V
1 2
+ -
~ ~
12/24V
1 2 3 4 5
+ -
~ ~
12/24V
46
45
43
41
40
transmitter 1 receiver 1
receiver 2 transmitter 2
NO NC COM
NO NC COM
