tousek PULL T5 - Safety Edge and Opening Direction Setup; Operation Mode and System Testing

tousek / E_PULL-T5-T8-T10_49002305 / 19. 12. 2013 - 27 -
5
conrm
additional options (with „-“ button):
 radio ege TX
 TX 400
7
5
6
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$

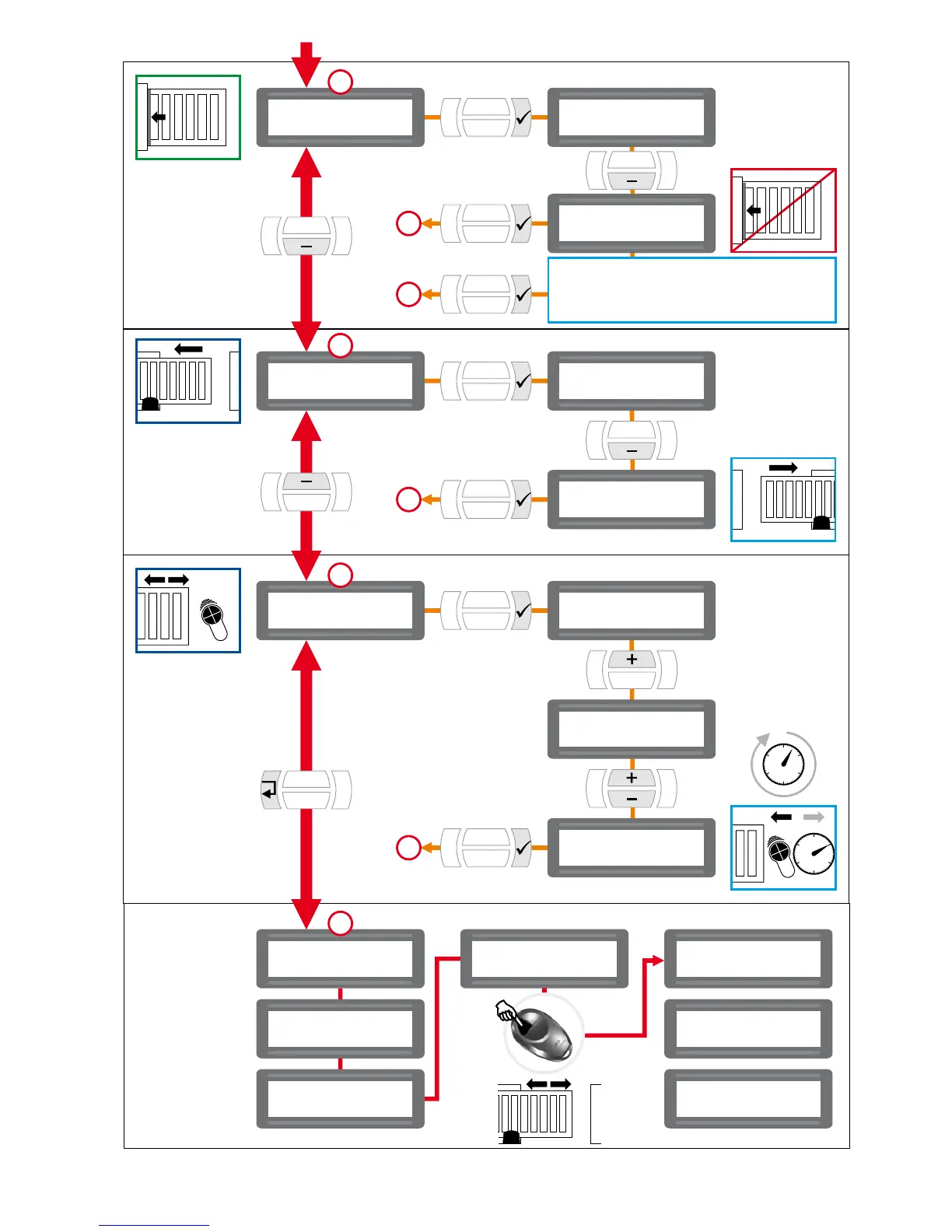

Side safety edge $$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
Side safety edge
active
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
Side safety edge
not active
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
Opening direct. $$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
Opening direct.
<<<--- left
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
Opening direct.
--->>> right
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
Operation mode $$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
Operation mode
Impulse mode
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
Operation mode
auto. close 5s
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
Operation mode
aut. close 10s
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
System test
Photocell
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
System test
Main safety edge
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
System test
Side safety edge
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
End positions
being detected
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
Open position
being detected
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
Close position
being detected
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
Ready for use
5
6
7
8
conrm
conrm
conrm
Time:
1–255s
e.g. 10s
change ? YES
change ? YES
change ? YES
