Chapter 1
Get to Know Your Devices

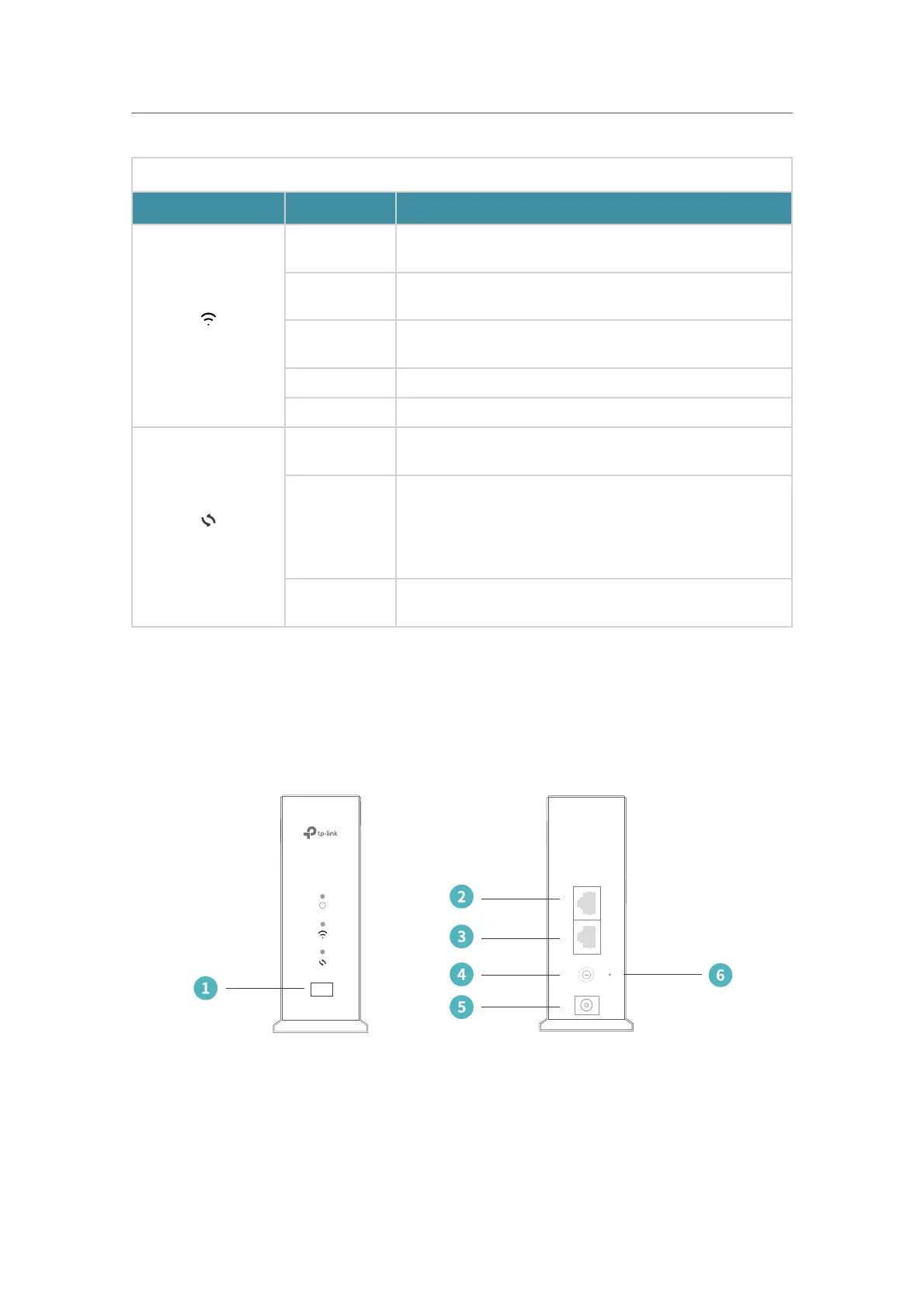

LED Explanation
Name Status Indication
(Wireless)
Flashing Green
The wireless function is enabled, and the device is in the
factory default state.
Solid Green
The wireless connection between Controller and Satellite is
successful, and the signal is strong.
Solid Orange
The wireless connection between Controller and Satellite is
successful, but the signal is weak.
Solid Red
Wireless connection between Controller and Satellite failed.
Off
The wireless function is disabled.
(Sync/WPS)
Flashing Green
A Satellite is trying to connect to the Controller via WPS. This
process may take up to 2 minutes.
Solid Green
A Satellite is trying to connect to the Controller via
synchronization. This process may take up to 2 minutes.
After successful connection, the LED will turn off. If the
synchronization fails, the LED will flash for about 10 seconds
and then turn off.
Off
No WPS/Sync in process or WPS/Sync process has
completed.
1. 2. 2. Buttons and Ports
Sync
WAN/LAN
LAN
Reset
ON/OFF
Power
