TD-VG3631 300Mbps Wireless N VoIP ADSL2+ Modem Router User Guide
94

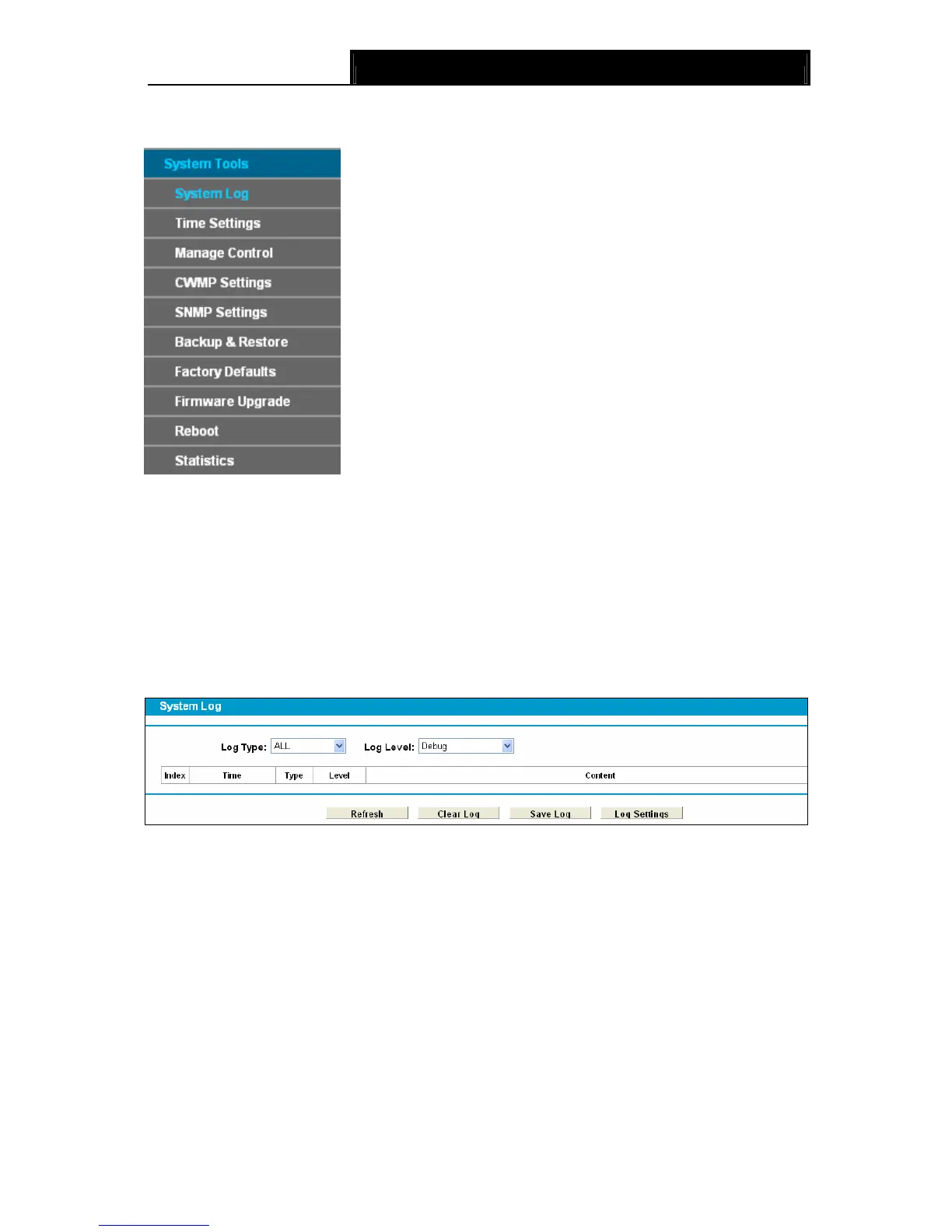

4.17 System Tools
Choose menu “System Tools”, and you can see the submenus under the main menu: System
Log, Time Settings, Manage Control, CWMP Settings, SNMP Settings, Backup & Restore,
Factory Defaults, Firmware Upgrade, Reboot and Statistics. Click any of them, and you will be
able to configure the corresponding function. The detailed explanations for each submenu are
provided below.
4.17.1 System Log
Choose menu “System Tools” → “System Log”, and then you can view the logs of the Modem
Router.
Figure 4-93
¾ Log Type: By selecting the log type, only logs of this type will be shown.
¾ Log Level: By selecting the log level, only logs of this level will be shown.
¾ Refresh: Refresh the page to show the latest log list.
¾ Clear Log: All the logs will be deleted from the Modem Router permanently, not just from the
page.
¾ Save Log: Click to save all the logs in a txt file.
¾ Log Settings: Click to set the logs in the screen (shown in Figure 4-94).

TP-Link TD-VG3631 Specifications

General

VPN support	PPTP, L2TP, IPSec
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Input current	1.5 A
Input voltage	12 V
Rack mounting	No
Frequency band	2.4 GHz
USB ports quantity	2
Management platform	HTTP/Telnet/CLI/SNMP/SSL
Filtering description	MAC / IP / Packet / URL
Compatible operating systems	Windows 98SE, NT, 2000, XP, Vista, 7\\r MAC OS\\r NetWare, UNIX, Linux
Ethernet LAN (RJ-45) ports	4
DHCP client	-
Routing protocols	RIP-1, RIP-2
Antenna connector type	RP-SMA
Antenna gain level (max)	5 dBi
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK
Certification	CE, FCC, RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45), Phone (RJ-11)

Weight and Dimensions

Depth	177 mm
Width	256 mm
Height	51 mm
Weight	- g
