TP-Link TD-VG3631 User Giude

TD-VG3631 300Mbps Wireless N VoIP ADSL2+ Modem Router User Guide
69
3) Input the PIN code according to the notification.
4) You can listen to all the new messages after the PIN code is validated.
Click Save to save your configurations.
Click Back to go back to the previous page, i.e. Figure 4-54.
4.8 USB Settings
There are six submenus under the USB Settings menu, USB Mass Storage, User Accounts,
Storage Sharing, FTP Server, Media Server and Print Server. Click any of them, and you will be
able to configure the corresponding function.
4.8.1 USB Mass Storage
Choose menu “USB Settings” → “USB Mass Storage”, you can configure a USB disk drive
attached to the Modem Router and view volume and share properties such as share name,
capacity, status, and action, etc on this page as shown below.

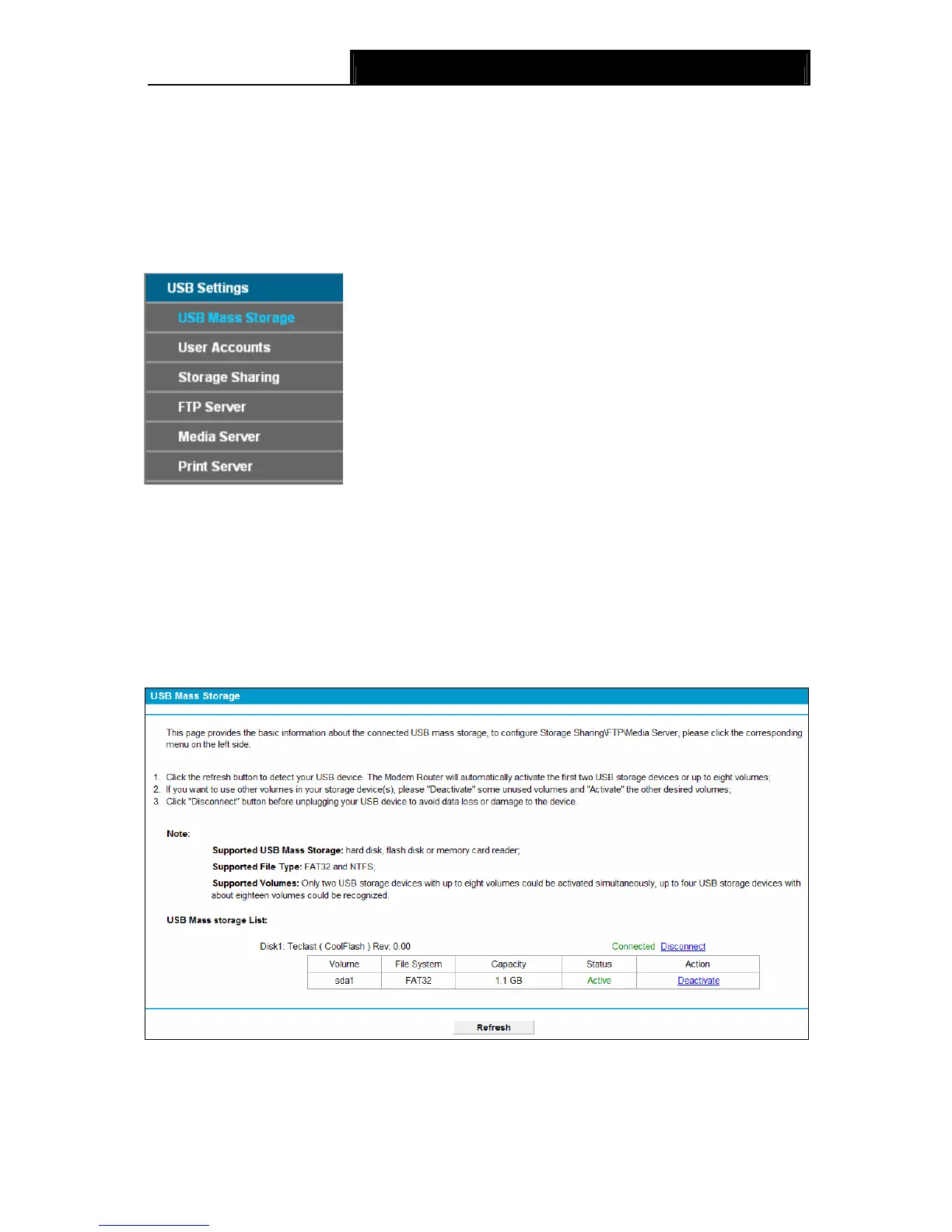

Figure 4-56
¾ Volume: The volume name of the USB drive the users have access to.
¾ File System: The system of the USB drive.

TP-Link TD-VG3631 Specifications

General

VPN support	PPTP, L2TP, IPSec
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Input current	1.5 A
Input voltage	12 V
Rack mounting	No
Frequency band	2.4 GHz
USB ports quantity	2
Management platform	HTTP/Telnet/CLI/SNMP/SSL
Filtering description	MAC / IP / Packet / URL
Compatible operating systems	Windows 98SE, NT, 2000, XP, Vista, 7\\r MAC OS\\r NetWare, UNIX, Linux
Ethernet LAN (RJ-45) ports	4
DHCP client	-
Routing protocols	RIP-1, RIP-2
Antenna connector type	RP-SMA
Antenna gain level (max)	5 dBi
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK
Certification	CE, FCC, RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45), Phone (RJ-11)

Weight and Dimensions

Depth	177 mm
Width	256 mm
Height	51 mm
Weight	- g
