TD-VG3631 300Mbps Wireless N VoIP ADSL2+ Modem Router User Guide
67
in Black List and 2224 in White List, with Black List mode enabled, incoming call number 2224510
will be allowed.
4.7.8 USB Voice Mail
Choose “Voice”Æ“USB Voice Mail“, you will see the screen as shown in Figure 4-54. USB Voice
mail is used to record voice messages when the call is not answered. To use this function, please
make sure an external USB hard drive/USB flash disk with configure files has been plugged into
the USB port on the Modem Router. For details about how to configure USB devices for USB
Voice Mail function, please refer to Quick Installation Guide or T5 in Appendix B:
Troubleshooting.

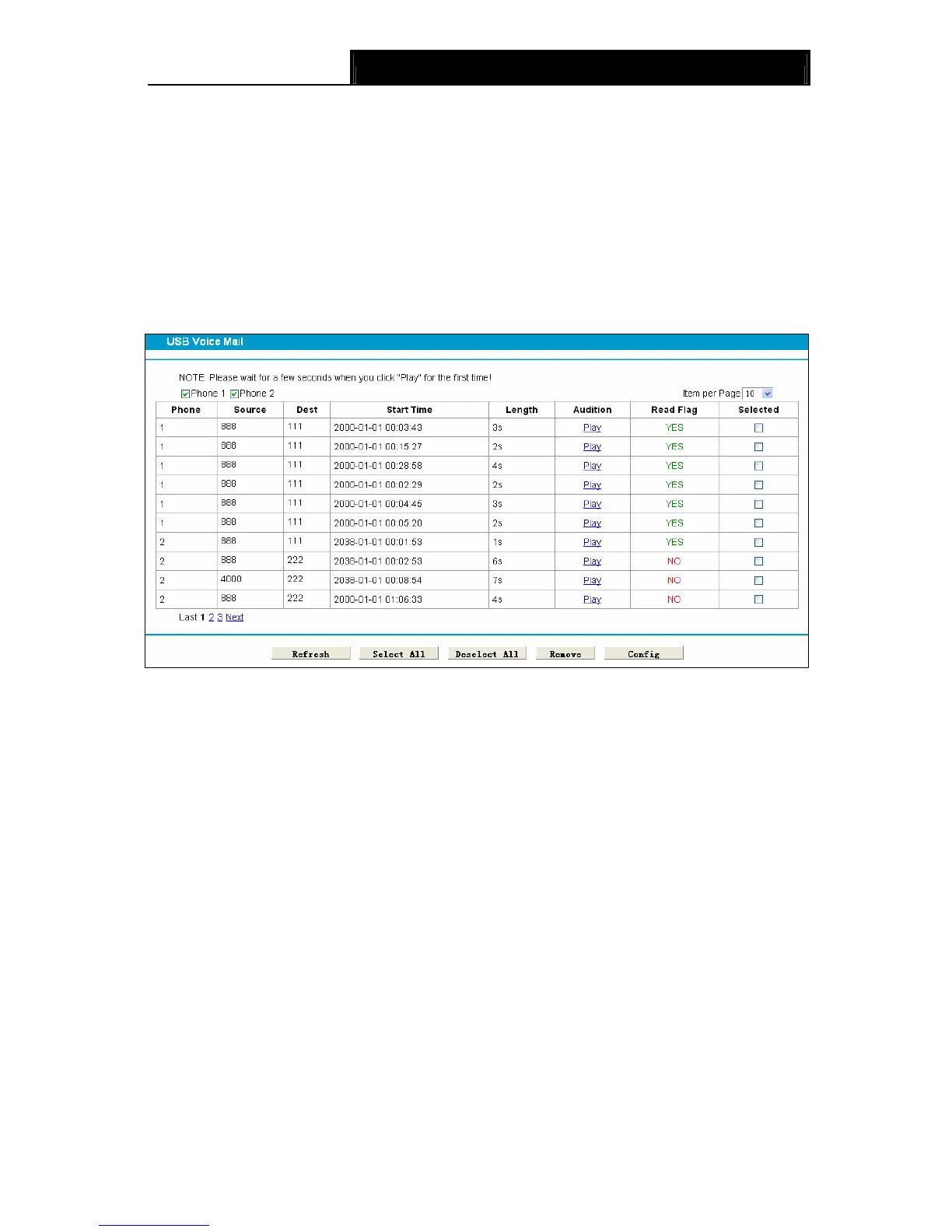

Figure 4-54
¾ Phone: Displays the phone that has voice message.
¾ Source: Displays the source of the voice message, i.e. the remote caller account.
¾ Dest: Displays the destination of the voice message, i.e. the local account.
¾ Start Time: Displays when the voice message starts.
¾ Length: Displays how long the voice message is.
¾ Audition: Click Play to listen to the voice message.
¾ Read Flag: Displays whether the voice message has been read or not.
¾ Selected: Check the box to select the corresponding voice message.
To refresh the web page, click Refresh button.
To delete a voice message, check the Selected box and then click Remove button.
To configure the USB Voice Mail, click Config button to enter the web page as shown in Figure
4-55.

TP-Link TD-VG3631 Specifications

General

VPN support	PPTP, L2TP, IPSec
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Input current	1.5 A
Input voltage	12 V
Rack mounting	No
Frequency band	2.4 GHz
USB ports quantity	2
Management platform	HTTP/Telnet/CLI/SNMP/SSL
Filtering description	MAC / IP / Packet / URL
Compatible operating systems	Windows 98SE, NT, 2000, XP, Vista, 7\\r MAC OS\\r NetWare, UNIX, Linux
Ethernet LAN (RJ-45) ports	4
DHCP client	-
Routing protocols	RIP-1, RIP-2
Antenna connector type	RP-SMA
Antenna gain level (max)	5 dBi
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK
Certification	CE, FCC, RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45), Phone (RJ-11)

Weight and Dimensions

Depth	177 mm
Width	256 mm
Height	51 mm
Weight	- g
